F-111 Swing Wing

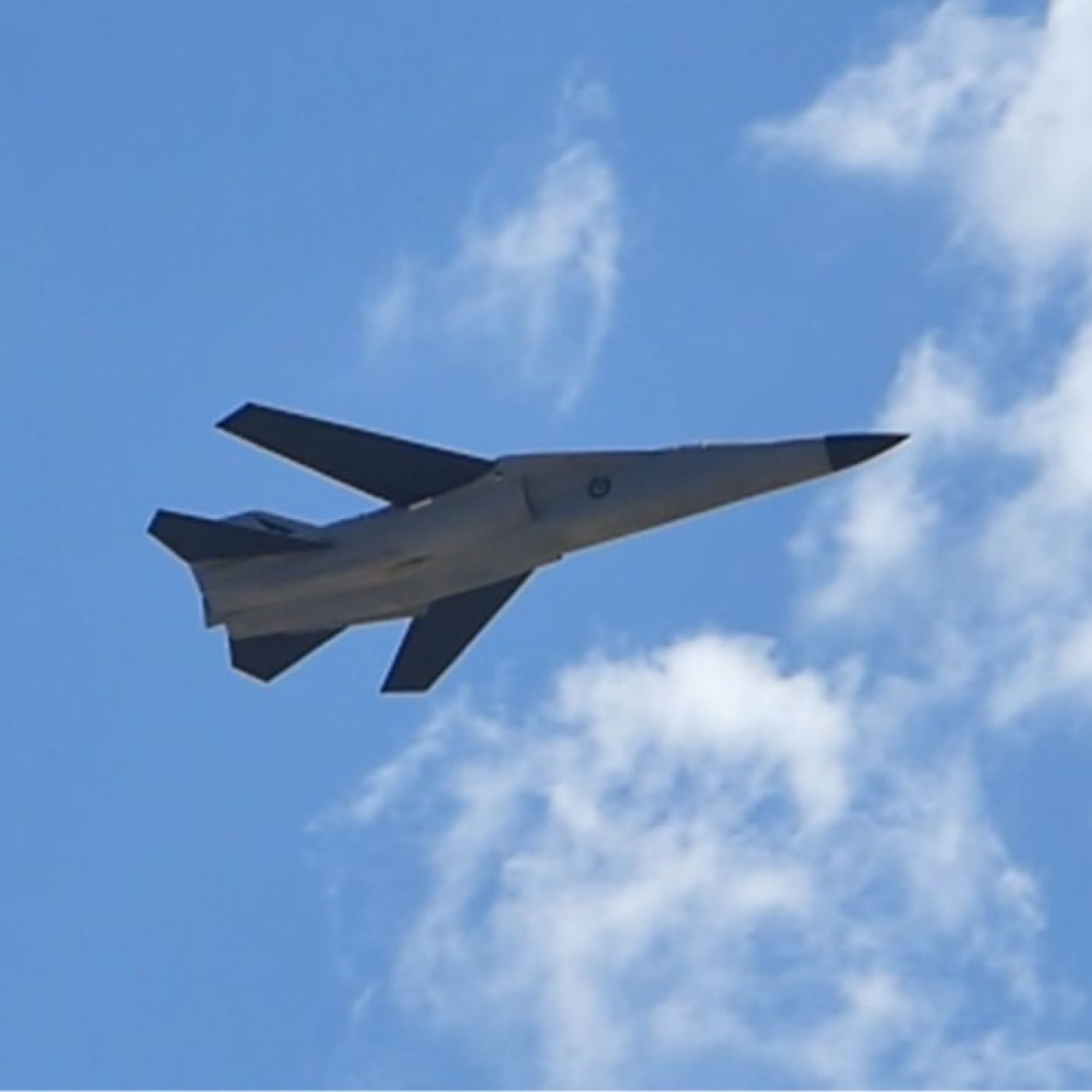

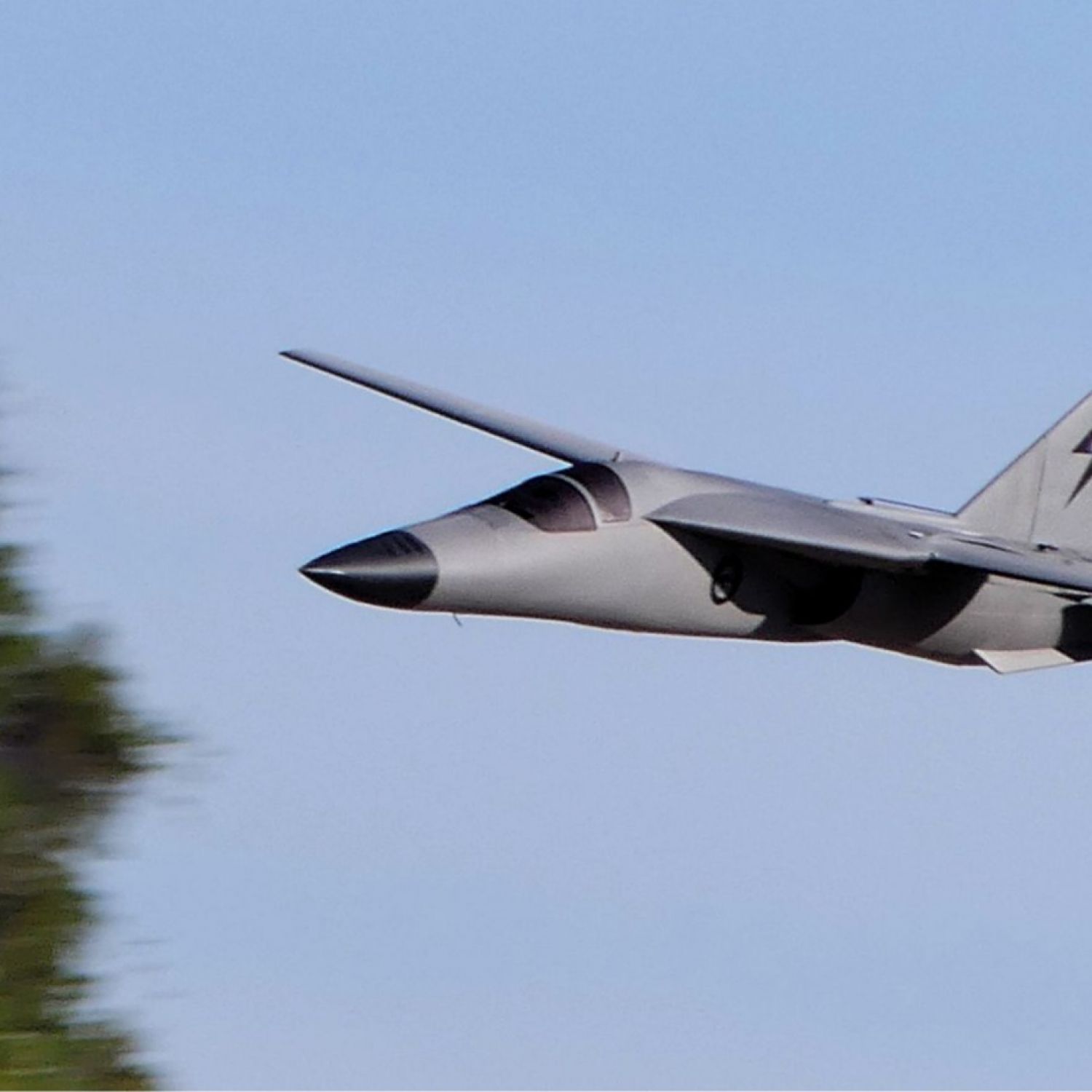

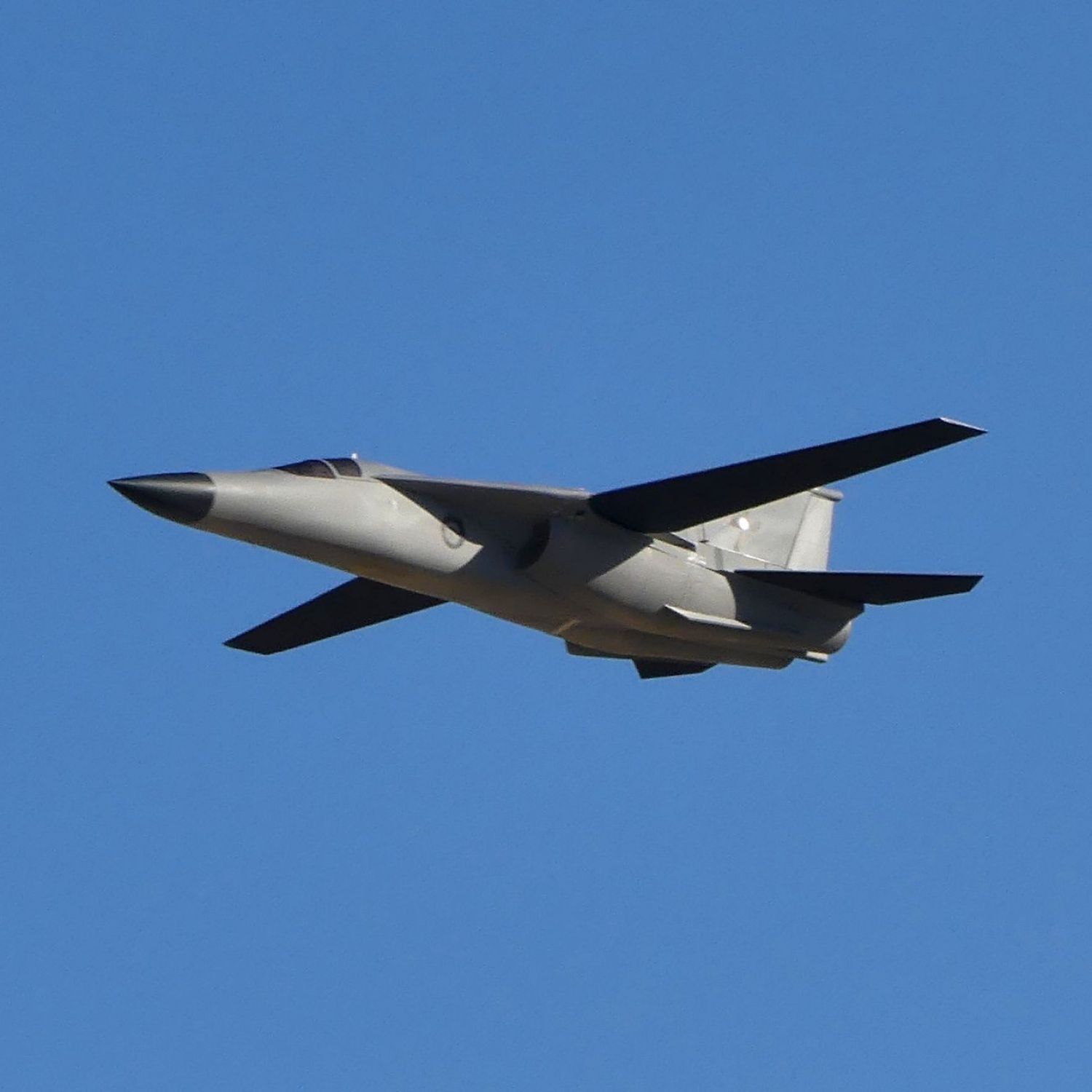

This RC flight tested replica of the General Dynamics F-111 Aardvark "Pig" is designed for easy construction and can be printed using lightweight PLA (LW-PLA), often utilising Spiral or Vase mode to improve print quality and speed. Not recommended as your first 3D Plane build, try something like my free FJ-4 Fury first for example.
Designed the 64mm Electric Ducted Fans, this model has a working Swing Wing and is PROVIDED WITH 2 OPTIONS, one for catapult launching and the other with full retractable landing gear. Utilizing a minimum of 4 RC channels (x2 Elevons, Throttle, SwingWing) this model is easy to handle for those used to EDF power models.
Suits 3D Printer with minimum Bed size of approx; 220mm square or 300mm round.
SPECS
1200mm span (47in)
1350mm length
64mm EDF power unit
3S-6S Battery

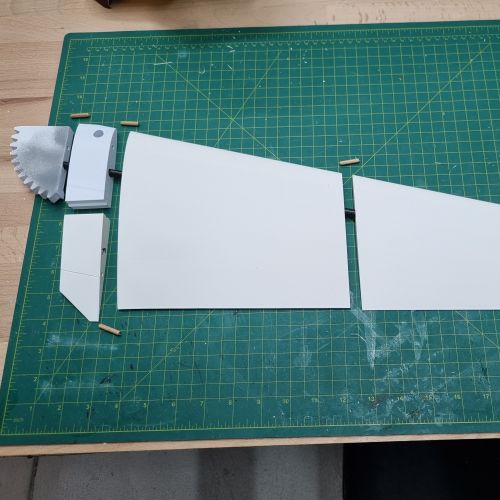

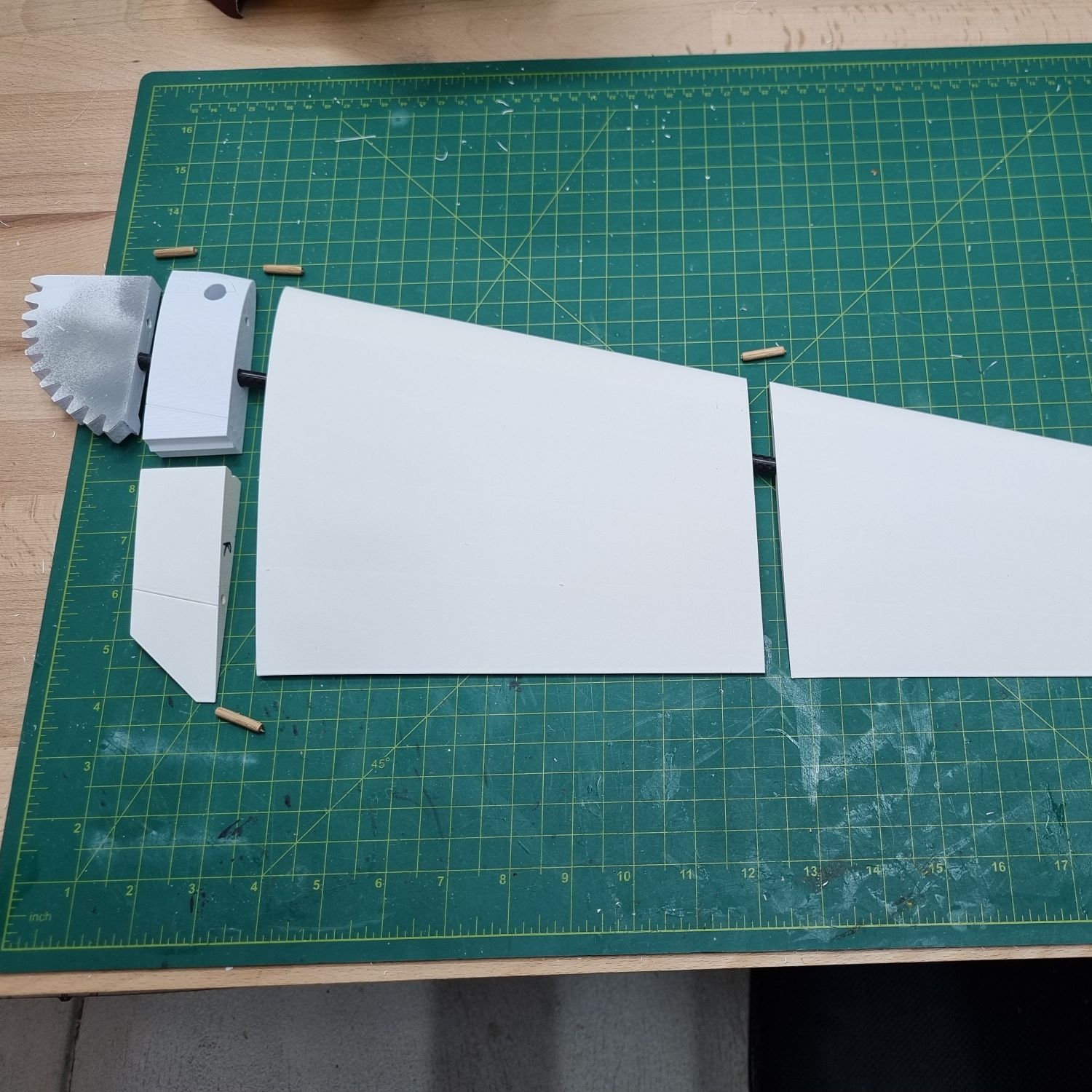

Servo driven Swing-Wing mechanism
Elevon control w/ optional Rudder

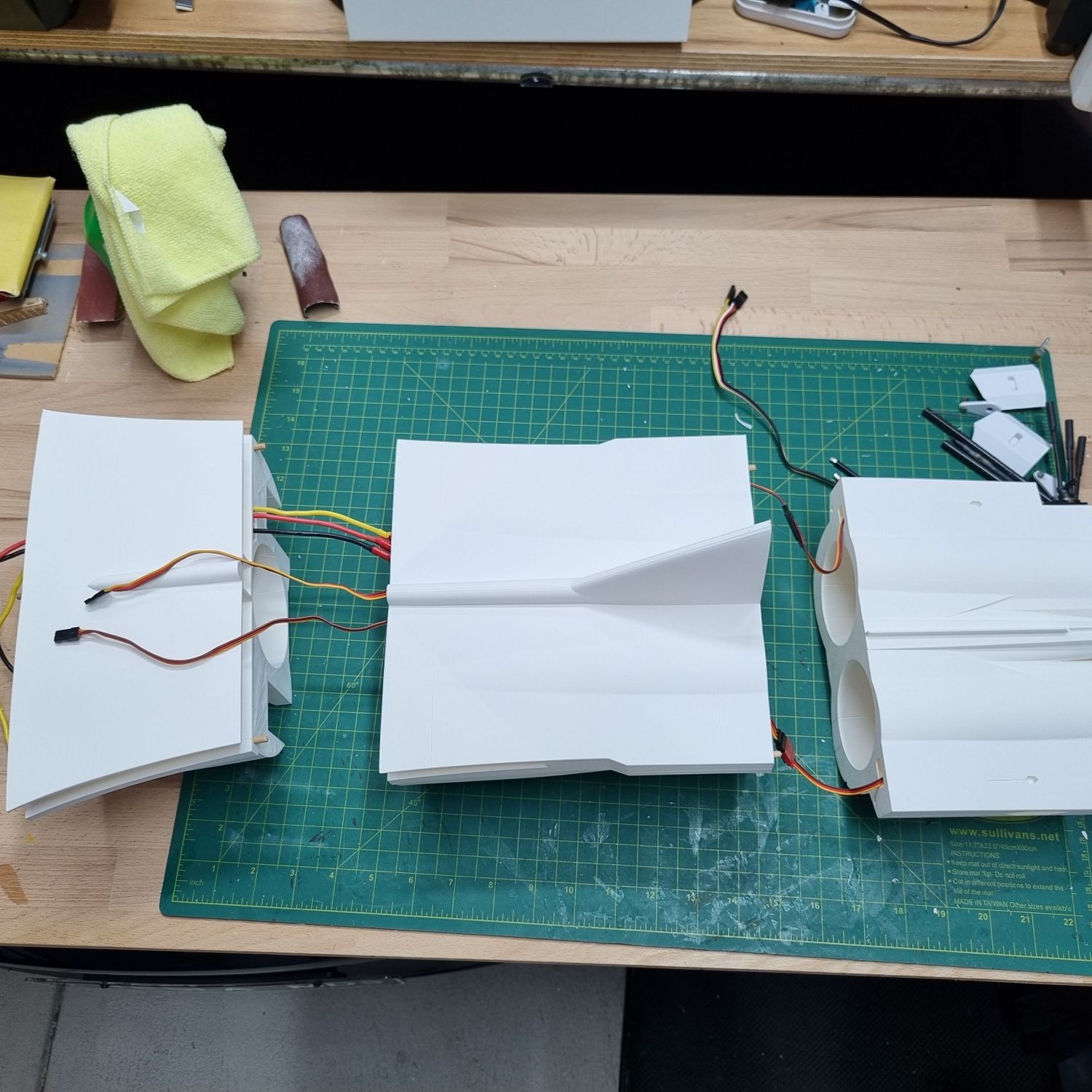

LW-PLA for most of model, PLA+ for select
Optimised for Spiral / Vase print mode
2 Versions included
No undercarriage : ~1kg AUW for 3S Battery+

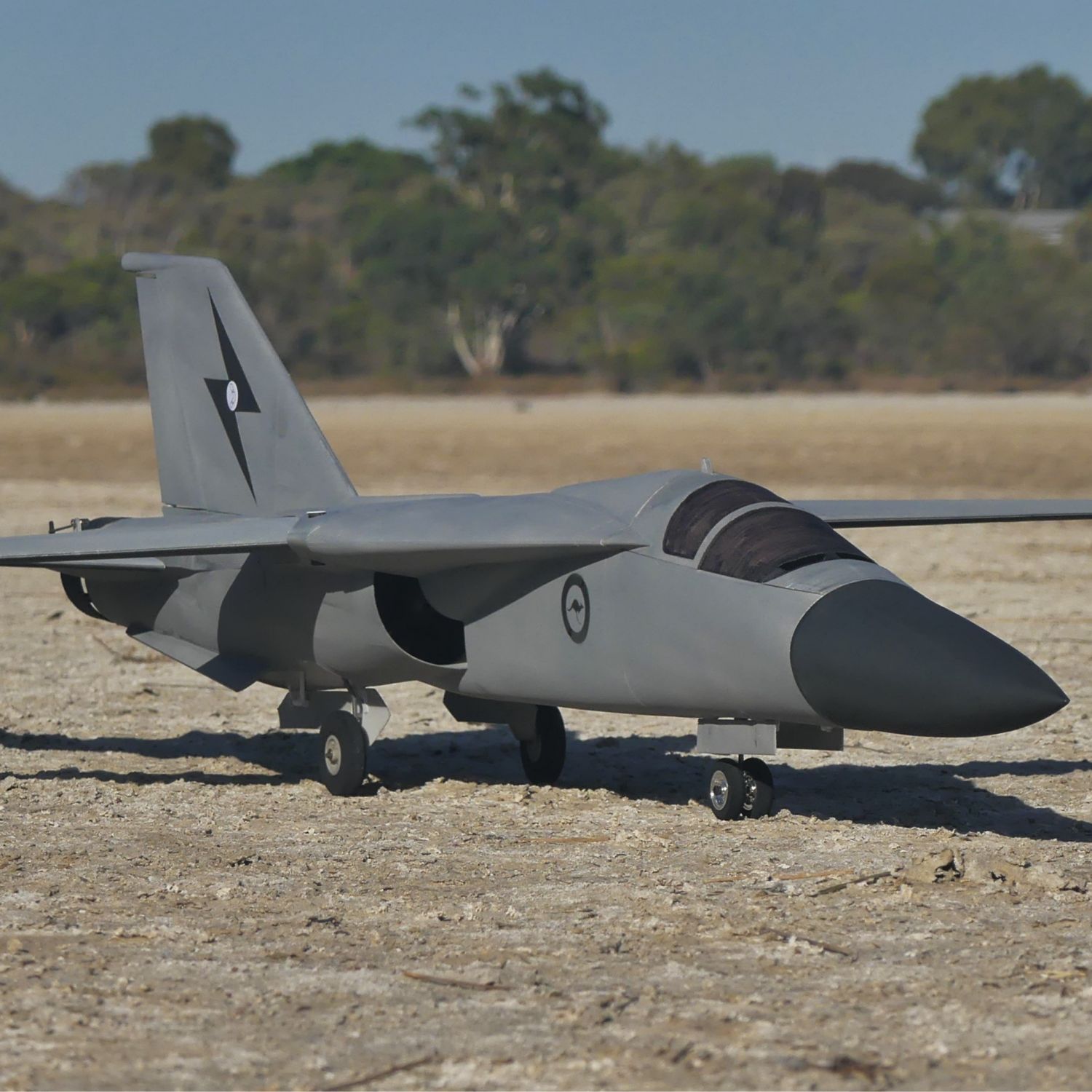

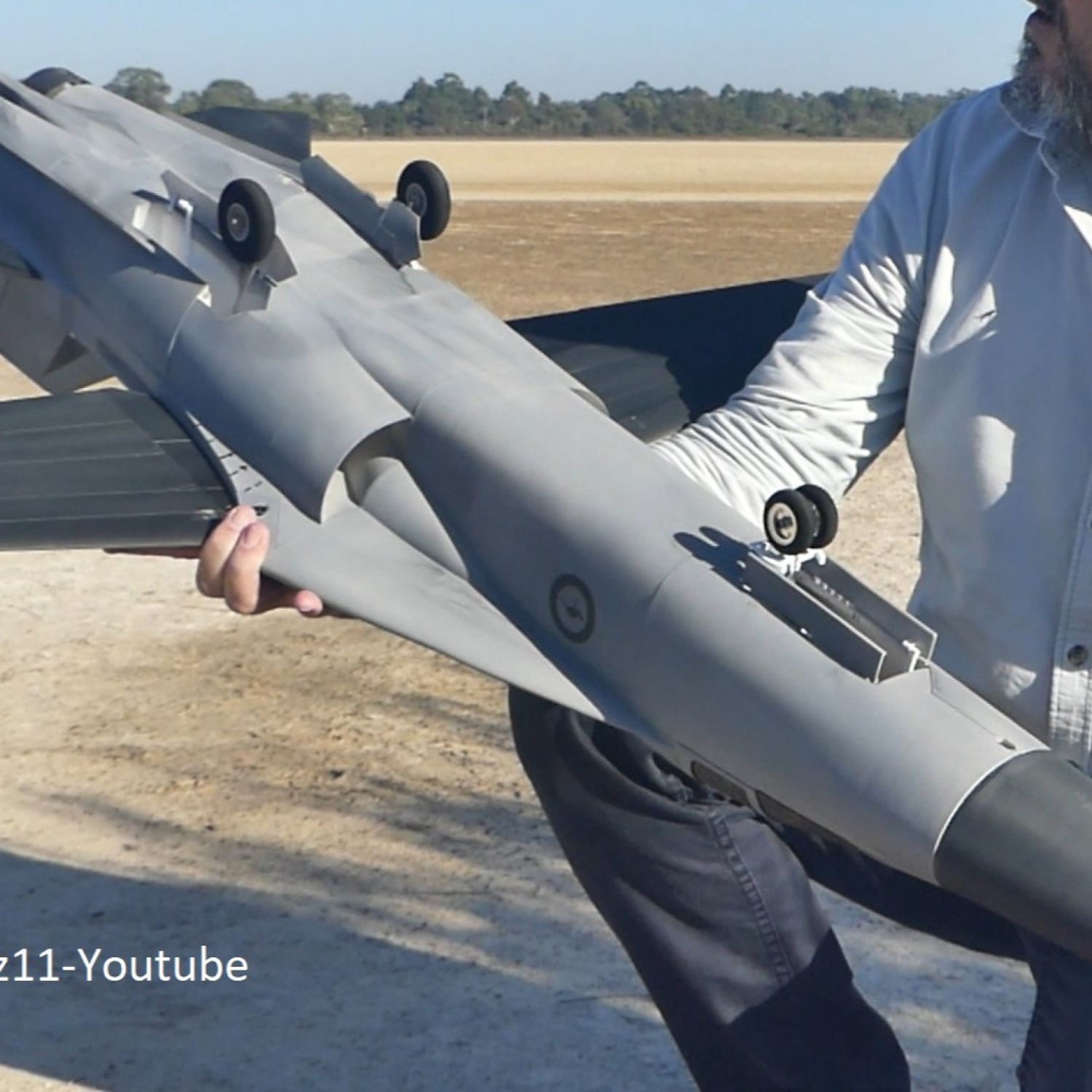

With Undercarriage : ~1.7kg AUW for 4S Battery+

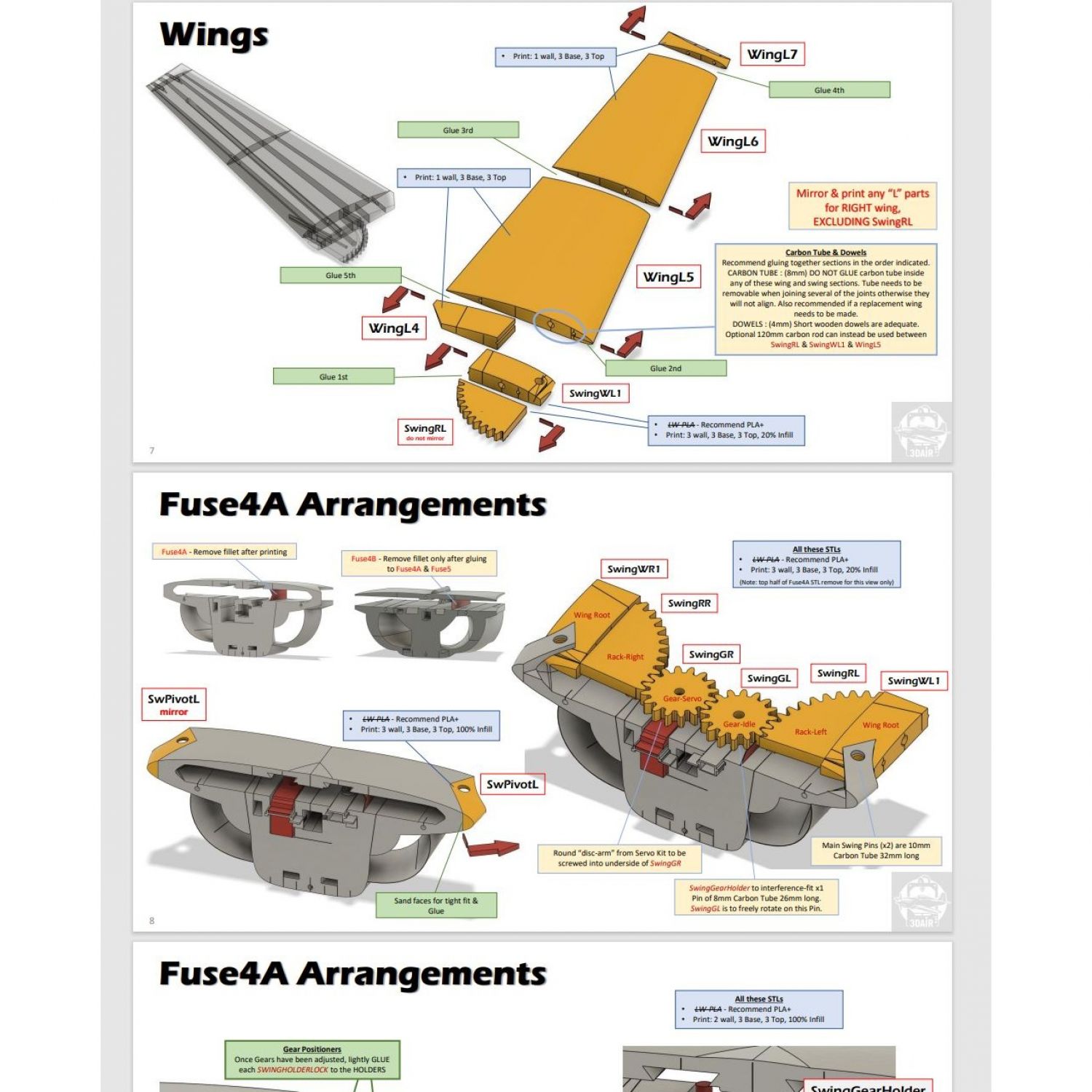

contains copy of Full Assembly Manual
More build & fly detail available here;
LW-PLA - Typical
0.4 nozzle / 0.4 width
0.2 layer height
0.6 Extrusion Multiplier
250°C nozzle / 60°C bed
First Layer: 200% height & Width
No Retraction, No Cooling
LW-PLA-HT
0.4 nozzle / 0.4 width
0.25 layer height
0.65 Extrusion Multiplier
230°C nozzle / 60°C bed
First Layer: 200% height & Width
No Retraction, 33% Cooling
