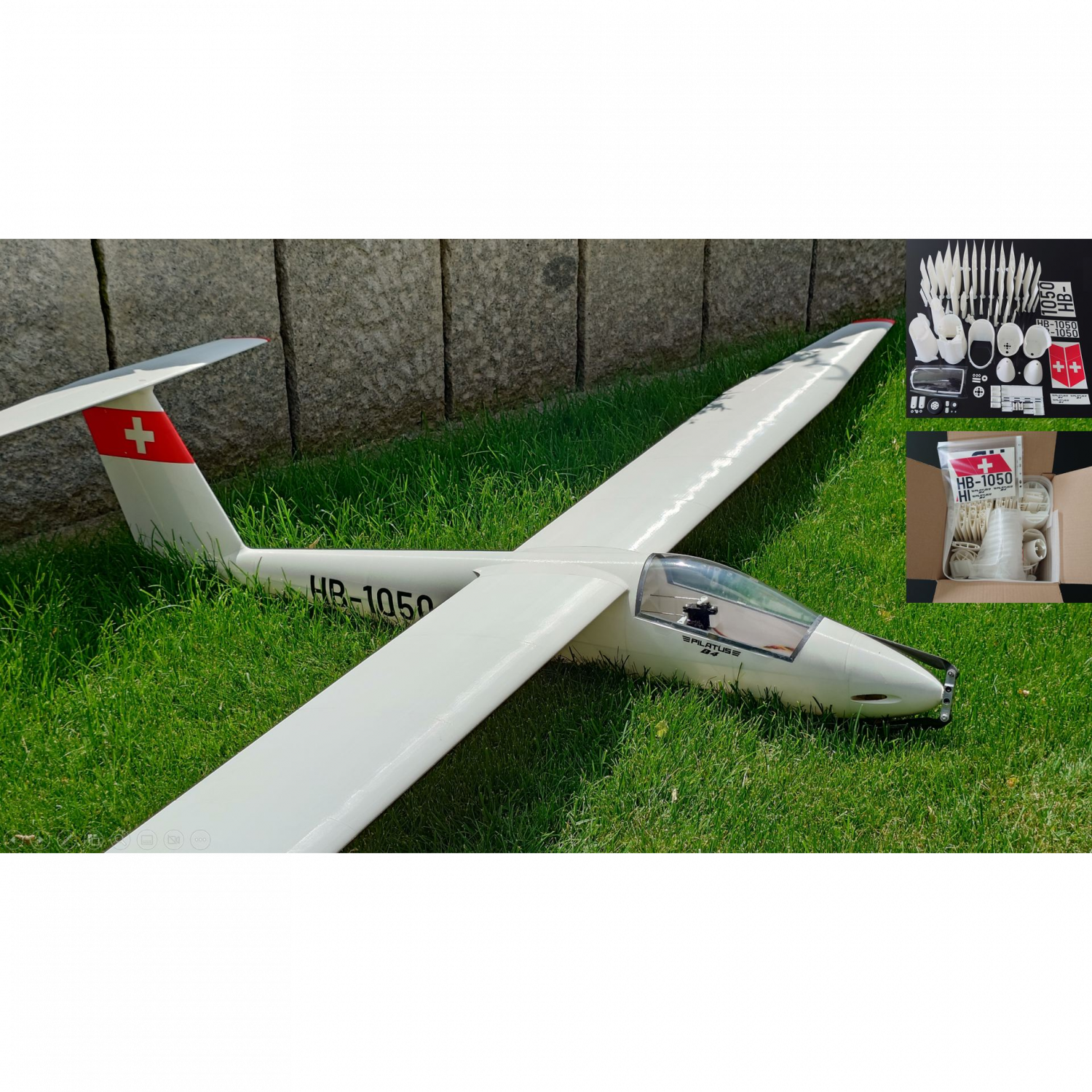

Pilatus B4
one of the most famous and
beautiful aerobatic gliders
Printed Parts
Don't want to care about printing all parts on your own?
Impatient to start assembling the plane as soon as possible?
Your printer is still busy with other fancy stuff?
Or simply interested in high quality printed parts?
Whatever reason you may have - here is the solution!

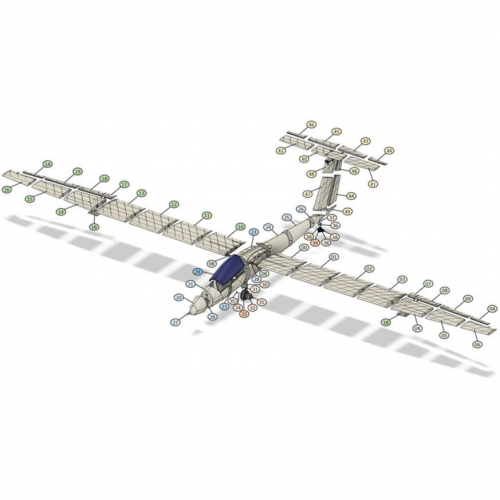

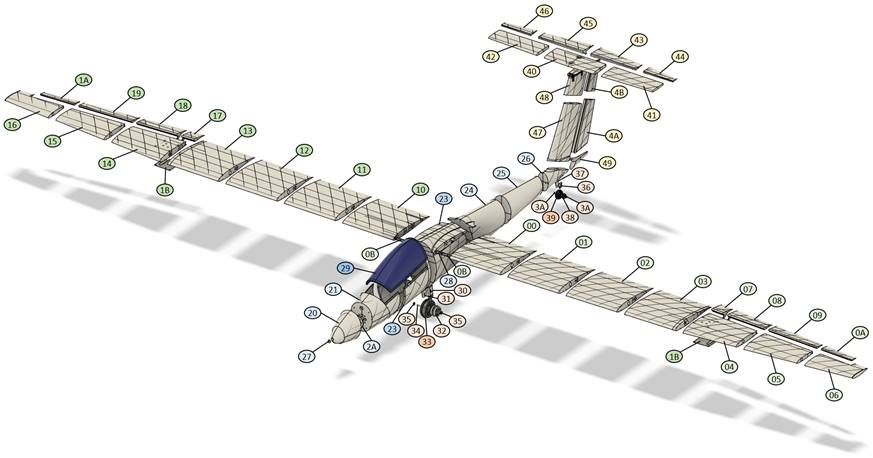

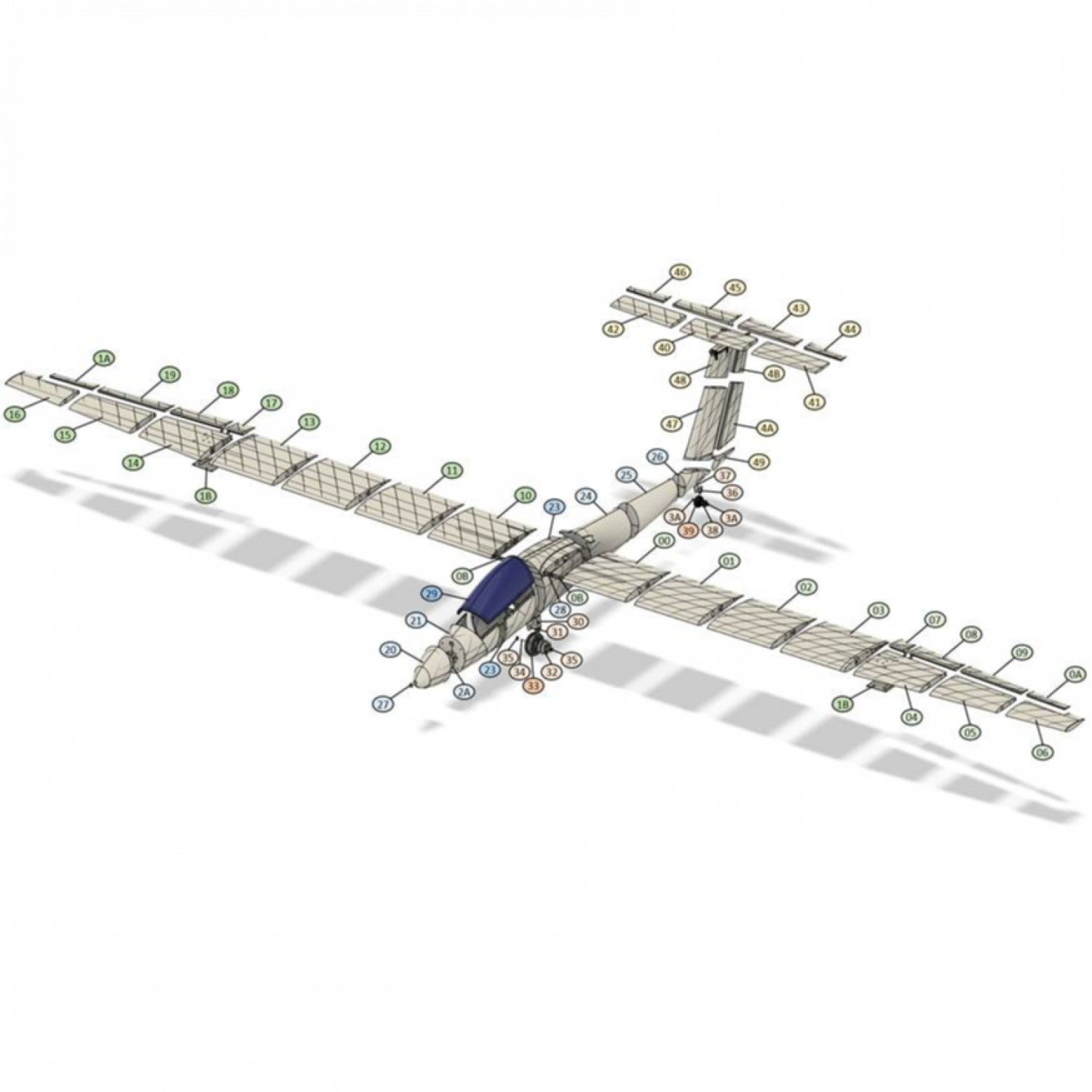

Figure 1: Exploded view with labeled print parts
|
Parameter |
3D-printed Pilatus B4 |
Searching for more information? |
|
Scale: |
1 : 6.5 |
Design files & print parts: https://rc3dmarket.com/3dprcfun Quality of printed parts: https://youtu.be/Ef-Et6nW3RE User guide: Pilatus-B4-User-Guide-v1.1.pdf Step-by-step video assembly guide: https://youtu.be/3rZBPiRgw2Q 3D printed Pilatus B4 in action: https://youtu.be/ta9pJJYLdu4 RC groups thread: Pilatus-B4-Aerobatic-Glider-Scale-1-6-5
|
|
Wingspan: |
2308 mm |
|
|
Length: |
1011 mm |
|
|
Empty weight: |
~1100 g |
|
|
Takeoff weight: |
[1350…2000] g |
|
|
Wing area: |
37.7 dm2 |
|
|
Wing load: |
[35.81…53.04] g/dm2 |
|
|
Control: |
radio, 4-5 channels |
What you get
The printed parts package includes all printable parts (PLA, TPU) of the Pilatus B4 including two nose options (glider / tow release and engine), an optional part to mount your individual engine, and a set of holders for servos and battery. You save at least 135 hours of valuable time needed to print 93 parts with a total weight of approximately 1kg.
The related design files for printing (STL, project, gcode, decal) can be purchased separately here.
For optimal results, the models are printed with custom developed print profiles. 99% of the parts are printed in bio-degradable PLA with minimal waste and no involvement of toxic chemicals. Please note that a certain surface roughness and tiny imperfections are inevitable due to the underlying FDM printing process. The print quality can be visually inspected in this video.
Please note that additional material is needed to assemble this airplane. A complete list is given in this user guide.
This product contains small parts. It is not a toy and not suitable for children under 14 years.
|
Amount |
Material |
Project |
Part name |
Idx |
Weight |
|
1 |
White PLA |
wing-left-part1
weight: ~143g |
wing-inner-0-l wing-inner-1-l wing-outer-0-l wing-outer-1-l wing-clip-male (2x) |
00 01 04 05 0B |
48 g 42 g 29 g 22 g 2 g |
|
1 |
White PLA |
wing-left-part2
weight: ~120g |
wing-inner-2-l wing-inner-3-l wing-outer-2-l aileron-0-l aileron-1-l aileron-2-l aileron-3-l |
02 03 06 07 08 09 0A |
42 g 44 g 14 g 3 g 7 g 7 g 3 g |
|
1 |
White PLA |
wing-right-part1
weight: ~ 145g |
wing-inner-0-r wing-inner-1-r wing-outer-0-r wing-outer-1-r servo-cover (2x) |
10 11 14 15 1B |
48 g 42 g 29 g 22 g 4 g |
|
1 |
White PLA |
wing-right-part2
weight: ~120g |
wing-inner-2-r wing-inner-3-r wing-outer-2-r aileron-0-r aileron-1-r aileron-2-r aileron-3-r |
12 13 16 17 18 19 1A |
42 g 44 g 14 g 3 g 7 g 7 g 3 g |
|
1 |
White PLA |
fuselage-part1
weight: ~131g |
fuselage-0 fuselage-1 fuselage-4 fuselage-5 fuselage-6 fuselage-nose-cutout wing-clip-female (3x) engine-mount-wedge (optional) wing-clip-test (optional) |
20 21 24 25 26 27 28 2A 2B |
20 g 38 g 32 g 24 g 11 g <1 g 1 g 2 g 2 g |
|
1 |
White PLA |
fuselage-part2
weight: ~106g |
fuselage-2 fuselage-3 |
22 23 |
33 g 73 g |
|
1 |
Trans-parent light blue PLA |

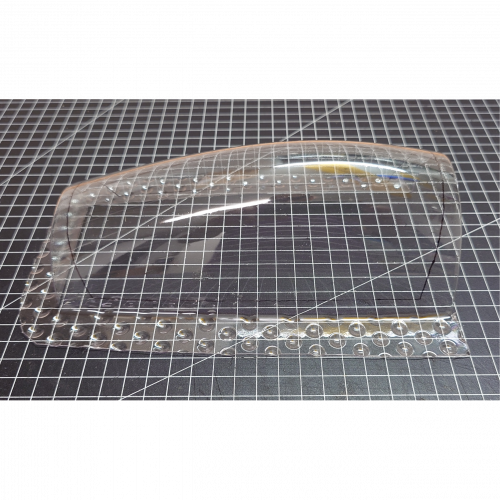

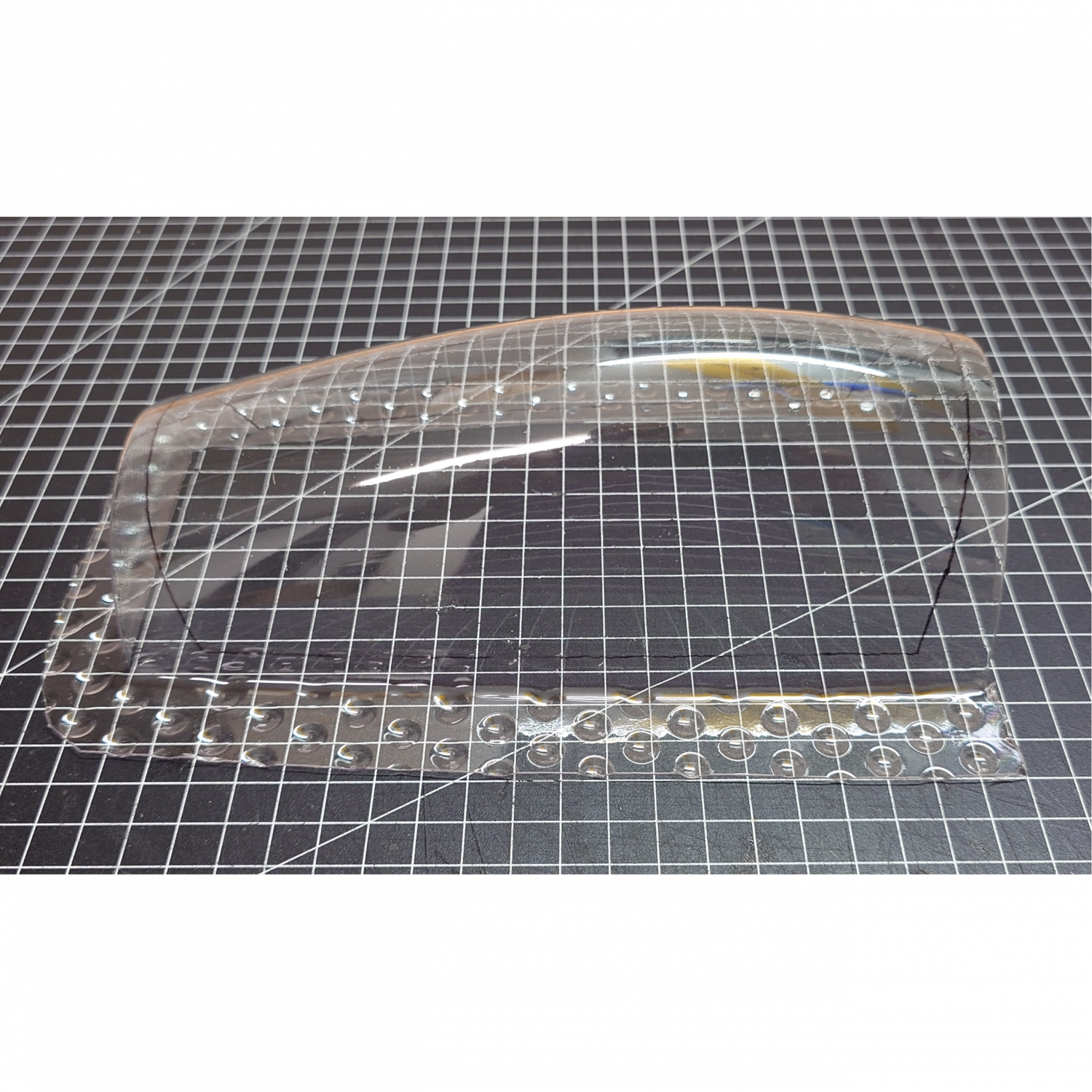

canopy
weight: ~16g |
canopy |
29 |
16 g |
|
1 |
White PLA |
wheels (optional)
weight: ~10g |
main-wheel-axle-bearing-l main-wheel-axle-bearing-r main-wheel-rim main-wheel-axle main-wheel-washer (2x) tail-wheel-axle-bearing-l tail-wheel-axle-bearing-r tail-wheel-rim tail-wheel-washer (2x) |
30 31 32 34 35 36 37 38 3A |
3 g 3 g 4 g <1 g <1 g <1 g <1 g 1 g <1 g |
|
1 |
Black TPU |
tires (optional)
weight: ~9g |
main-wheel-tire tail-wheel-tire |
33 39 |
7 g 2 g |
|
1 |
White PLA |
tail
weight: ~119g |
hori-stabilizer-middle hori-stabilizer-l hori-stabilizer-r elevator-0-l elevator-1-l elevator-0-r elevator-1-r vert-stabilizer-lower vert-stabilizer-upper rudder-lower rudder-middle rudder-upper |
40 41 42 43 44 45 46 47 48 49 4A 4B |
16 g 12 g 12 g 8 g 3 g 8 g 3 g 23 g 15 g 3 g 10 g 5 g |
|
1 |
White PLA |
fuselage-alternatives (optional)
weight: ~61g |
fuselage-0-engine fuselage-1-no-drilling
|
20-1 21-1 |
21 g 40 g |
|
1 |
White PLA |
holders (optional)
weight: ~33g |
battery-receiver-holder-0 (4x) battery-receiver-holder-1 (8x) servo-holder-DS843MG-fuselage (2x) servo-holder-DS843MG-wing-bottom (2x) servo-holder-DS843MG-top (2x) servo-holder-DS939MG-fuselage (2x) servo-holder-DS939MG-wing-l (2x) servo-holder-DS939MG-wing-r (2x) servo-holder-DS939MG-top (2x) |
50 51 52 53 54 55 56 57 58 |
11 g 2 g 4 g 4 g 1 g 5 g 2 g 2 g 2 g |

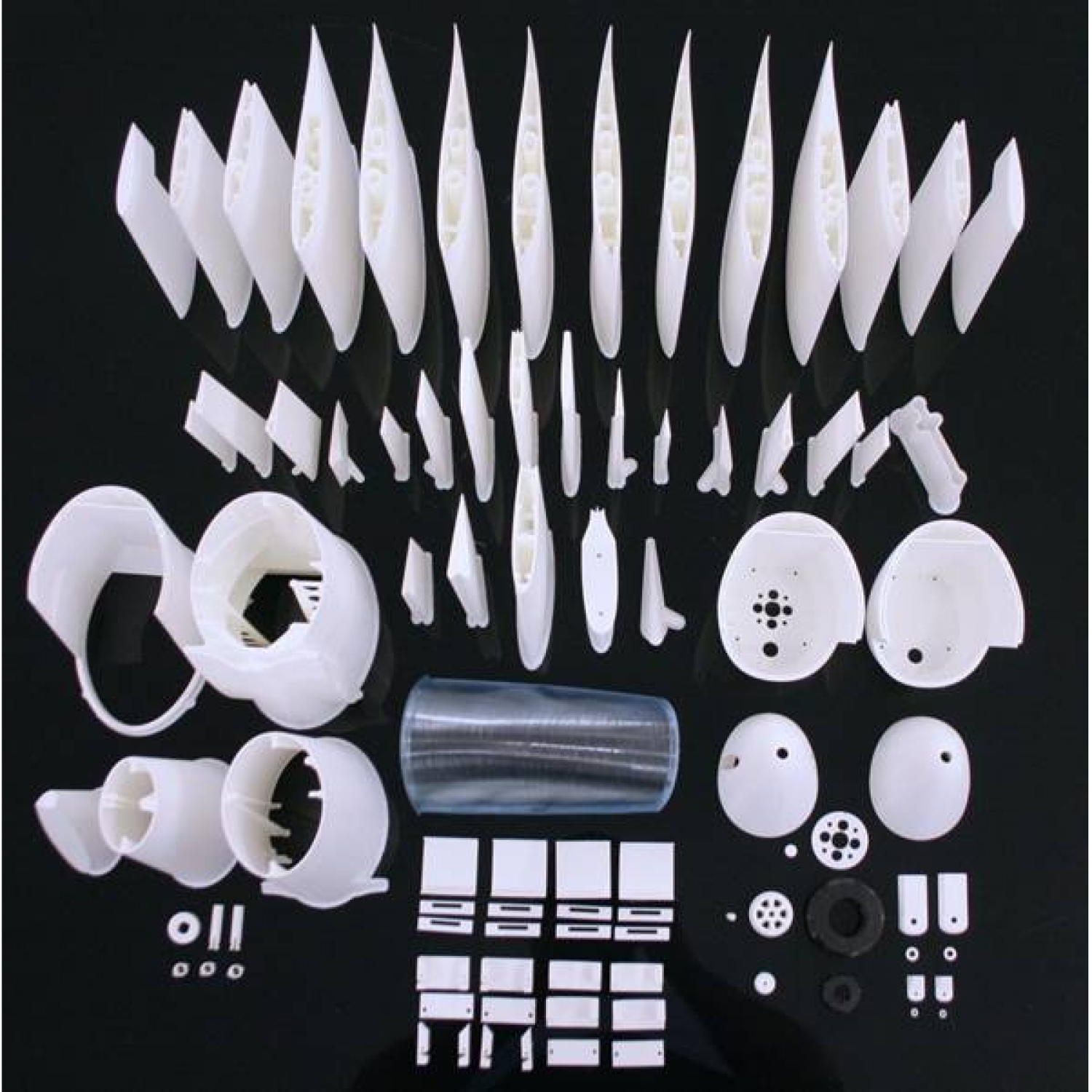

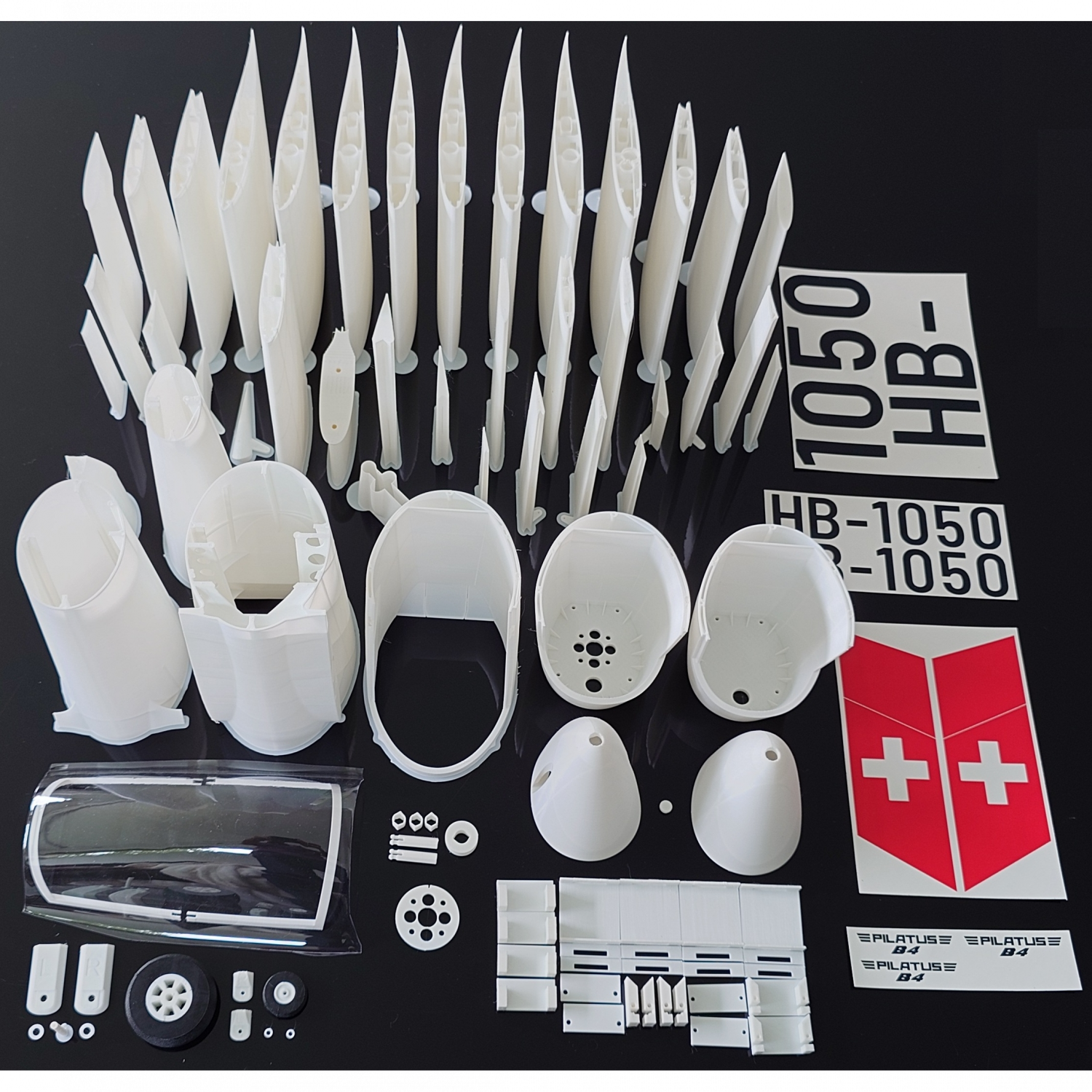

Figure 2: Fresh from the printer - all print parts

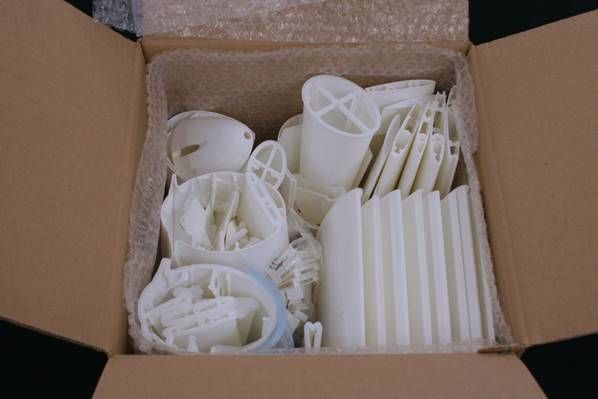

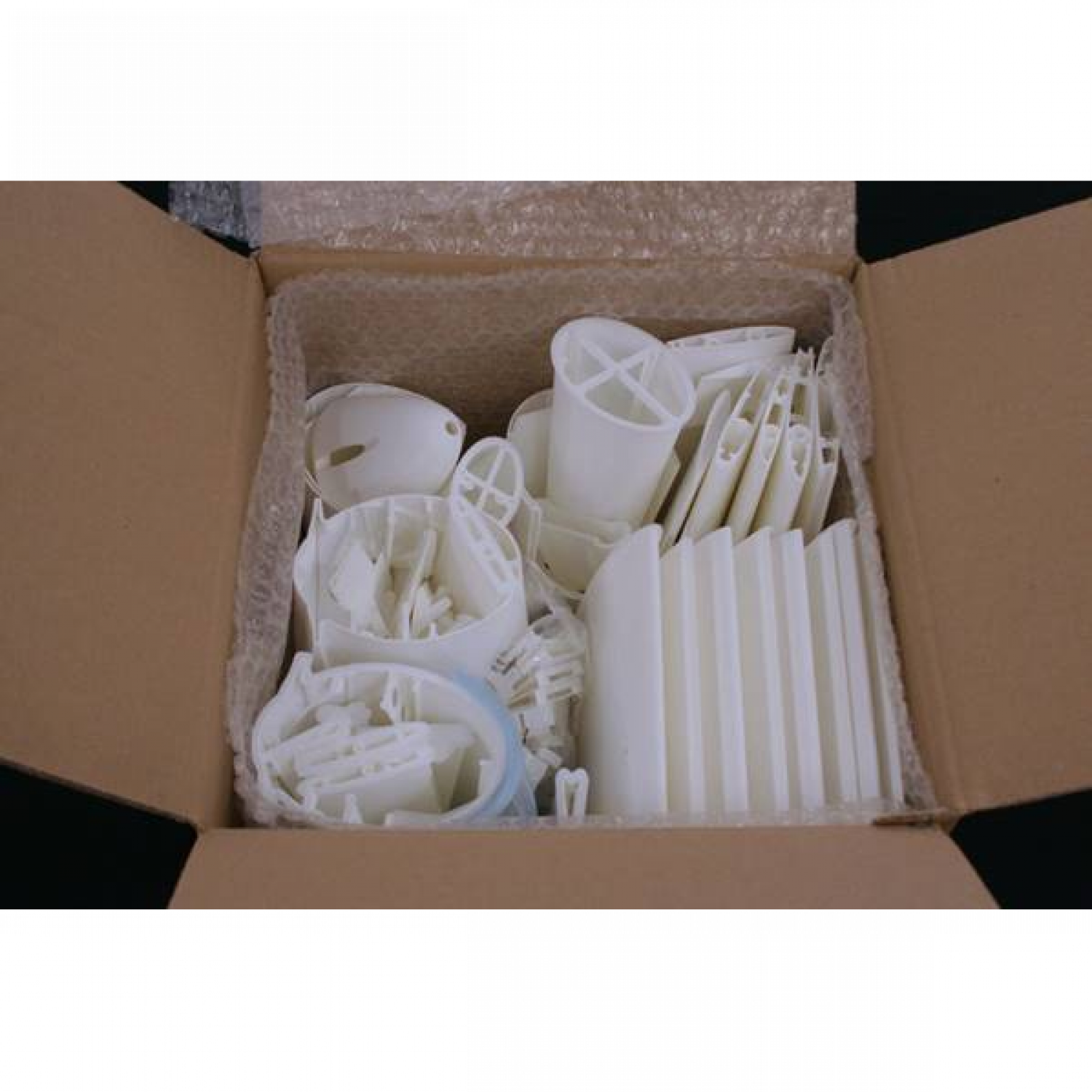

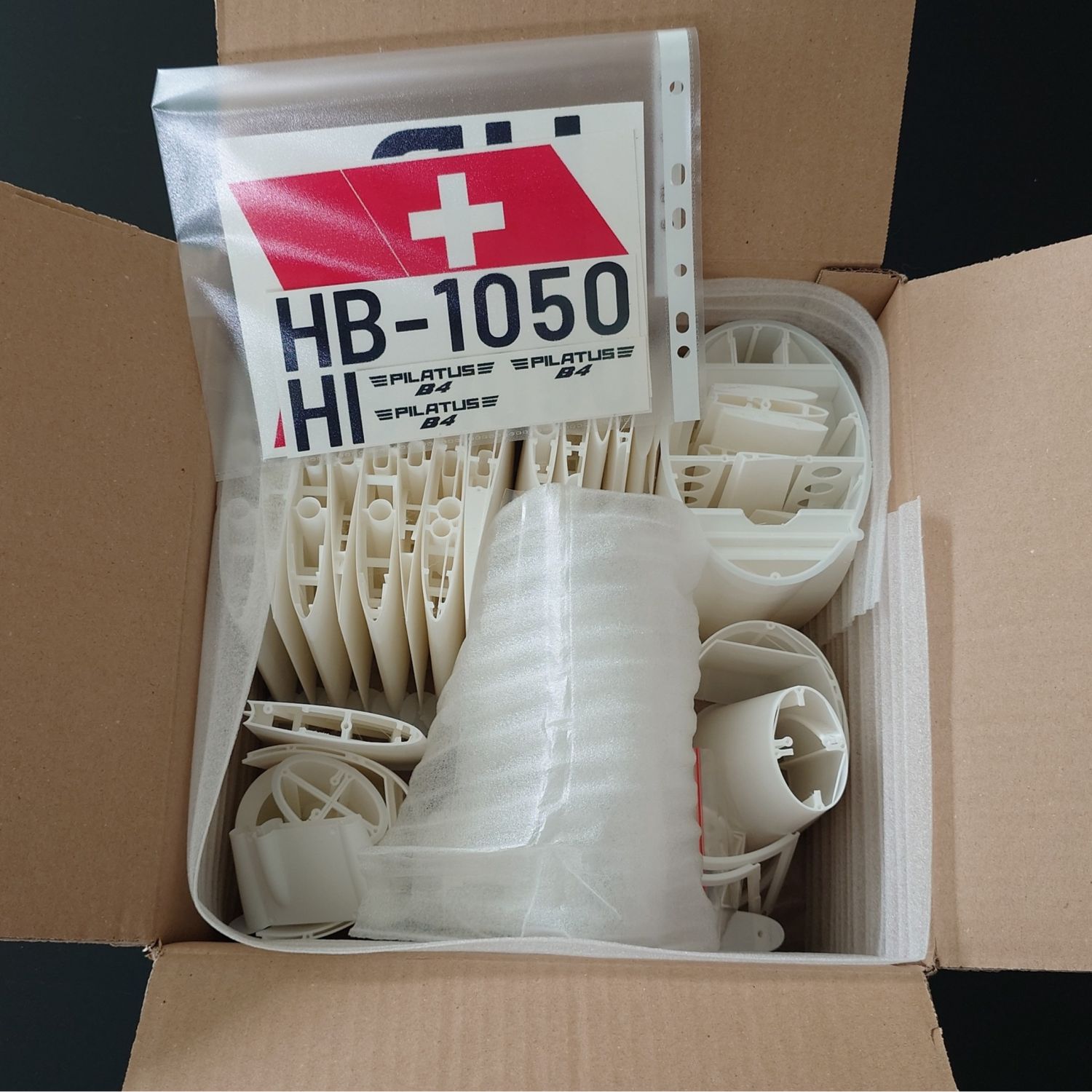

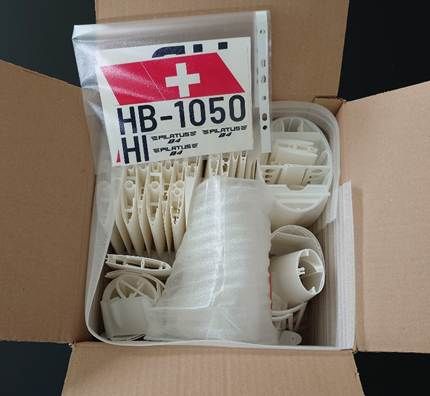

Figure 3: All printed parts in stable double-walled box ready for shipping
