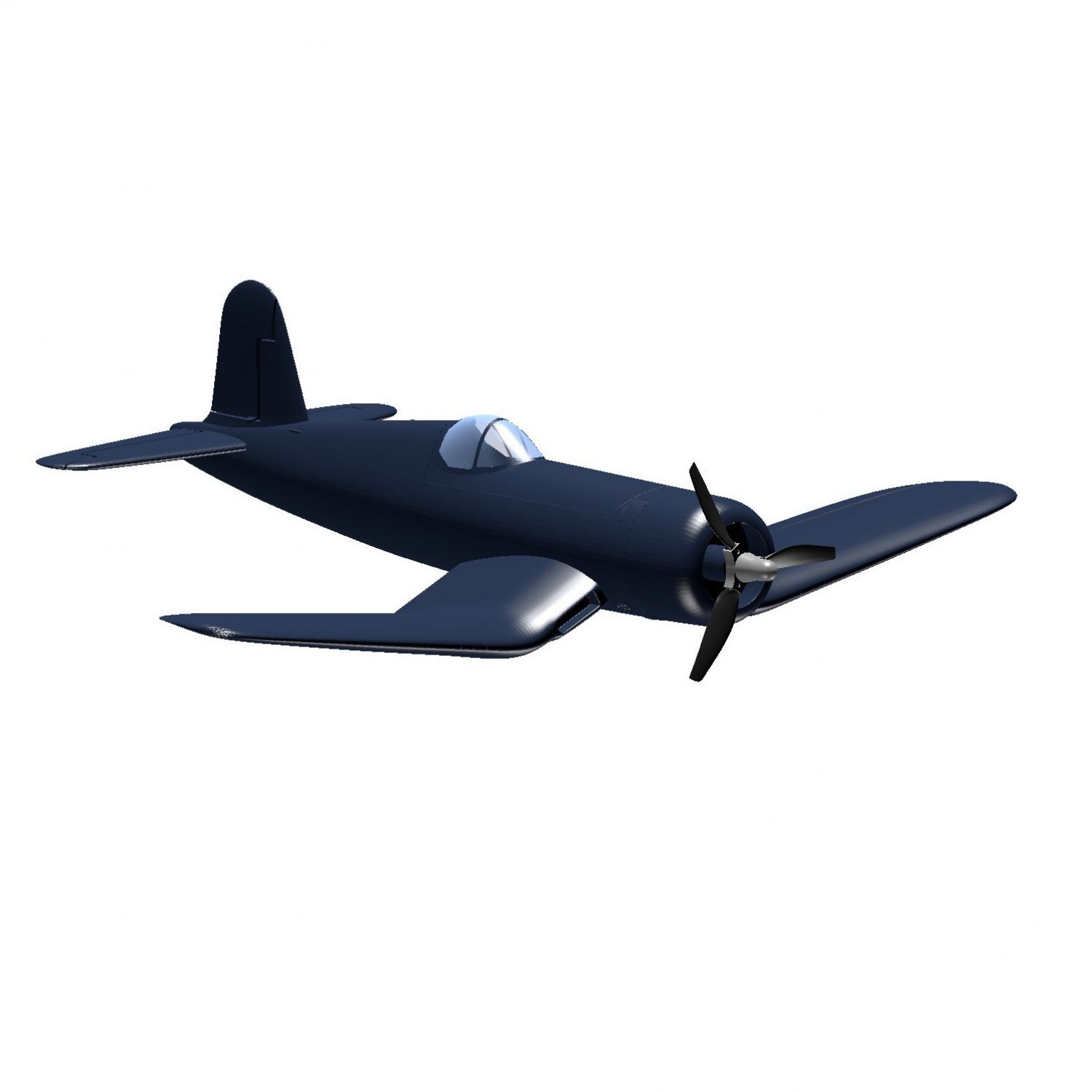

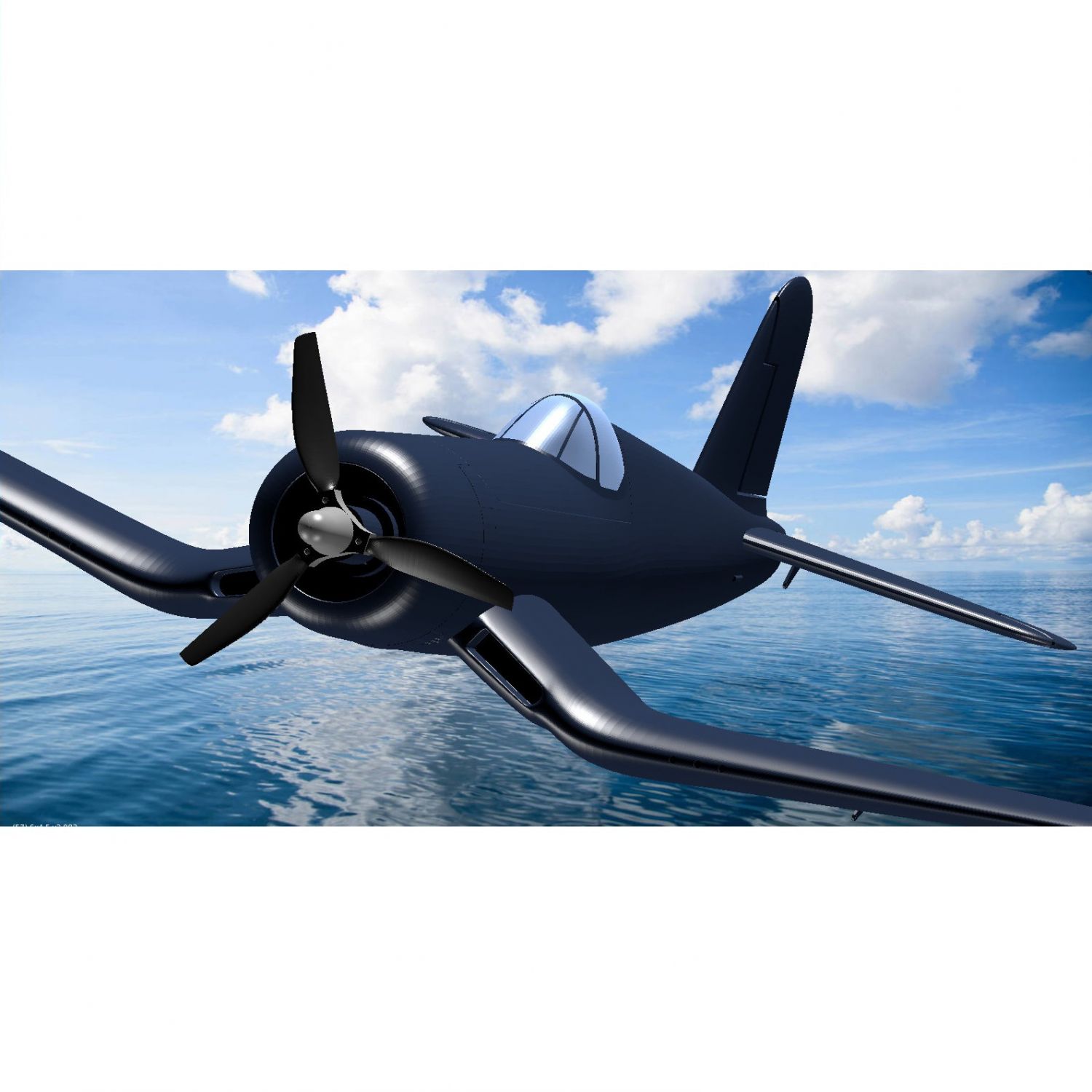

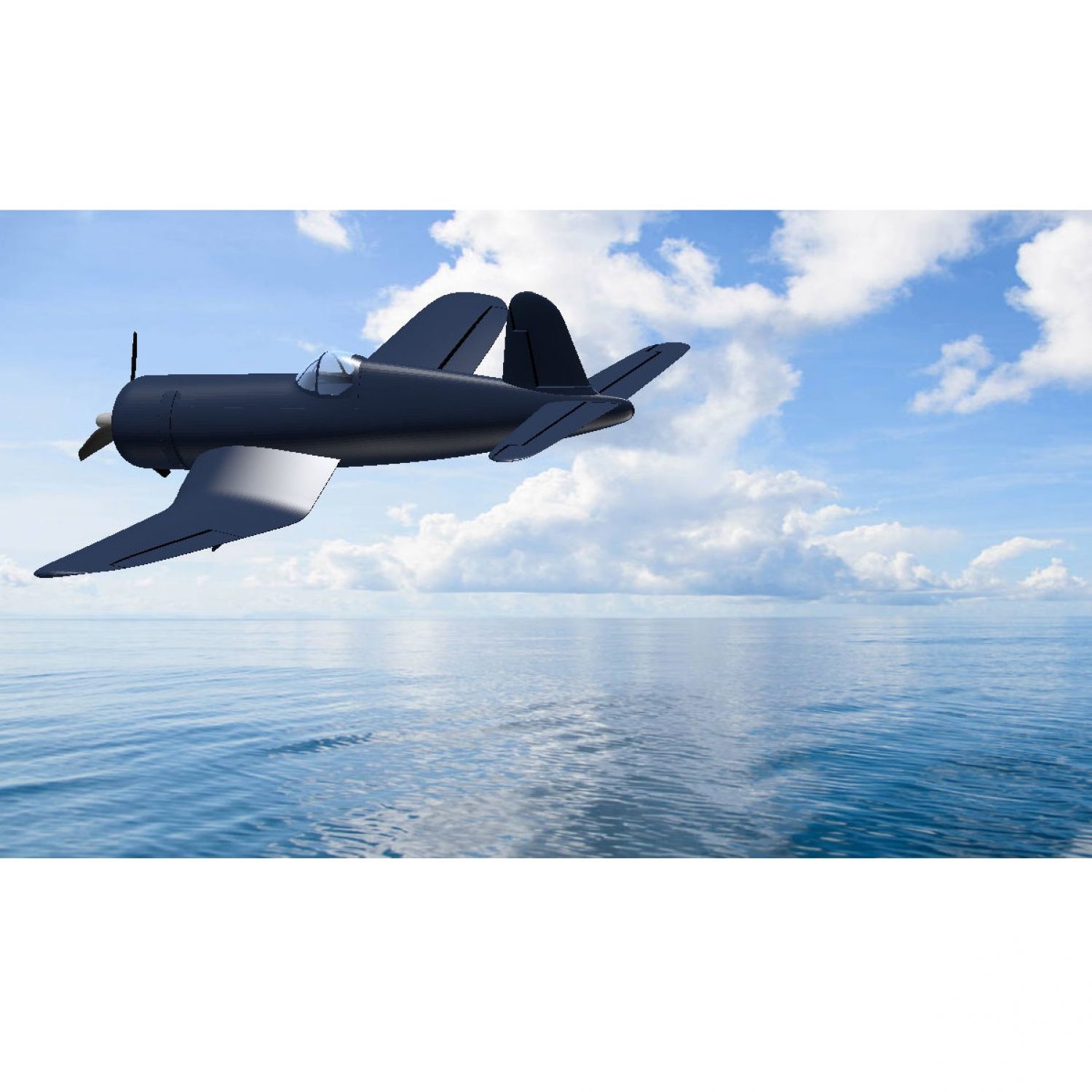

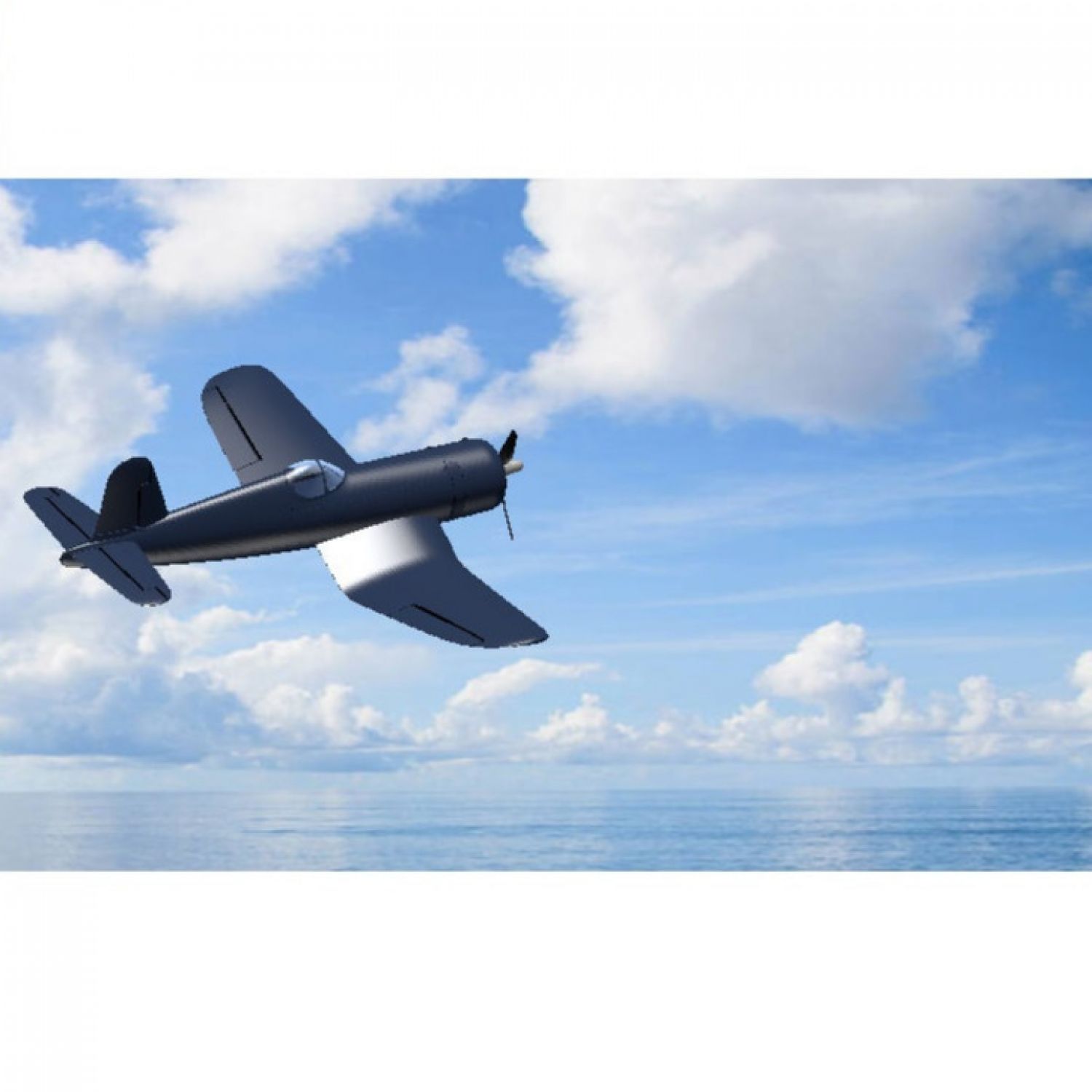

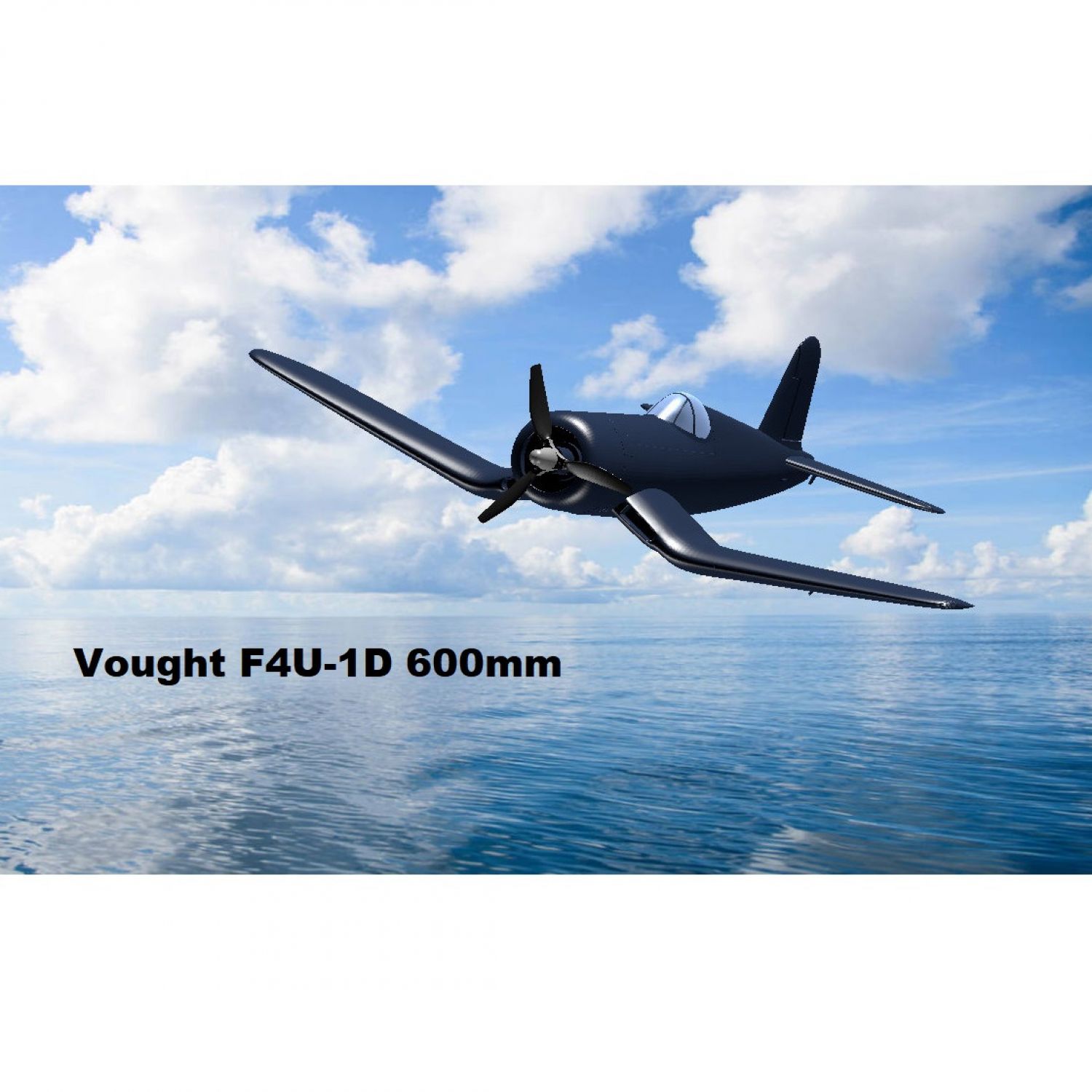

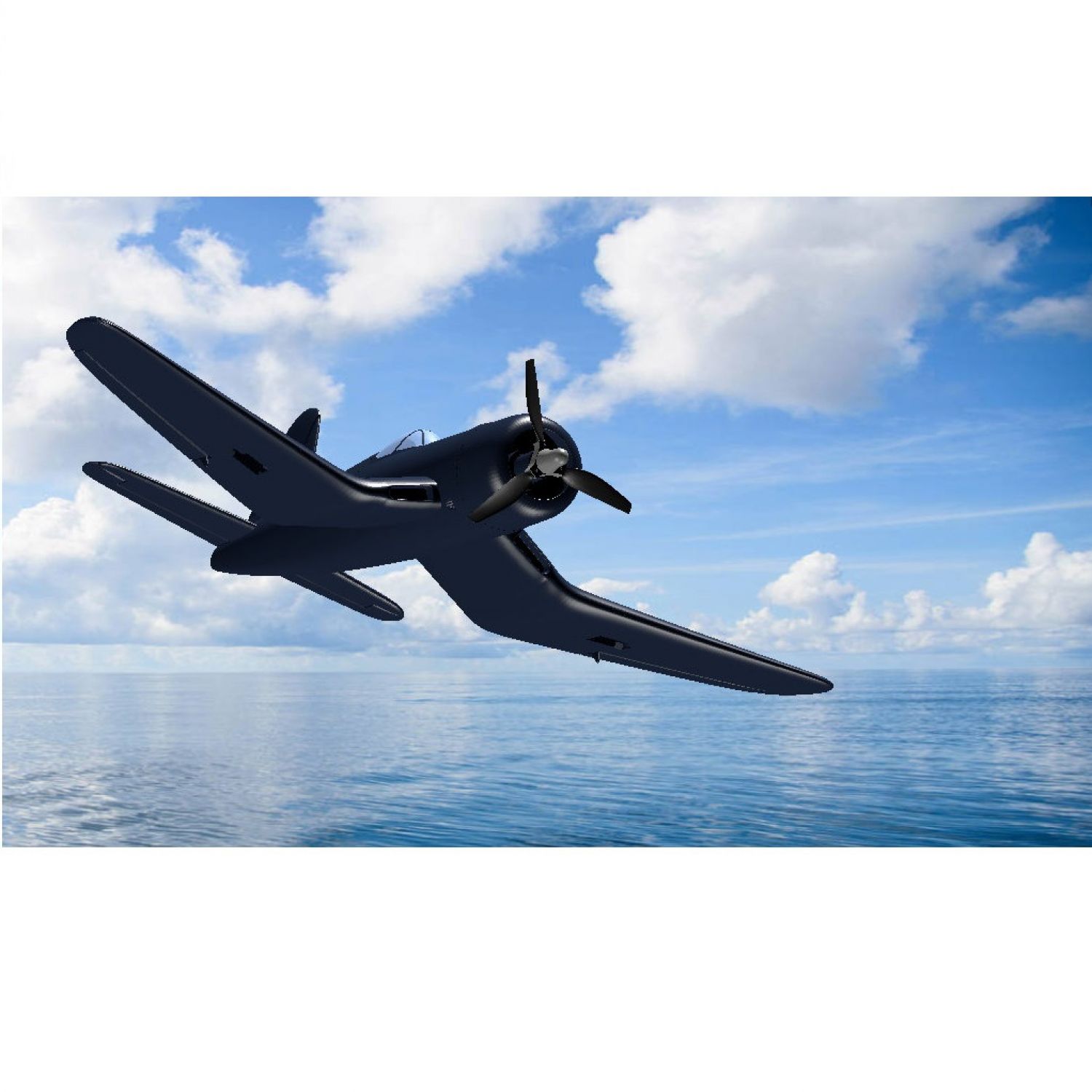

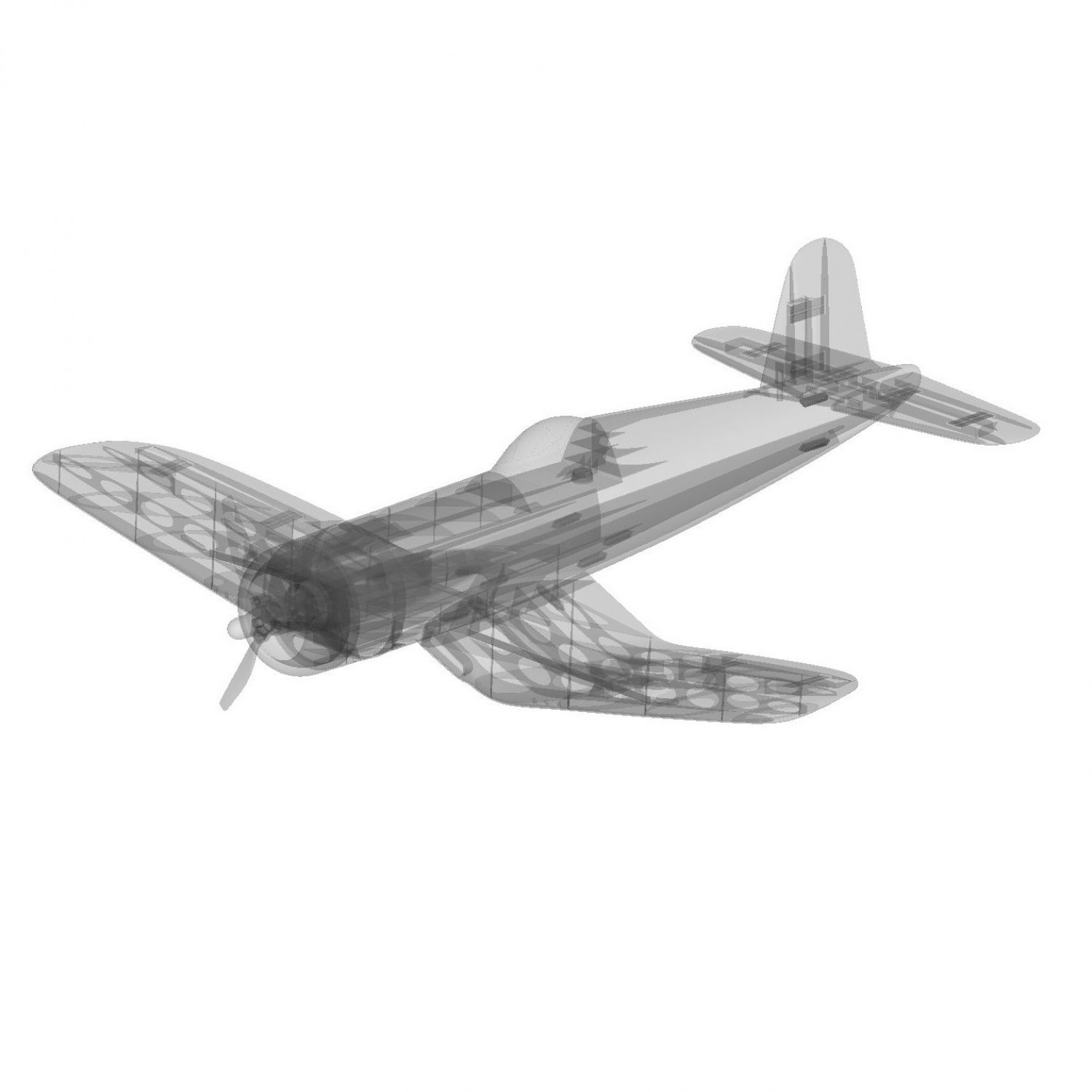

Vought F-4U-1D Corsair 600mm LW-PLA

£8.30

Inclusive All Taxes

Description

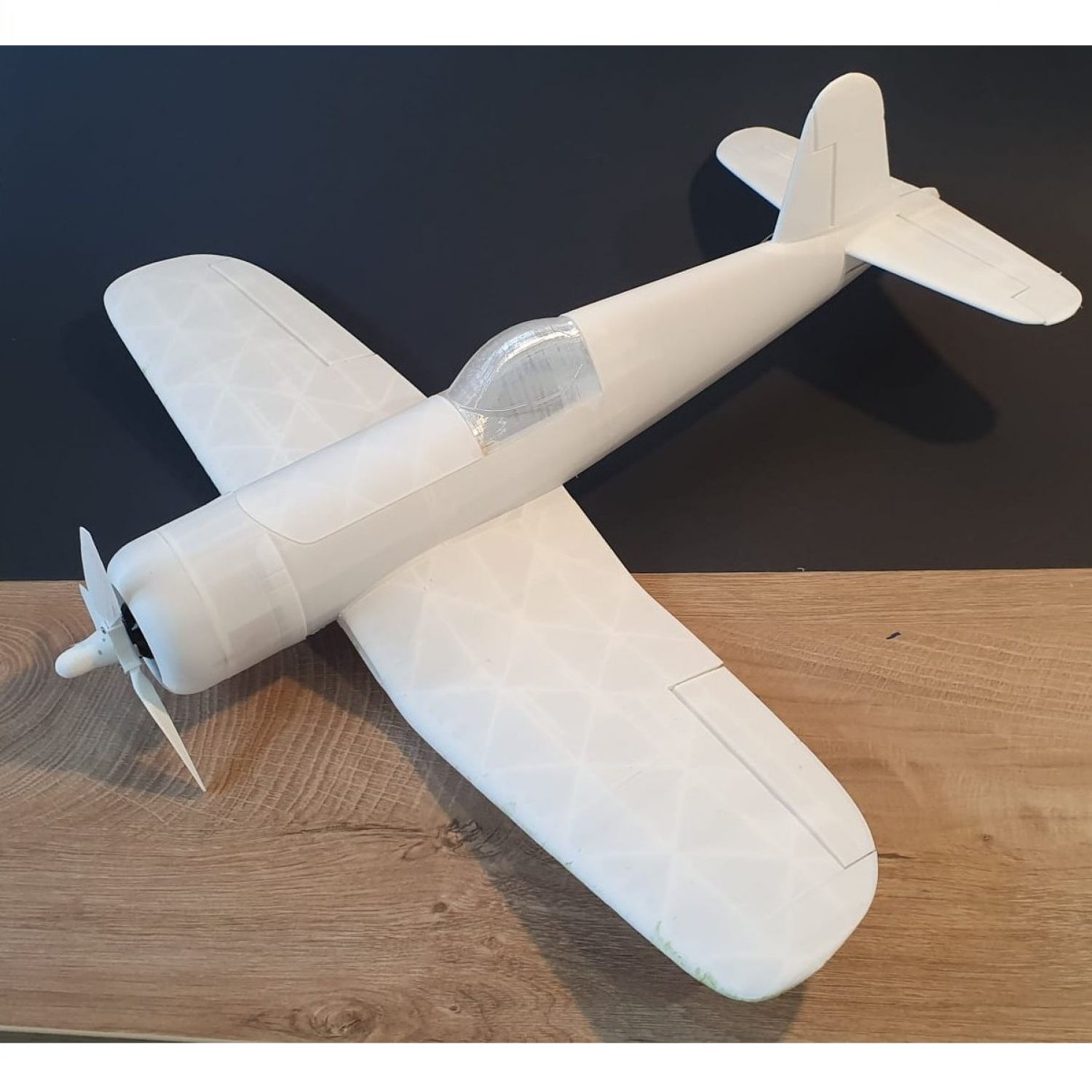

A custom replica of the Vought F-4U-1D Corsair, this 600mm wingspan version is designed to be powered by a 2804 2300kv electric out-runner and printed in LW-PLA this model looks as fantastic in air as it does on the ground. Utilizing full 4 channel controls; aileron, elevator, rudder and throttle, this model performs extremely well given its small size and lightweight. Full capable of aerobatic and scale flight, this model is  filled with scale detail;
- Spinner with 2 or 3 blade propeller
- Clear canopy with window outlines
- Intakes and exhausts
- Option for removable "fixed" style landing gear

This model is recommended for the pilots with intermediate skills.

Included with this file:

  • Factory files for Simplify 3d
  • STL files for all components
  • G-code files for all parts
  • Cura profiles for LW-PLA and regular PLA
  • Detailed assembly manual and user guide
  • Print settings guide for all parts
  • part orientation images


GENERAL SPECIFICATIONS

 WINGSPAN 600mm (23.6 in)

LENGTH 520mm (20.5 in)

PRINT WEIGHT 200g (7.1oz)

FLYING WEIGHT 330g (11.7oz)

CHANNELS 4 (aileron, elevator, rudder ,throttle)

REQUIRED COMPONENTS:

X1 2204 2300KV MOTOR (or similar)
X1 20AMP ESC
X1 950MAH 2S LIPO OR SIMILAR
X4 3.7G MICRO SERVO
X2 BAMBOO SKEWERS
HEAT SHRINK TUBE 3mm
X2 10mm X10mm X 2mm MAGNET (ROUND)
X10 MICRO HINGES
VELCRO
X2 x 200mm carbon strip 3mm x 0.6mm (optional)
M2 x10mm screws
M2 push rod 200mm (min length)

PRINT VOLUME:
200x200x200

For any questions and assistance please email us at:

aeroworks3d@outlook.com



NOTE: All STL files need to enlarged to 1000% if using a program other than simplify3d.

Free download of instruction manual and parts list HERE
