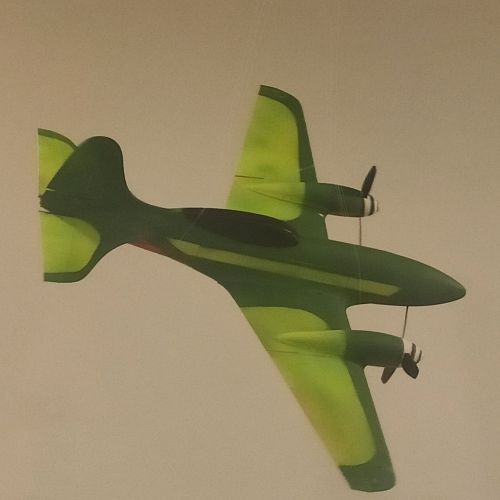

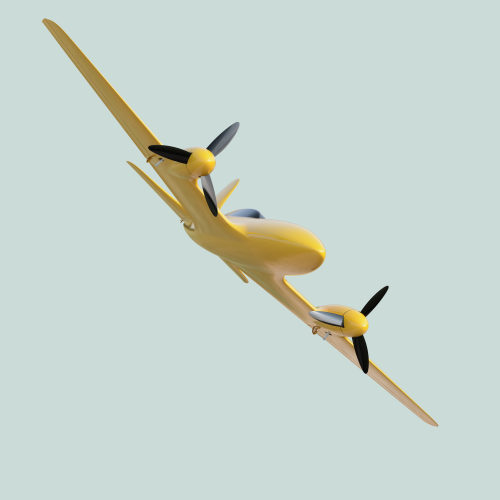

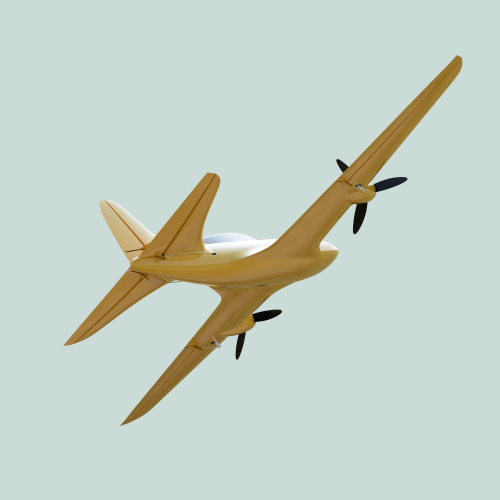

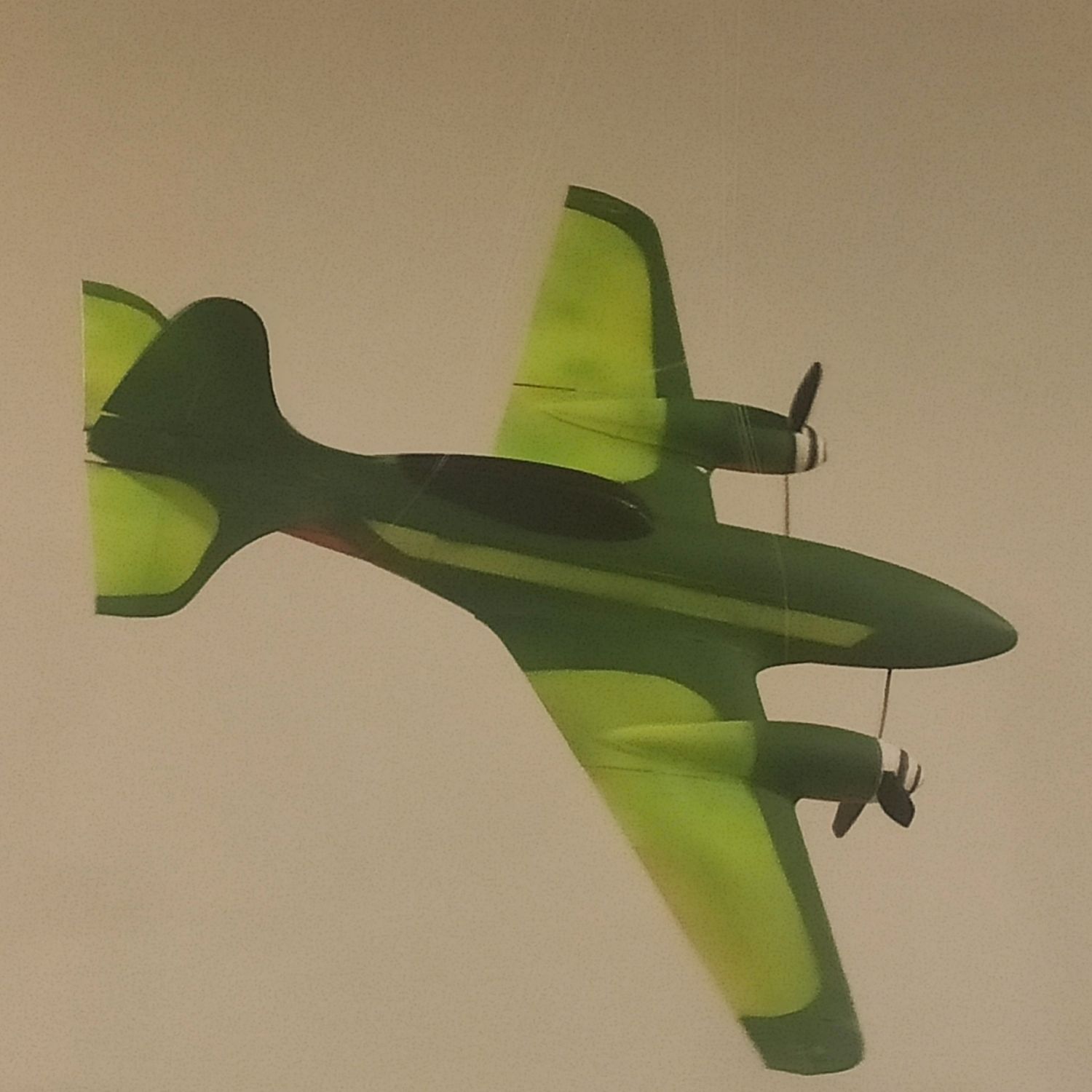

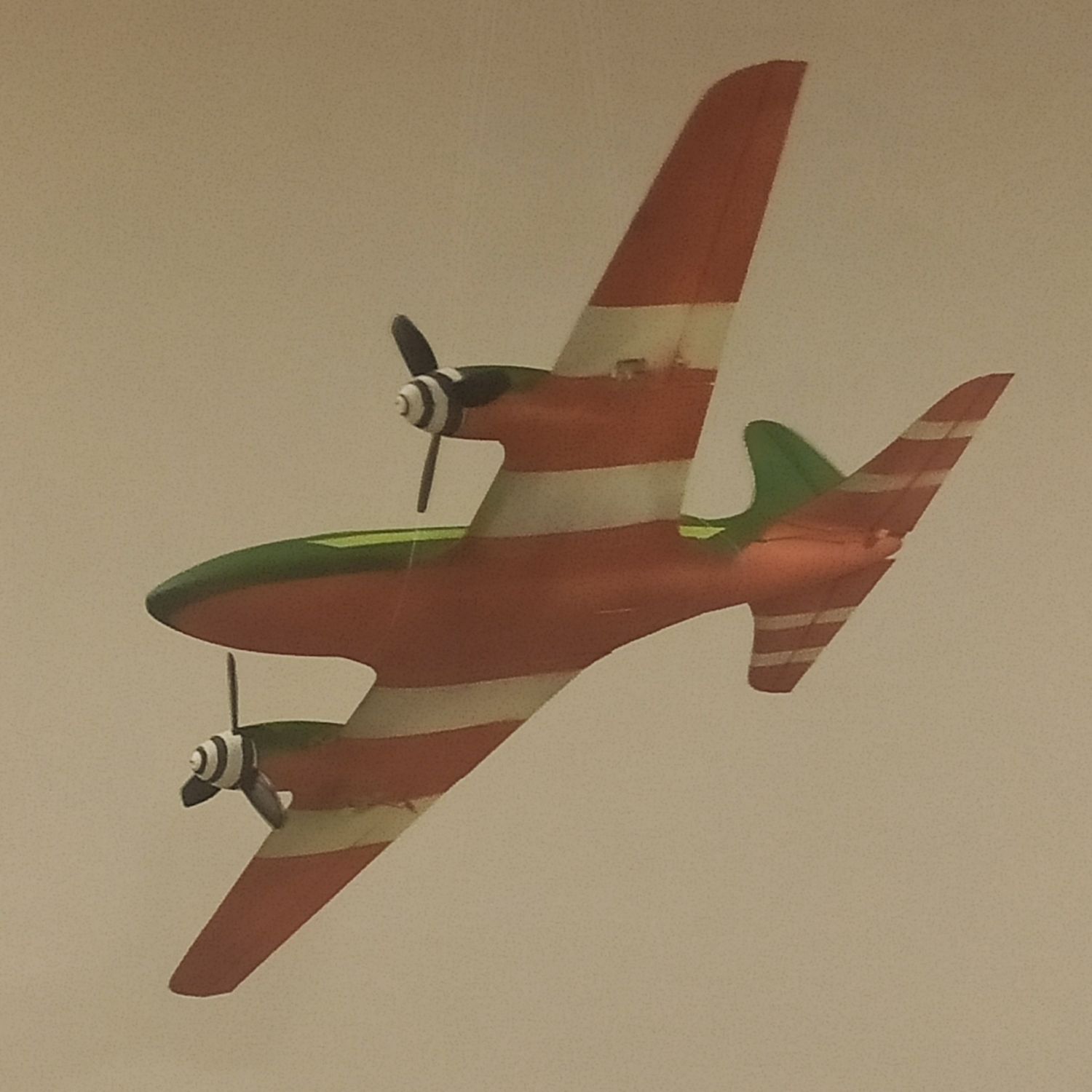

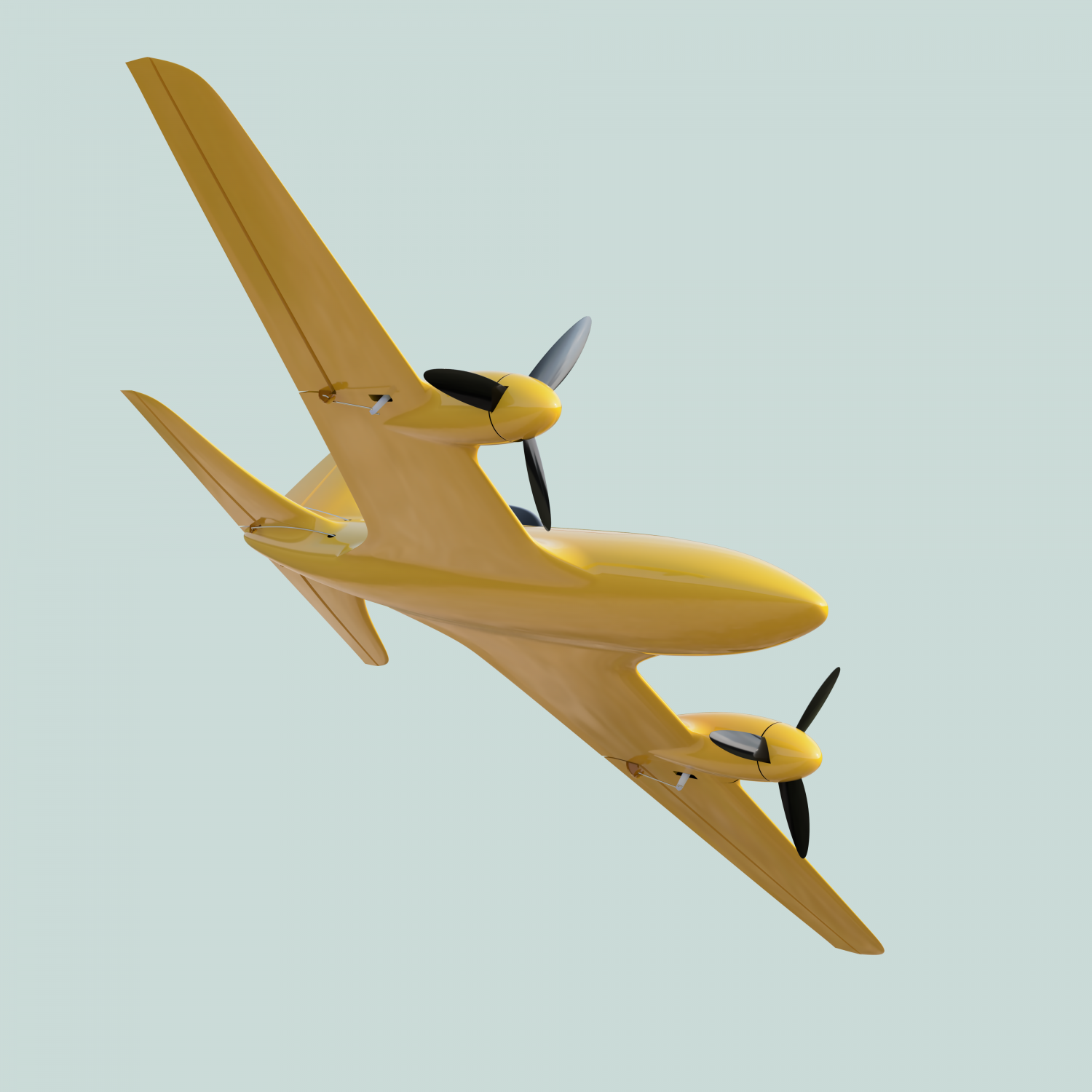

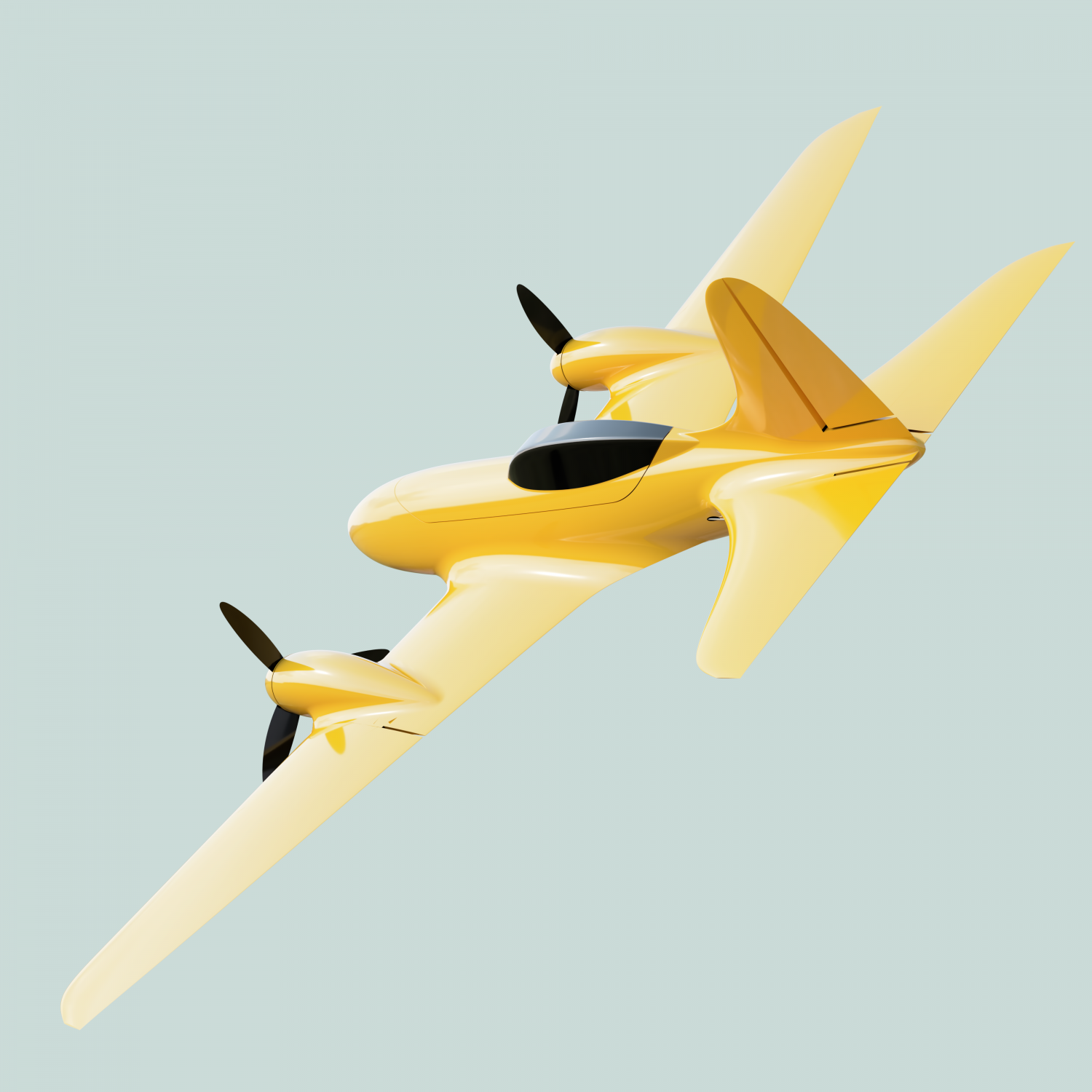

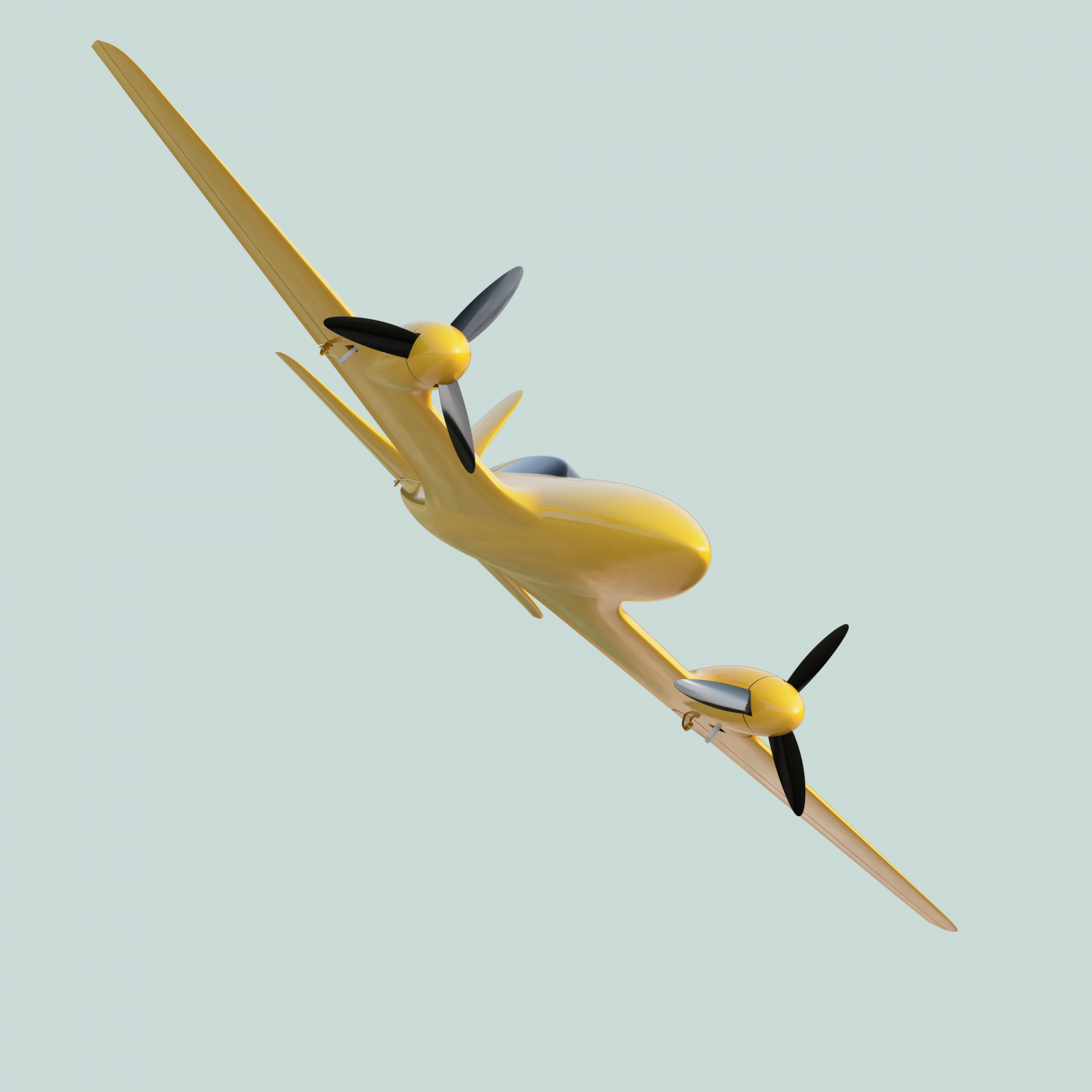

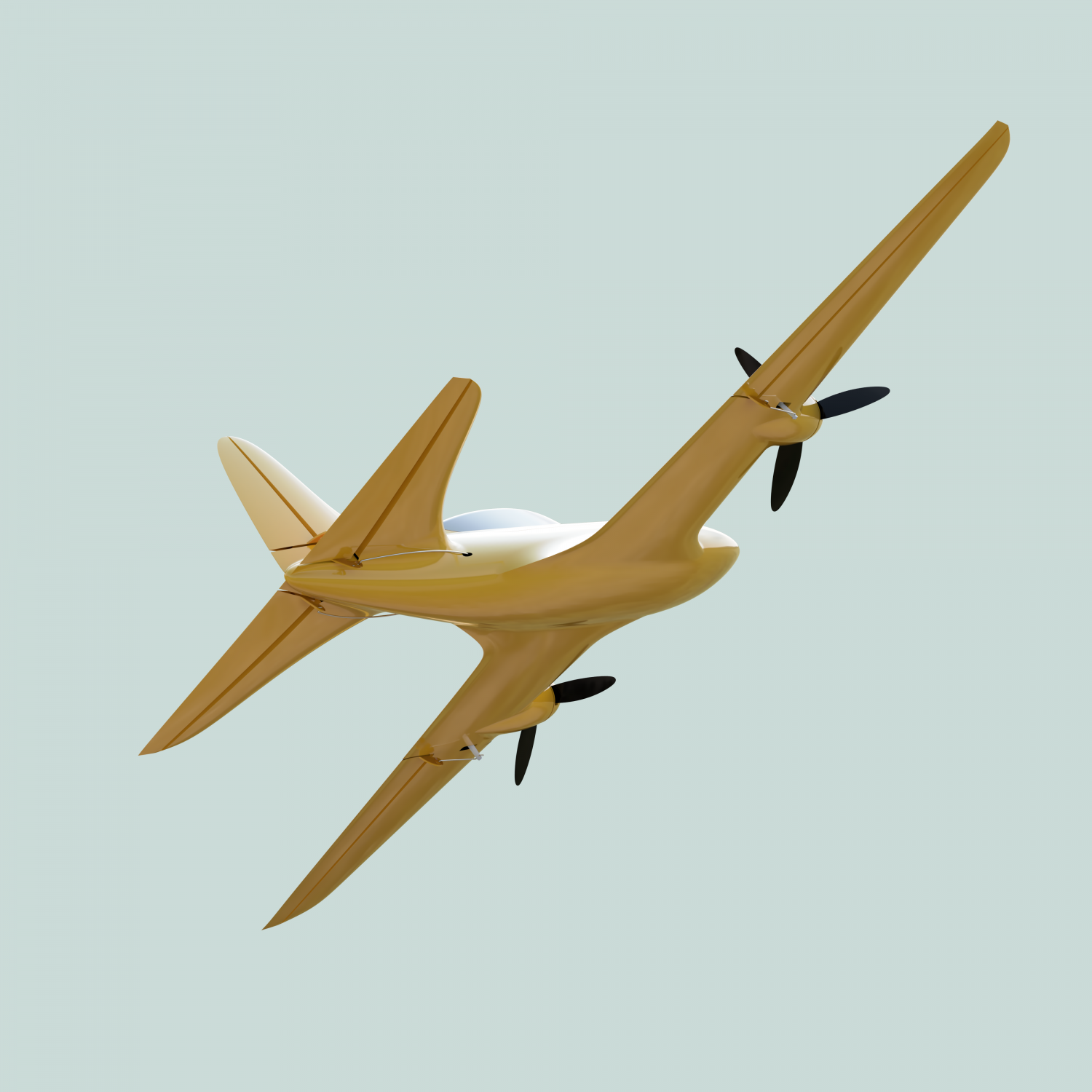

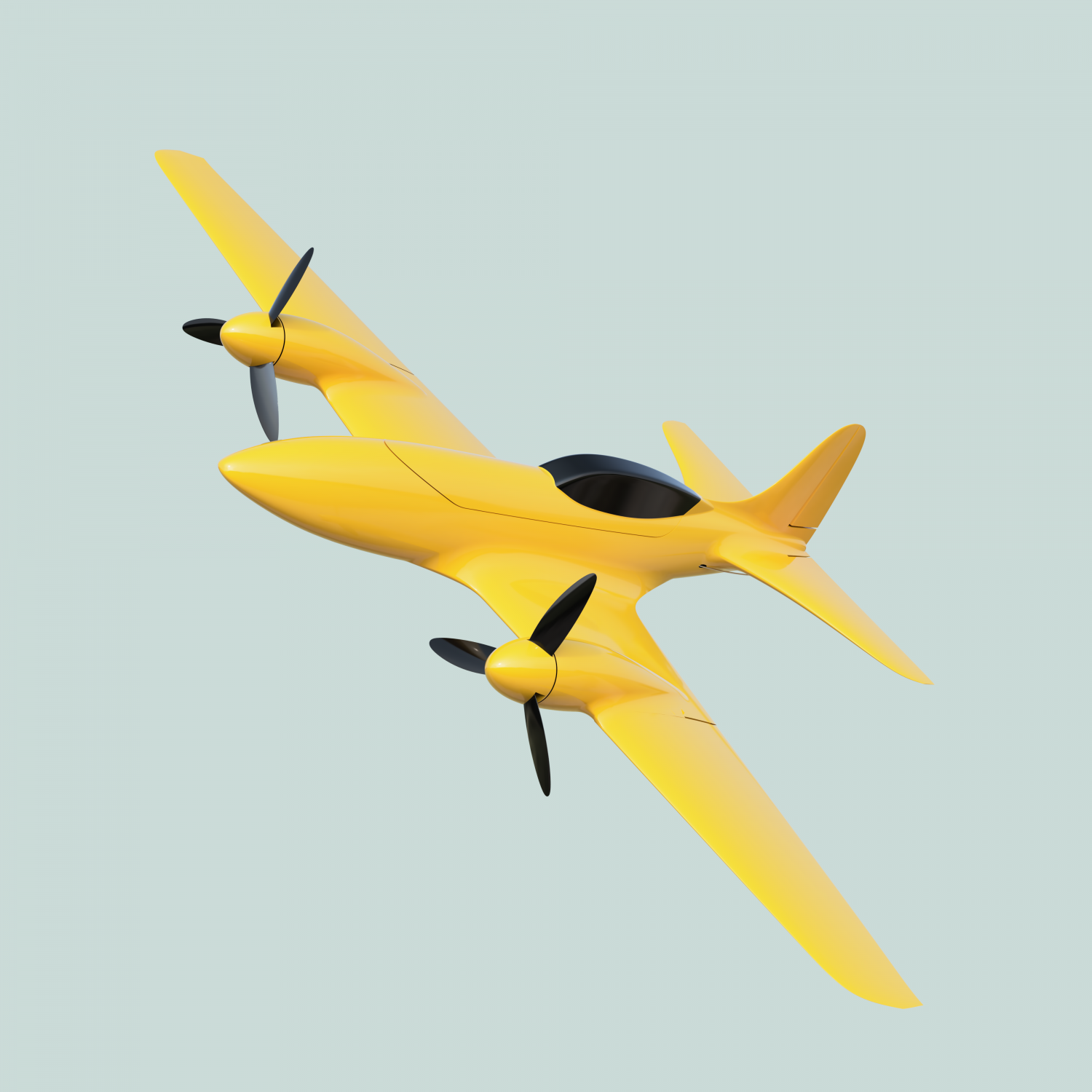

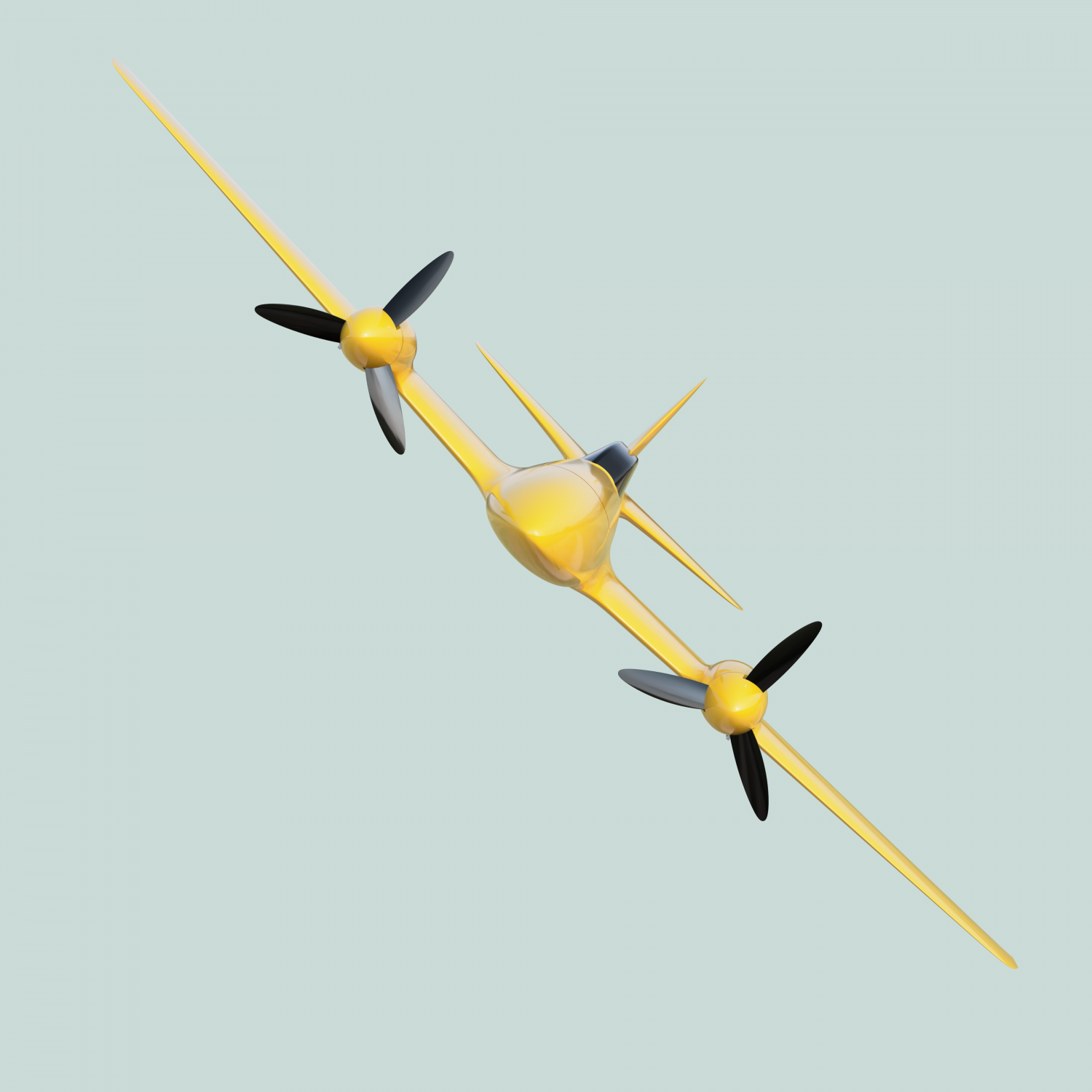

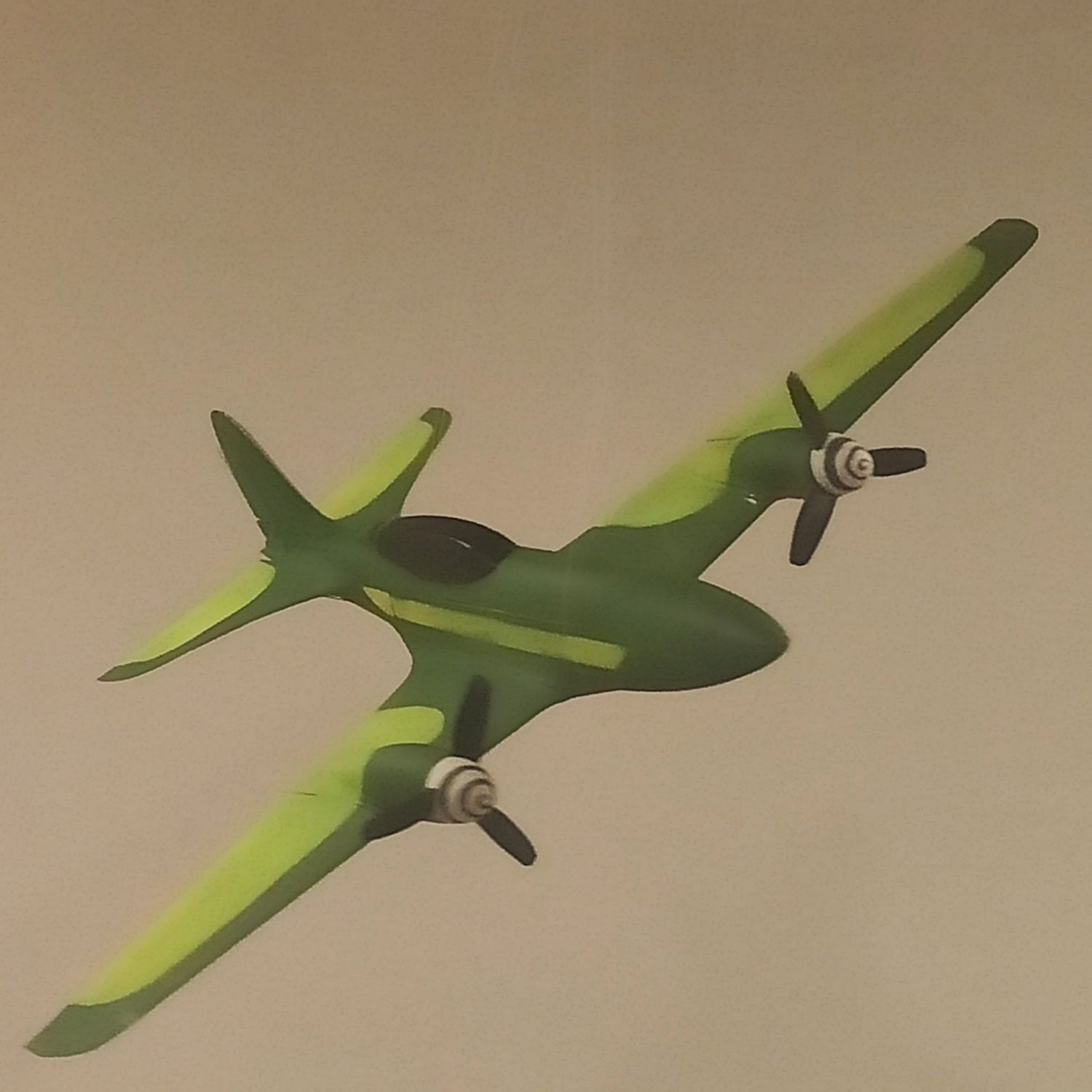

Twin Engine Sport Plane "Proton"

Small size, low cost, but big fun! This little racer can be build with a variety of different electronic components and completely without carbon fiber. You can build it as a sub 250 gramm backyard cruiser or as a super fast rocketship that goes vertical at 1/4 throttle. Included are spinners for 2 and 3 bladed props and an extra verical stabelizer without a rudder so you can save a servo if you use differetial thrust.

Specs:

Wingspan:       800mm

Lengh:             574mm

Weight:            250 – 500 gramms

 Printer settings and requirements:

Min. print volume:       200mm x 200mm x 230mm

Material:                    LW PLA / PLA

Nozzle:                     0.4mm

Slicer:                       Cura

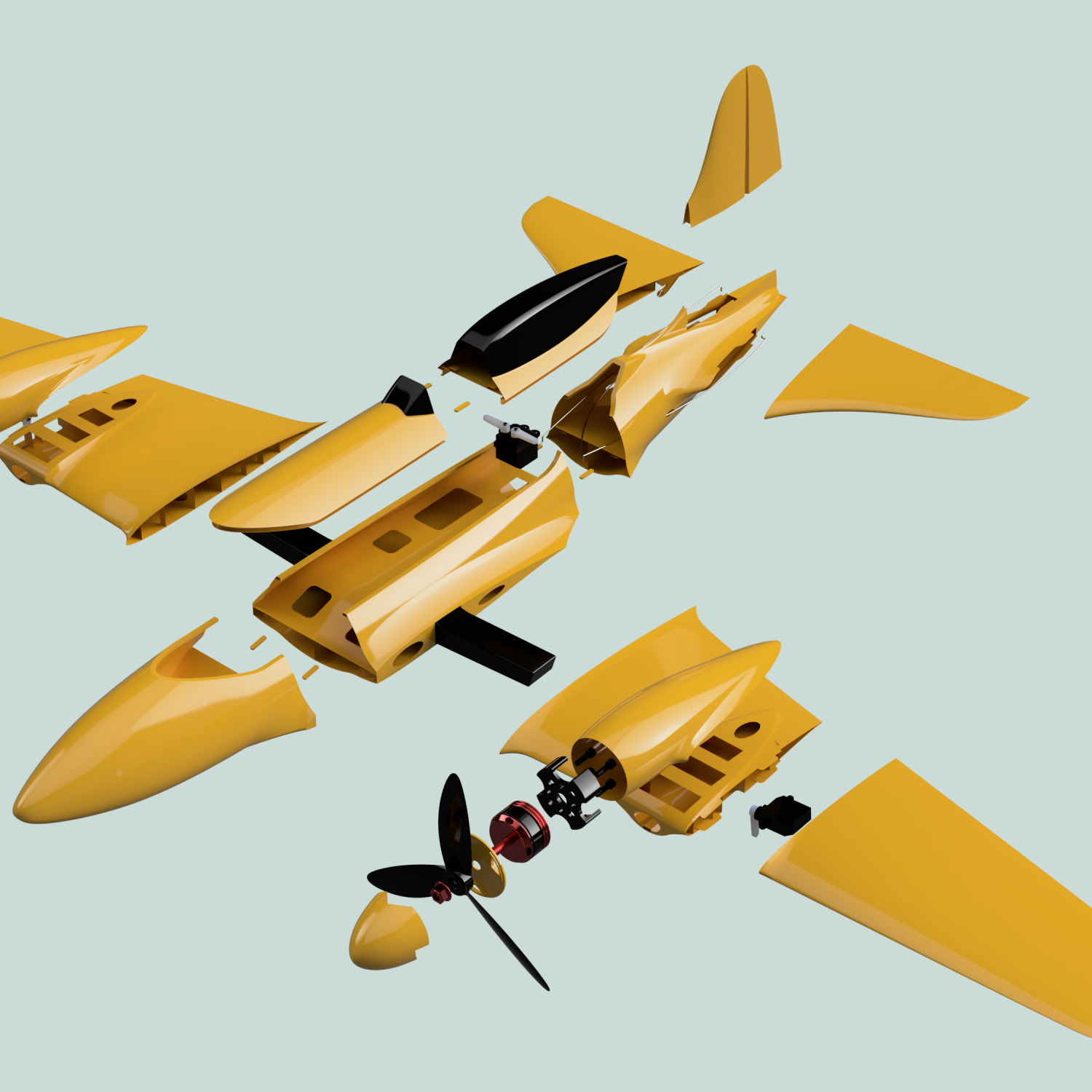

  Required electronics and material:

No carbon fiber reinforcements are needet for this build!

2x brushless Motors 1103 - 2205

2x 20 A ESC

2S-4S 800mAh+ LiPo Battery

4 x 5 gramm or smaller Servos

2 x 5 inch Props

Min. 4ch Reciever

1mm steel wire.

Velcro for Battery

CA glue and accellerator

 For more information, please check the How To... PDF and the build instruction.
