Date:20.06.2022
Cura: v4.12.1
Set up Tronxy X5SA/X5ST/Pro 400 Printer in cura, in order to import the settings delivered
Infill: 40-60mm Grid or Cubic depending the situation
filamet
TPU :20g
PLA-LW Colorfab:1400g
https://colorfabb.com/how-to-print-with-lw-pla?msclkid=fb36bfb8c2d011ecb4881c618f6c73a3
PLA :100g

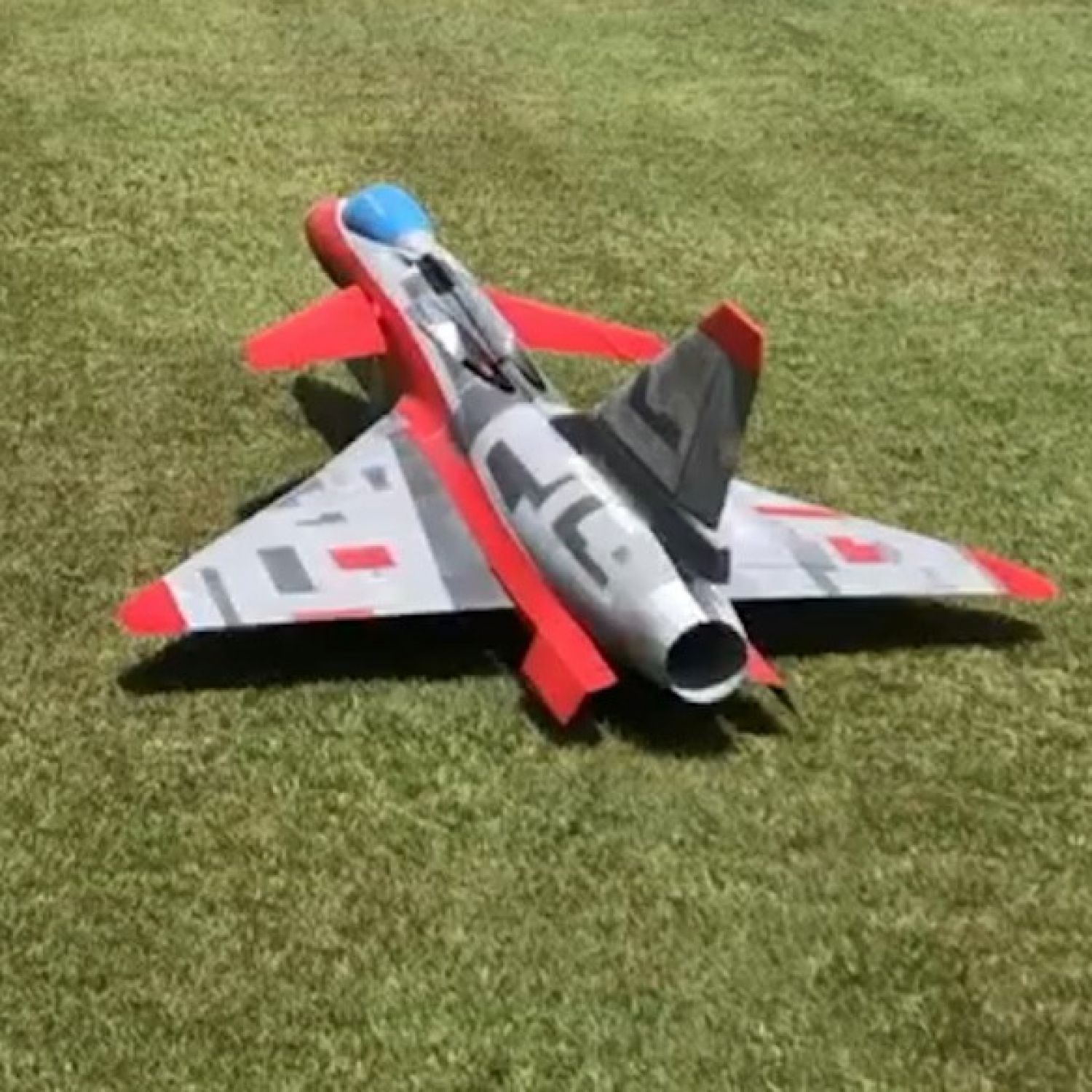

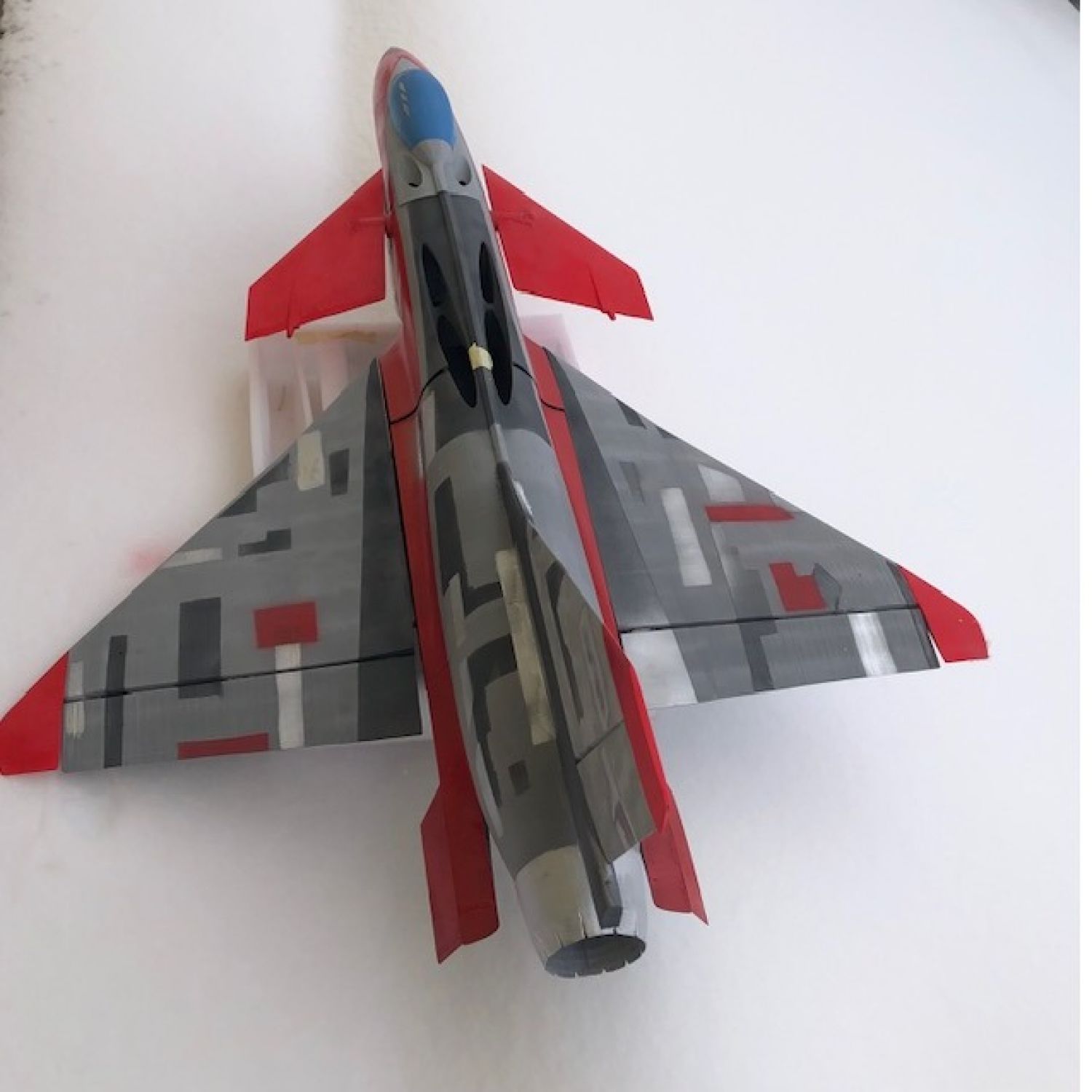

J-10 settings:
Weight3.9kg
Wingspan 1.08m
Leght1.7m
EDF 90mm 12blade8s 4.5k trust
Engine~4075-1500kV
4 (+1*) Servos 15g MG 3.5kg
ECS120A
Accu 6S>40C5000-5500mAh
Retracts 3x 40g
Weels 3x150x55mm Tension front 3kg back 1.5-2kg
Alumium gear2+1 Retractable 130mm /55mm Spring modified for 2-3kg
Flightsettings:
CG:~20cm
QR14-19mm
SR16-19mm
HR18-22mm
CanardFix potition +3 to +5degrees (adjsutable by servo)
Material
Carbon tubes10mm :1+1m
8mm :3x0.7m
6mm: 0.5m
Steel wire 1.5mm 1m
glueCA glue medium 20g
magnet2x6mm
