Seller
3D Aeroworks
Description

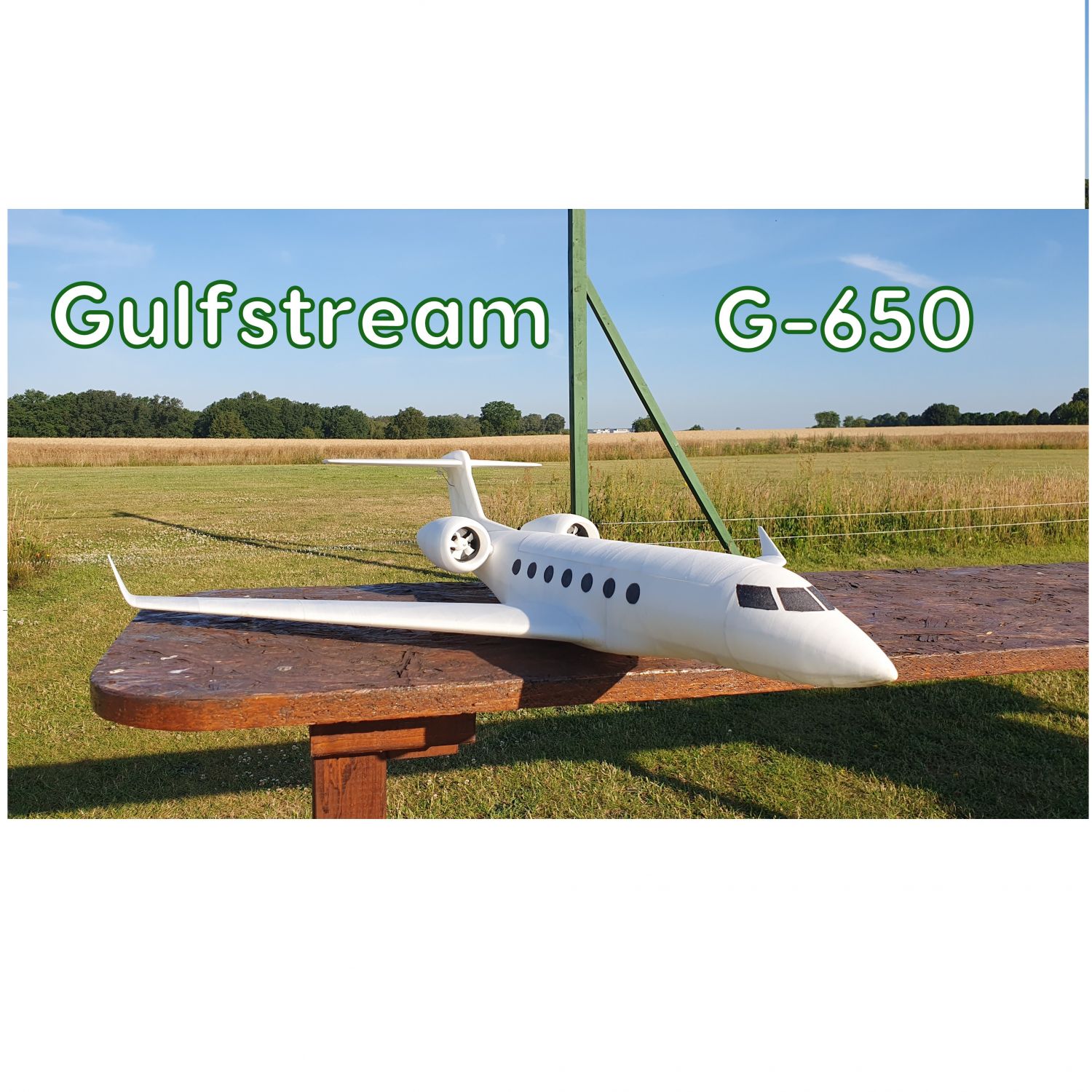

This replica of the Gulfstream G650 is designed for quick and easy construction, printed using lightweight PLA (LW-PLA). Designed to suit the QX 30mm EDF 7000kv, utilizing 4 channel controls; Aileron, Elevator, Rudder and Throttle along with the powerful combination of twin EDFs, this model holds a fantastic presence in the air of its full scale counterpart and is fully capable of light aerobatics maneuvers such as; Loops and Barrel-rolls. It can also be flown like a trainer, using only Rudder and Elevator thanks to its strong roll-yaw coupling. Links to components used can be found on the last page of the user guide.
Free download of sample parts, instruction manual, settings guide and parts list HERE
GENERAL SPECIFICATIONS:
WINGSPAN: 798mm
PRINT WEIGHT: 300g
FLYING WEIGHT: 550g
ELECTRICS:
QX motor 30mm edf 7000kv
ESC: 15amp (min)
SERVOS: 3.7g MICRO
BATTERY: 650mah 3s 50c (400g)
Included with this file:
- Factory files for Simplify 3d
- STL files for all components
- G-code files for all parts
- Cura profiles for LW-PLA and regular PLA
- Detailed assembly manual and user guide
- Print settings guide for all parts
- part orientation images
REQUIRED COMPONENTS:
X2 QX motor 30mm edf 7000kv
X2 15amp esc
X1 1400mah 3s LIPO OR SIMILAR (120g)
X4 3.7g Micro servo
Bamboo skewers 3mm
Heat shrink tube 3mm
X2 10mm X 10mm X 2mm Magnet (ROUND)
Velcro
x2 1mm Piano wire (min length 400mm)
X2 1mm x 500mm Carbon rod (round)
MINIMUM BUILD VOLUME: 200mm x 200mm x 200m
