Flite Test Simple Stick Fuselage

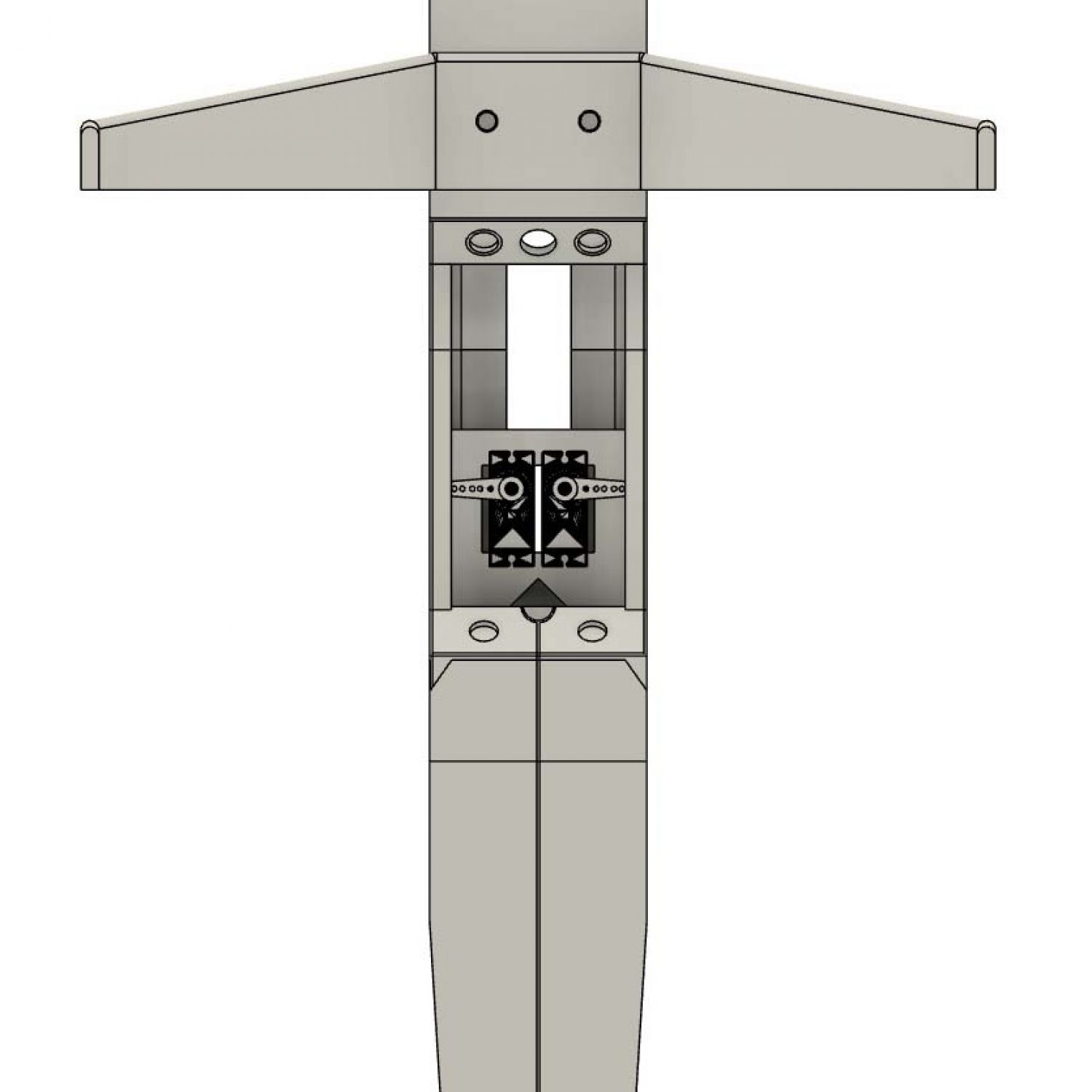

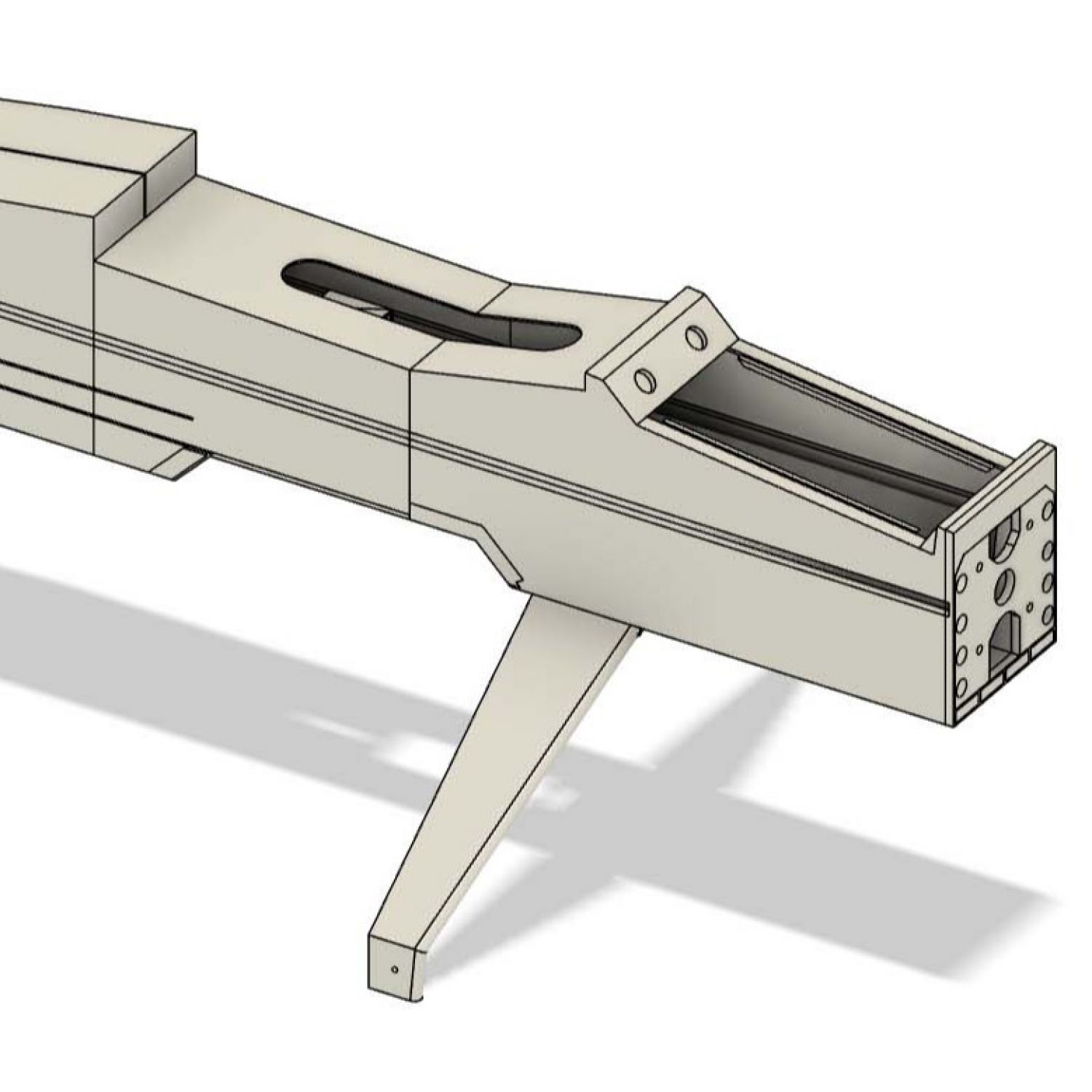

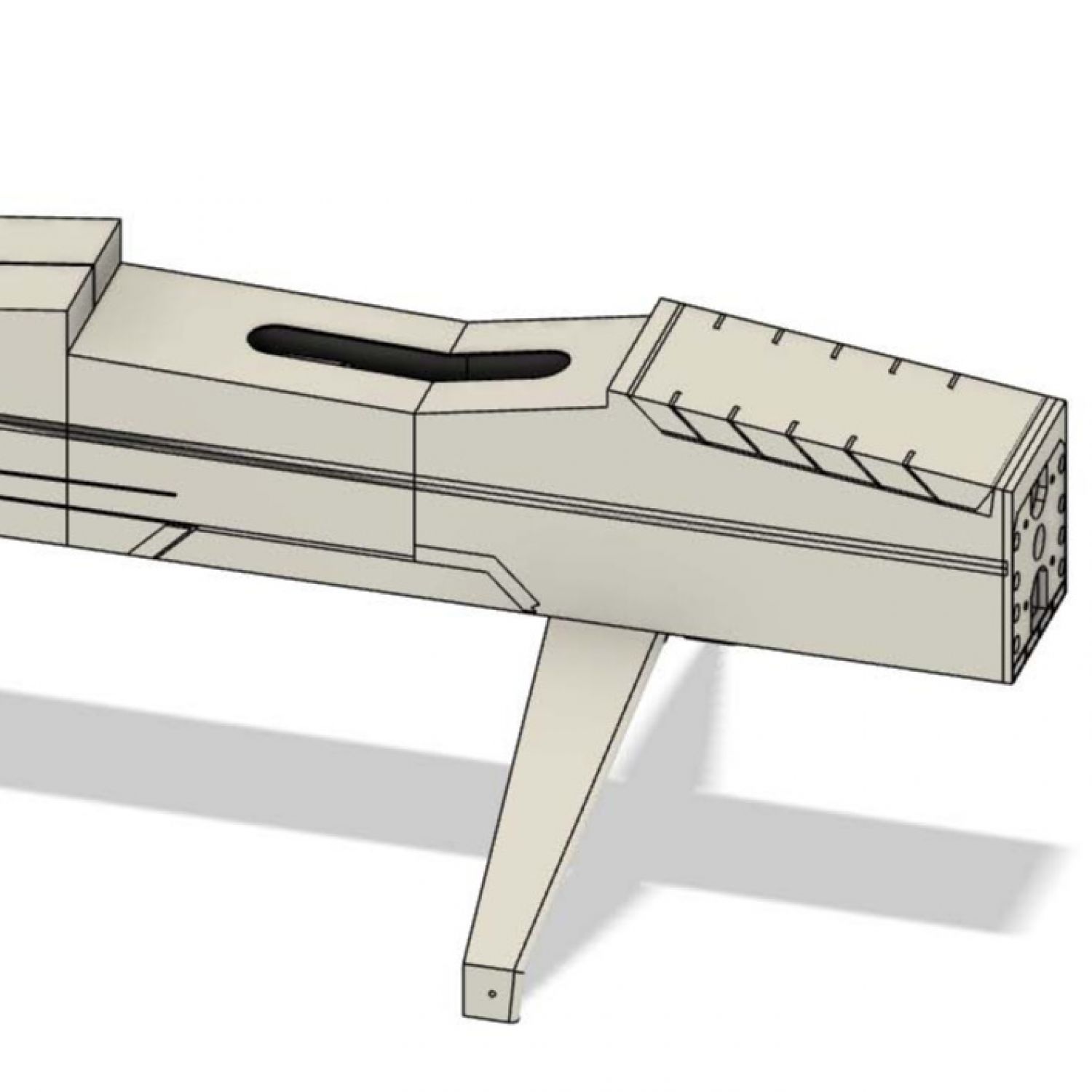

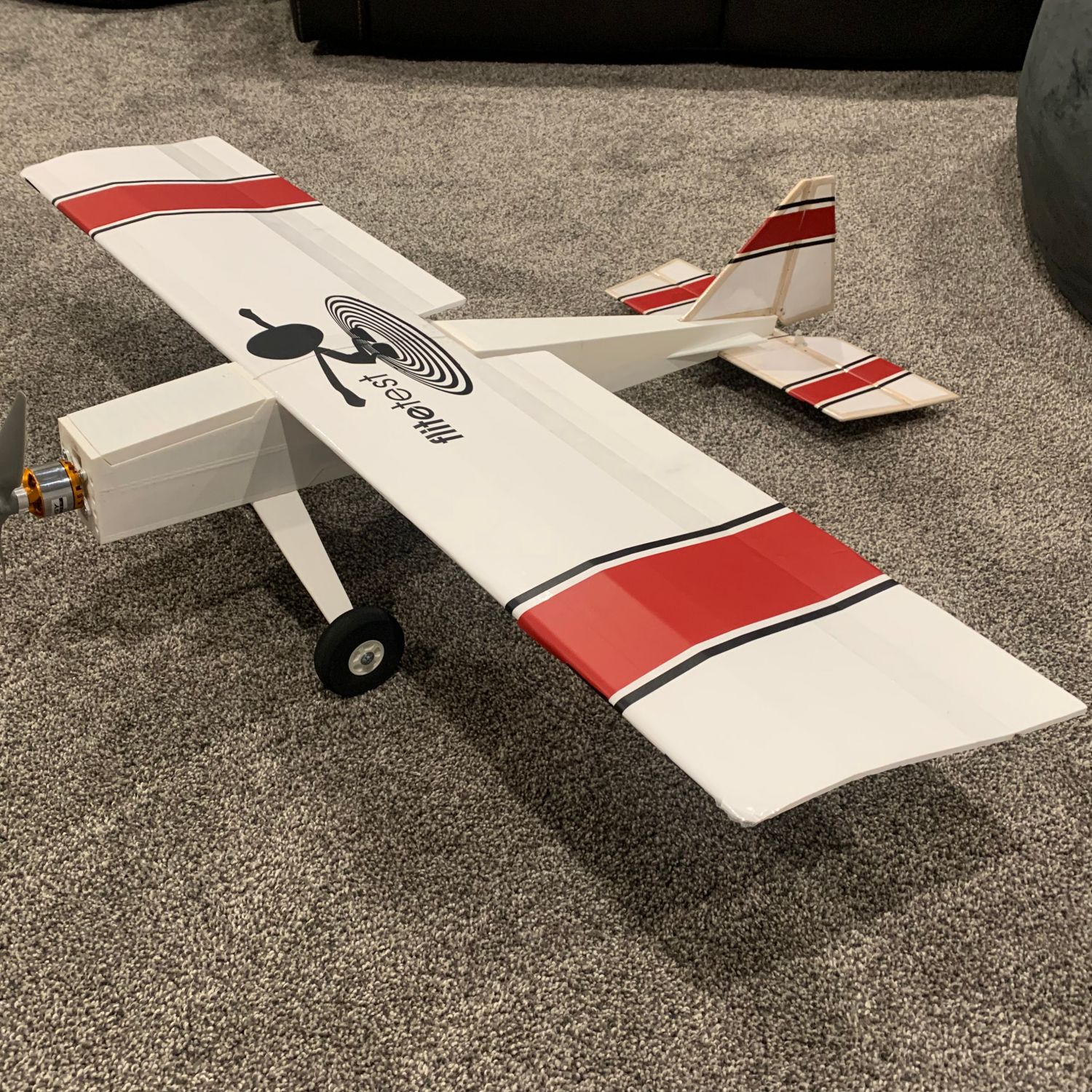

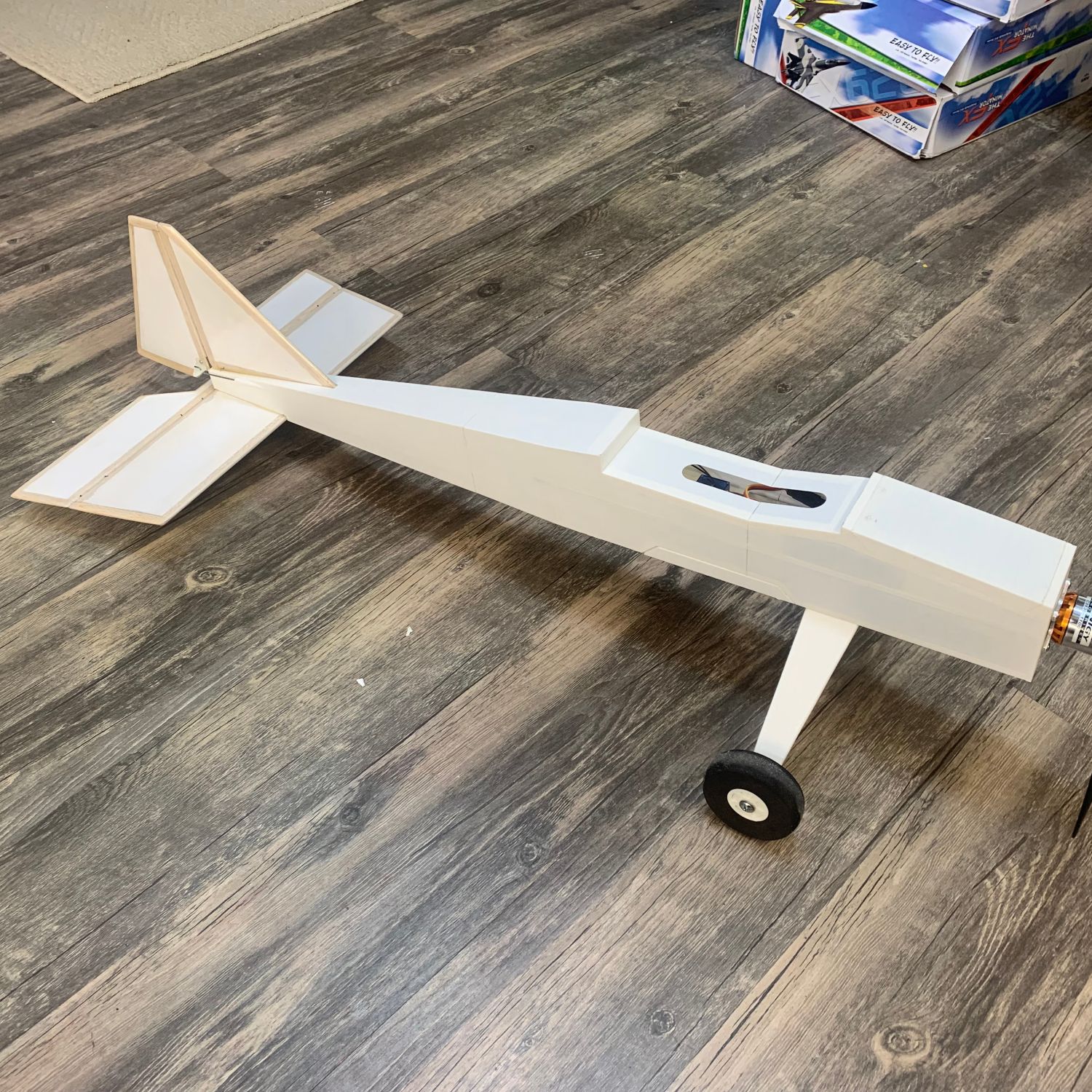

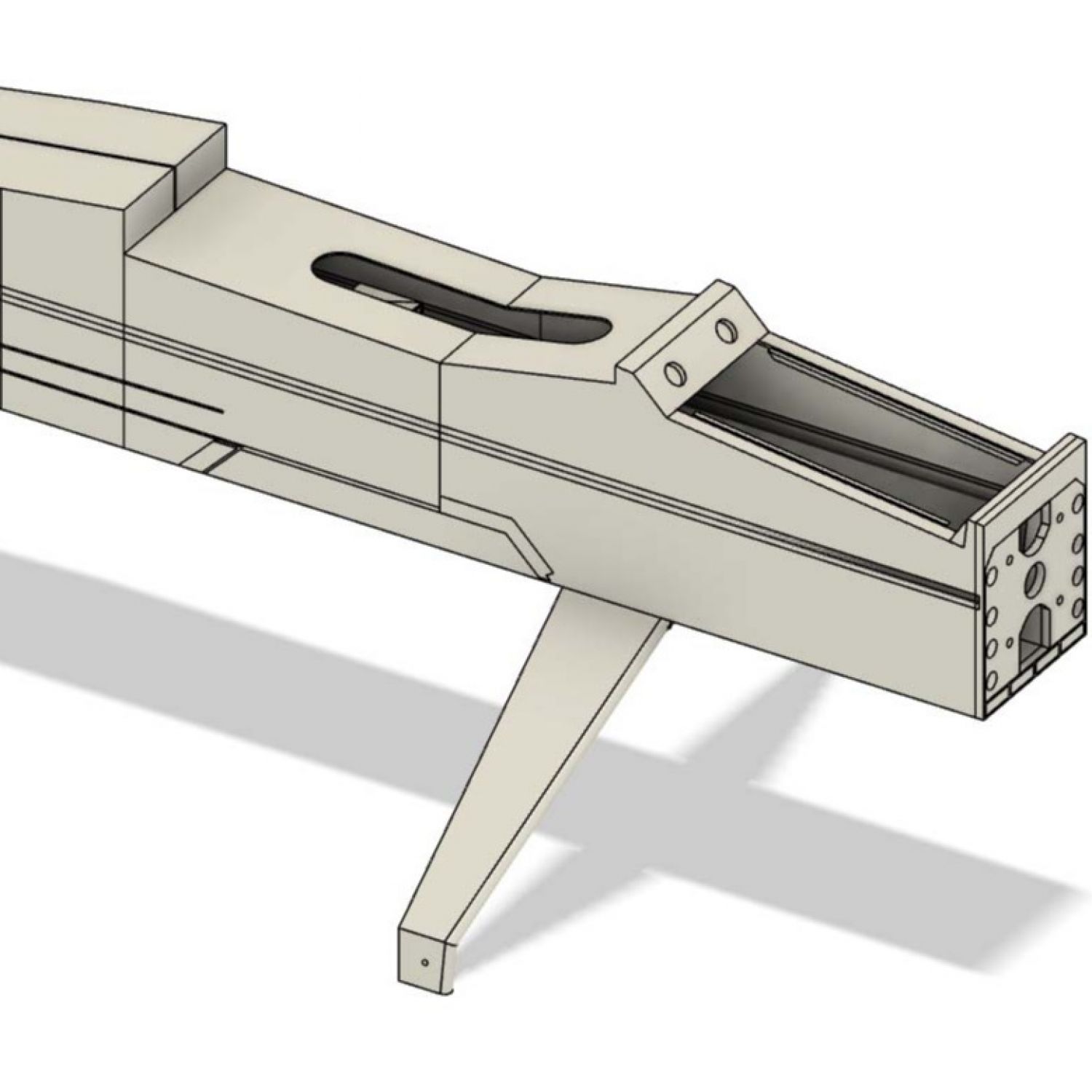

This is a Flite Test Simple Stick 3D Printed Fuselage.  The Fuselage is designed to be printed on a mid size Printer - 300mm X 300mm X 400mm. The files include the Fuselage - Front, Middle and Aft. Also included, are the main landing gear and a bracket for a steerable tailwheel. The fuselage is designed to fit any 35mm Diameter sized motor.  I have flown this with a 35-36 1100 and 1800KV motors. The fuselage tail section has an arrow shaft that joins the Aft and Mid sections together. The Front and Mid Sections are held together with 3mm X 500mm Carbon Fiber Rod. There are two Hatches. One on top  for the battery and one on the bottom for the 9G servos - not included.  The fuselage parts are printed from ABS, but can be printed from other material - PLA or PETG. The landing gear can be bolted with 6mm nylon bolts or glued. The wing is intended to be hot glued onto the fuselage. The hatches require 8mm X 2mm magnets for a total of 8.



The following settings are as follows for Simplify 3D printing ABS:



100 percent infill





Nozzle Diameter .40

Extrusion Multiplier .90

Extrusion width .42

Retraction distance .8

Extra Restart Distance .12

Retraction Vertical lift .20

Retraction Speed  1800mm/min

Coasting Distance .20

wipe distance 2.0



 Layers

 Primary Extruder

Top Solid Layers 3

Bottom Solid Layers 3

Side Solid Layers 2

Outline Direction - Inside Out



First Layer Height 90 %

First Layer Width 106 %

First Layer Speed  50 %



 Temperatures

 Extruder 255 degrees C

Bed Temperature 110 C



Speeds 3000mm/ min
