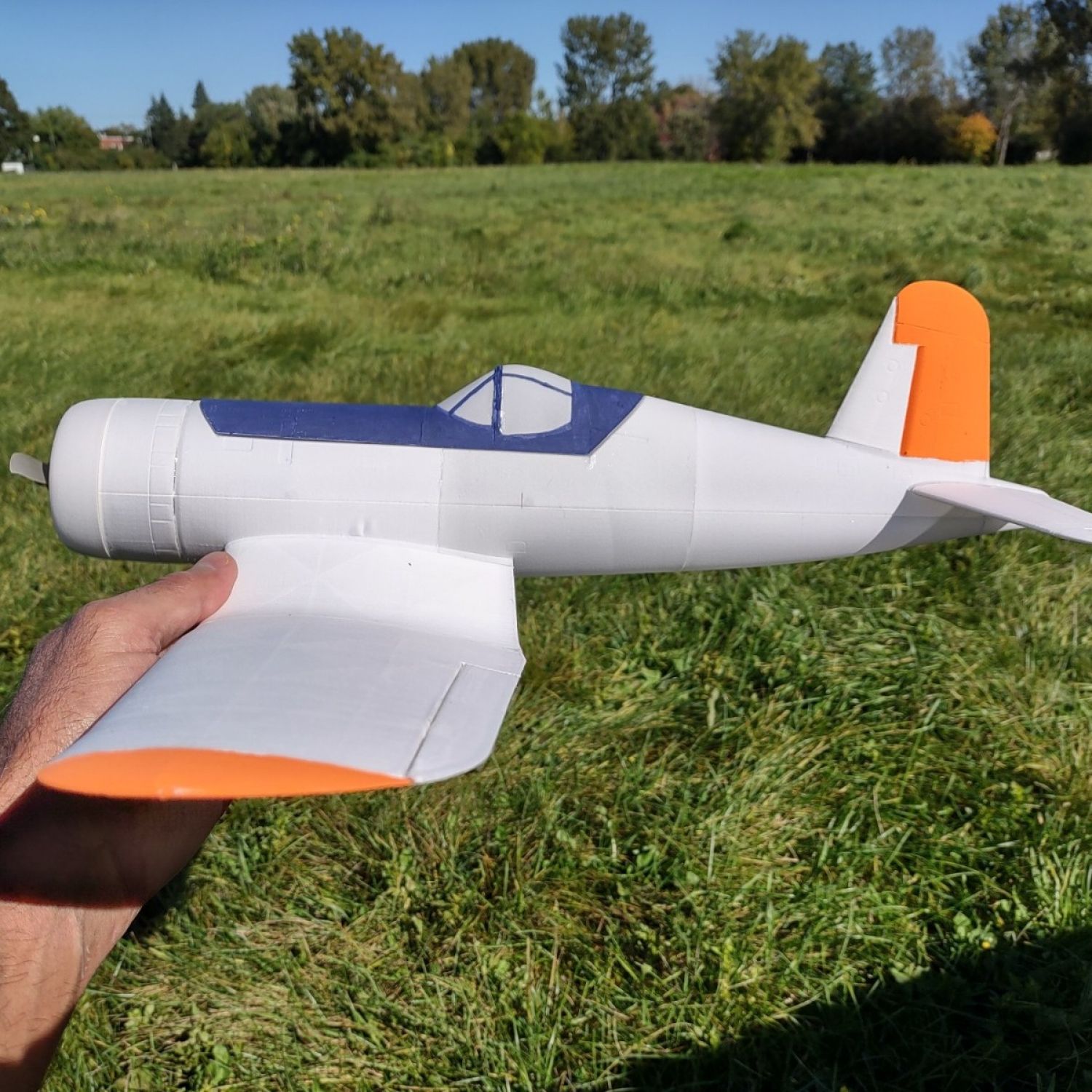

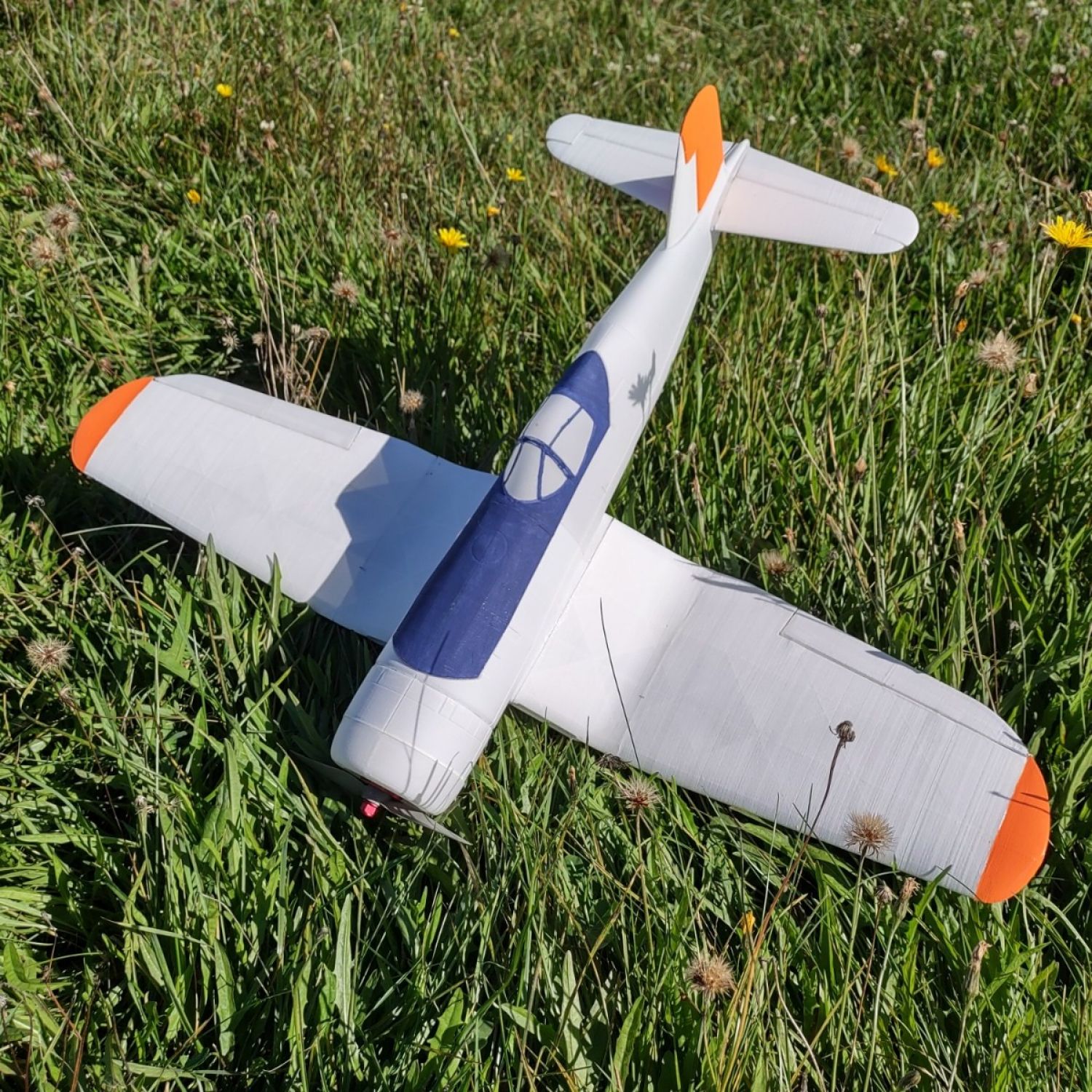

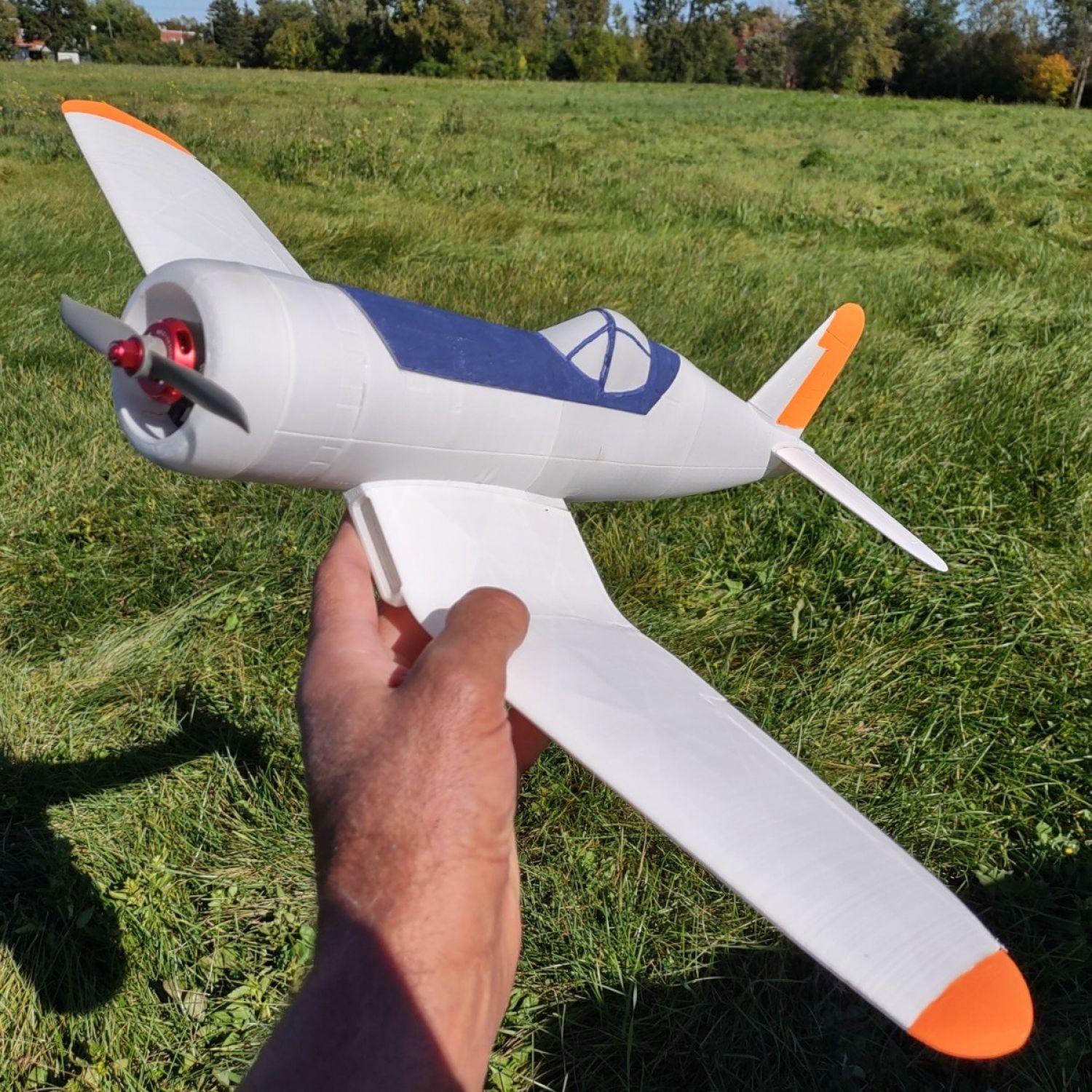

The Vought F4U Corsair is an American fighter aircraft with a distinctive inverted gull wing that saw service primarily in World War II and then the Korean War. Designed and initially manufactured by Chance Vought, the Corsair was soon in great demand.
This illustrious warbird sported the distinctive inverted gull wing allowing for a shorter landing gear to clear that huge 4 bladed prop. It reached fame levels after teething issues on carrier operations with a weak landing gear and that long nose hiding the deck on approach.
Note that a lighter 1806 2300Kv out-runner could also be used along with a 2S pack for an overall lighter bird.
• Factory files for Simplify3D
• Cura files
• STL files for all components
• Assembly manual and user guide• Sample markings
UPDATES:
2022-10-19: Added Cura files. Improved a number of factory files.
Version 2.0 (2022-09-26): This is a major update with many changes and improvements over the first iteration. Attention has been given to reduce the overall weight and improve ease of assembly. Here is a quick list of the changes:
- Fuselage is much lighter and more LW-PLA friendly.
- Carbon rods or 1.75mm filament to serve as stiffeners and for alignment when assembling the fuselage
- Locating pins on wings and fin
- Moved to 6x1.5mm disk magnets and added internal structures to support them
- Matching holes for 2mm carbon rods through the stab and fuselage
- New flat PLA spar to provide a much stiffer inverted gull wing
- Easier to install elevator with F4 split in two at the elevator torque rod
- Cowling reconfigured for easier installation of the motor and to move the flight battery forward
- Fixed horn location on ailerons
- Moved CG forward to 35mm
Version 2.0a (2022-09-28): Minor updates/corrections
- Added sacrificial support at the root of the wing on FF2
- Added wing root stiffener on FF2
- Thicker FF2, lighter FF4 and FF5 in factory file
UPDATES:
2022-10-19: Added Cura files. Improved a number of factory files.
Version 2.0 (2022-09-26): This is a major update with many changes and improvements over the first iteration. Attention has been given to reduce the overall weight and improve ease of assembly. Here is a quick list of the changes:
- Fuselage is much lighter and more LW-PLA friendly.
- Carbon rods or 1.75mm filament to serve as stiffeners and for alignment when assembling the fuselage
- Locating pins on wings and fin
- Moved to 6x1.5mm disk magnets and added internal structures to support them
- Matching holes for 2mm carbon rods through the stab and fuselage
- New flat PLA spar to provide a much stiffer inverted gull wing
- Easier to install elevator with F4 split in two at the elevator torque rod
- Cowling reconfigured for easier installation of the motor and to move the flight battery forward
- Fixed horn location on ailerons
- Moved CG forward to 35mm
Version 2.0a (2022-09-28): Minor updates/corrections
- Added sacrificial support at the root of the wing on FF2
- Added wing root stiffener on FF2
- Thicker FF2, lighter FF4 and FF5 in factory file
FLIGHT VIDEO:
2021-05-18 Video of that 1st short flight on v1 version: https://youtu.be/EgQeBOVNXh4
2022-10-06 Prototype v2: https://youtu.be/-s496rc7AY8
2021-05-18 Video of that 1st short flight on v1 version: https://youtu.be/EgQeBOVNXh4
2022-10-06 Prototype v2: https://youtu.be/-s496rc7AY8
Print time: 85hrs
Print weight: 125g
RTF AUW: 280g with 3x3.7g servos, 2205 2300Kv, 3S 550mAh.
REQUIRED COMPONENTS:
X1 2205/2804 2300Kv Motor (or 1804 2300Kv on 2S for light setup)
X1 20AMP ESC
X1 500MAH 3S LIPO (or similar)
X3 3.7G Micro Servo (X4 if installing working rudder)
X1 4ch+ Micro Receiver
X1 3x 500mm 1.5mm carbon rods (or 1.75mm filament)
X1 2mm carbon rod/round toothpicks (stab joiners)
X1 1mm Music Wire (pushrods and elevator torque rods)
X4 6x1.5mm Magnets (cylinder shape)
X4 M2x10mm screws (fix the motor mount to firewall)
CA Hinge Sheet
Velcro (sticky back)
Some extra 1.75mm PLA filament (locating pins and fuselage stiffeners)
OPTIONS
- Parts are provided to install a functional rudder
- A 2 or 4 bladed hub with printed propellers or simply use 2-bladed APC style prop
https://www.rcgroups.com/forums/showthread.php?3810693-F4U-1A-Corsair-600mm-LW-PLA
