£12.50

Inclusive All Taxes

Description

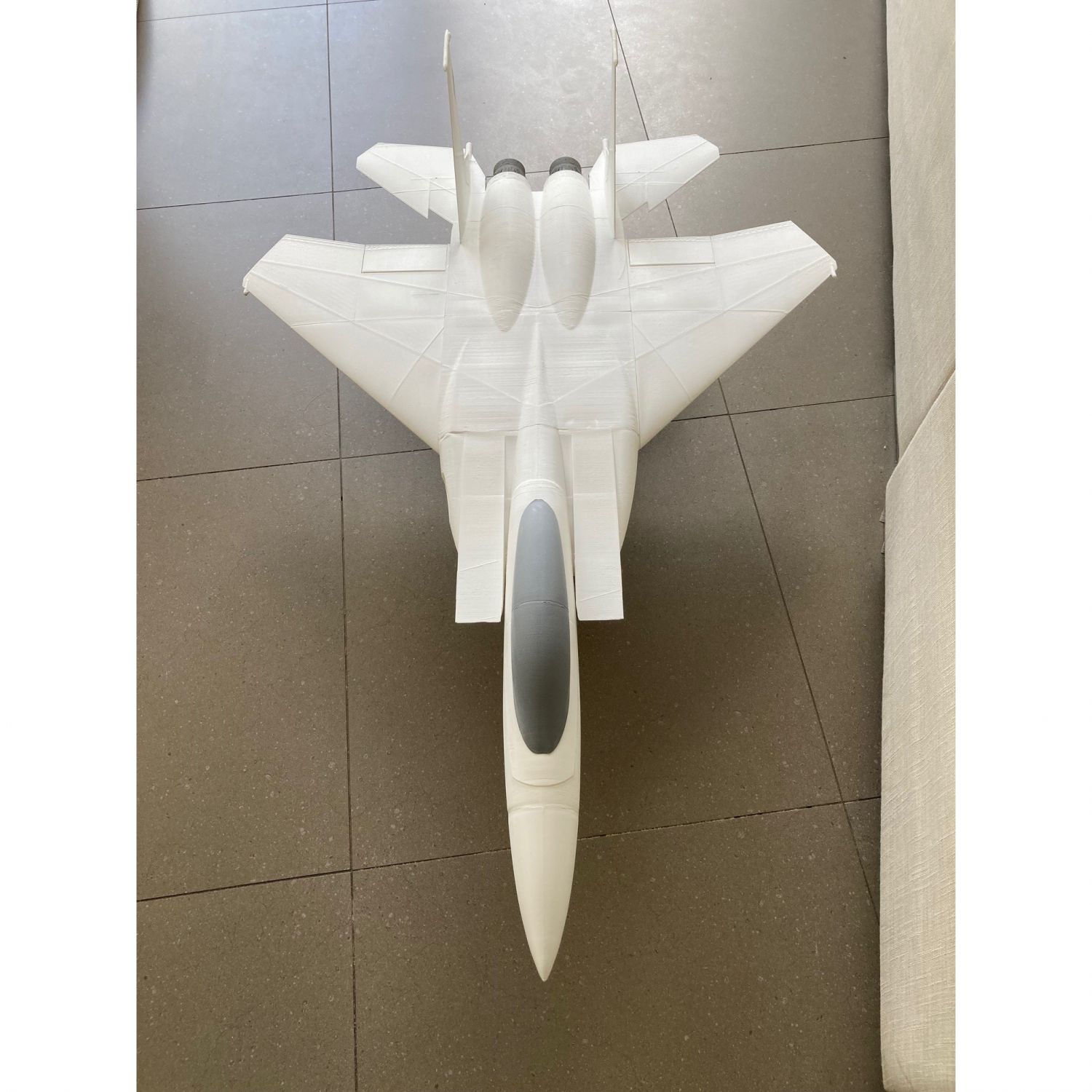

This is a flyable 800mm span Radio Control (RC) rendition of the F-15D Eagle for twin 50mm Electric Ducted Fans (EDF). It is intended to be printed in LW-PLA.

Specifications:

- Span: 800mm
- Length: 1175mm
- Weight: 1481g
- Engine thrust: 1800g (without losses)
- RC Channels: 3-7
- Flight battery: 4S 3000mAh 40C Lipo
- CG: 113.6mm from LE
- MH-43 wing airfoil with 1 degree washout
- Easily painted canopy, nose cone
- 250mm carbon strip top/bottom wing spars
- 4mm carbon tube taileron axle
- Reinforced tail bearings
- Full flying horizontal stabilizer- tailerons
- Flaperons
- Bungee hook position

Additional parts needed:
- RC gear, EDF units
- 4x200mm 1mm piano wire pushrod
- 329mm 3x1mm carbon top spar pultruded strip (x2)
- 460mm 3x1mm carbon bottom spar pultruded strip (x2)
- 110mm OD4mmxID2mm carbon taileron axle pultruded tube (x2)
- Velcro J/O
- 2x40A esc or above
- 2x22g analogue/ digital servos (tailerons) + 2x 9-13g servos (flaperons)
- 2x10mm dia.’ magnets for hatch
- Thin CA type hinges or Dubro micro hinges
- 10-12 gauge silicone flex wire extensions if needed

I used BEC (battery elimanator circuit) in mine to power the RC gear

Features to come:
- Strike Eagle package (conformal tanks)
- Drop tanks, ordnance
- Vent, cooling, airbrake super details
- Investigate drooping intakes

CAD construction video here: https://www.youtube.com/watch?v=GYt3EKBaDog

RCG Support: https://www.rcgroups.com/forums/showthread.php?4007205-800mm-F-15D-Eagle-twin-50mm-EDF

I hope you like this creation and may also be interested in its cousin 3D printed F-22 Raptor
