Description

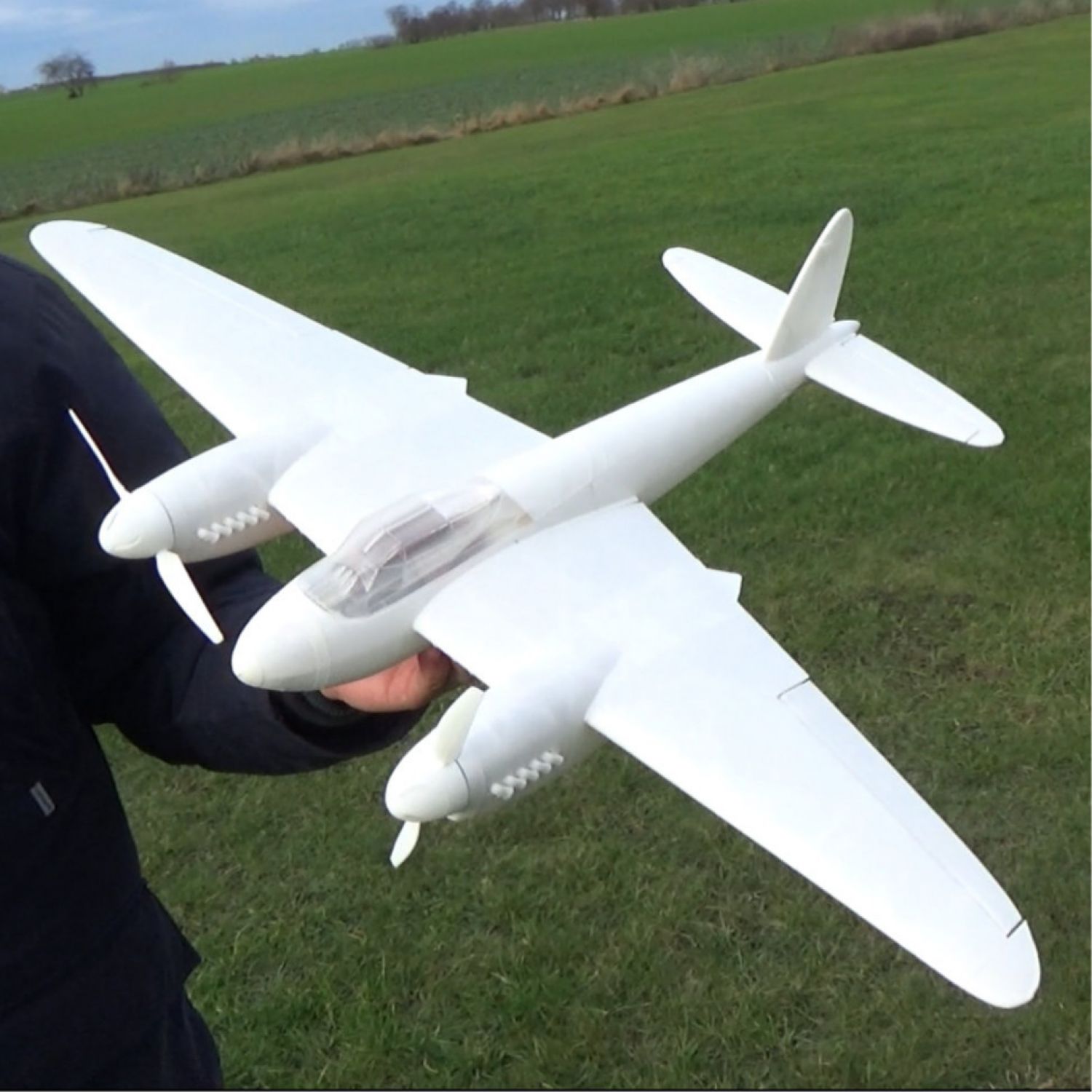

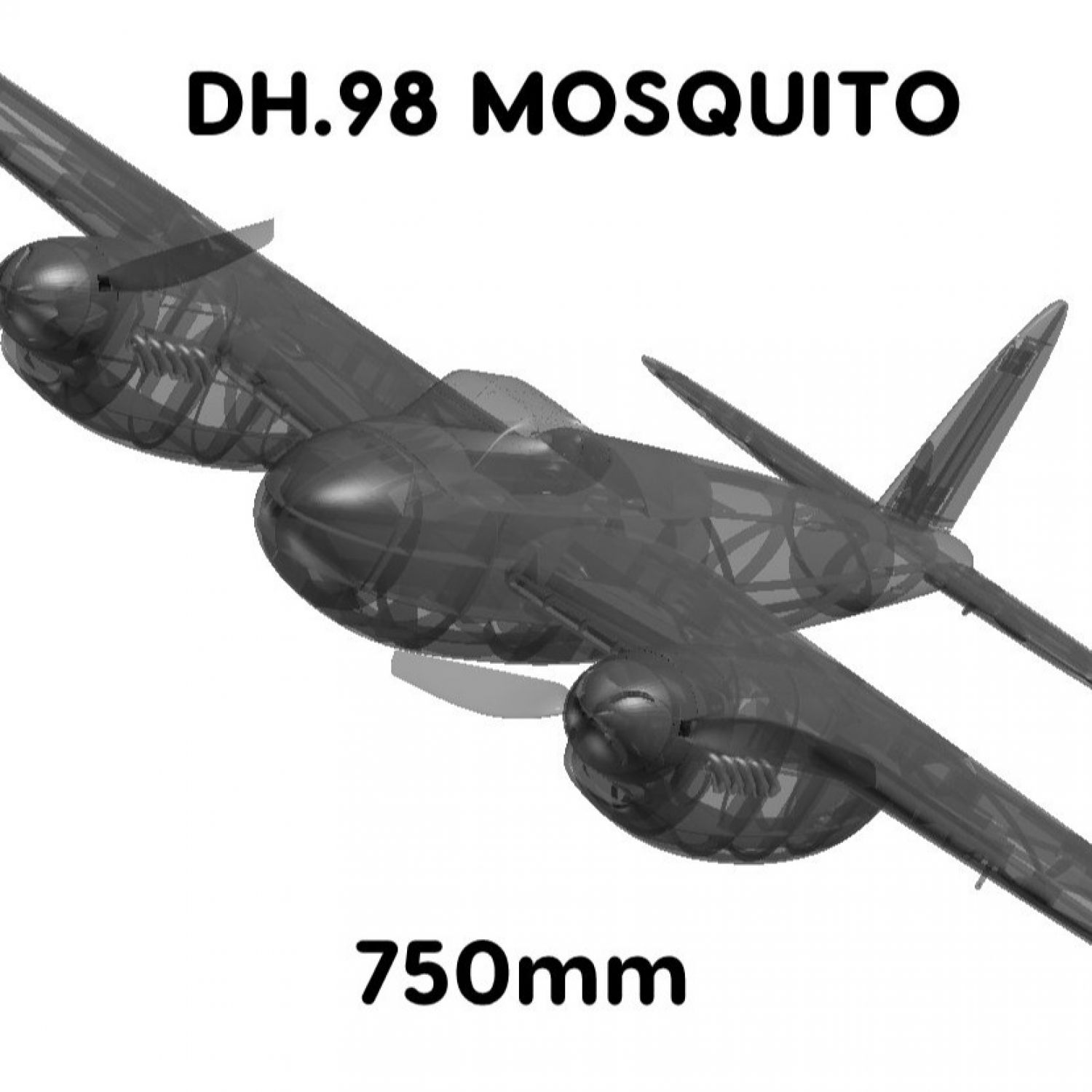

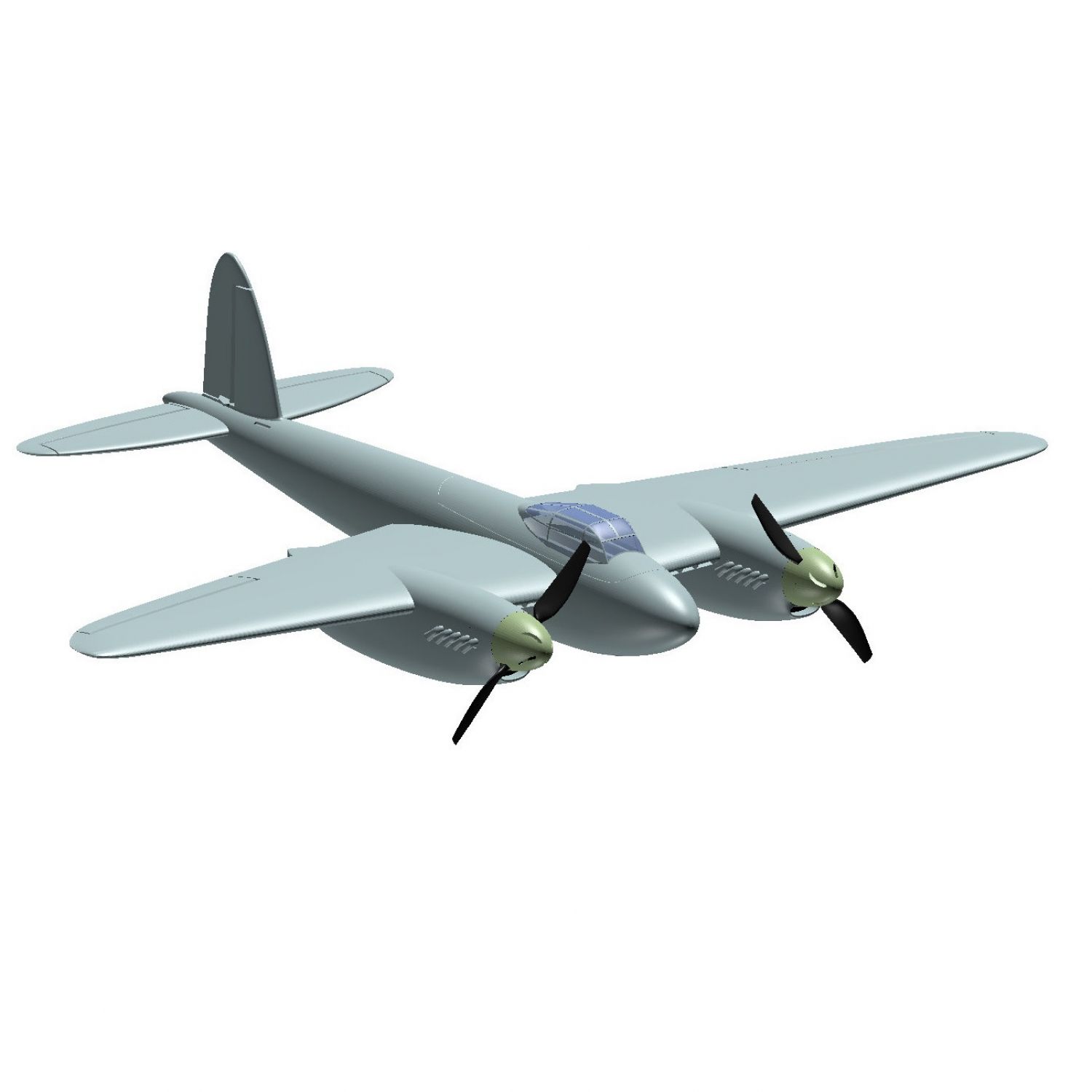

This replica of the de Havilland Mosquito is designed for quick and easy construction and printed using lightweight PLA (LW-PLA). Designed to suit the 2305 brushless outrunner motor, this model has an incredible amount of power and is happy to cruise around at 30% power thanks to its lightweight yet sturdy construction. Utilizing 4 channel controls; aileron, elevator, rudder and throttle, this model is easy to handle and fully capable of scale aerobatics. Links to components used can be found on the last page of the user guide.
Free download of sample parts, instruction manual, settings guide and parts list HERE
GENERAL SPECIFICATIONS:

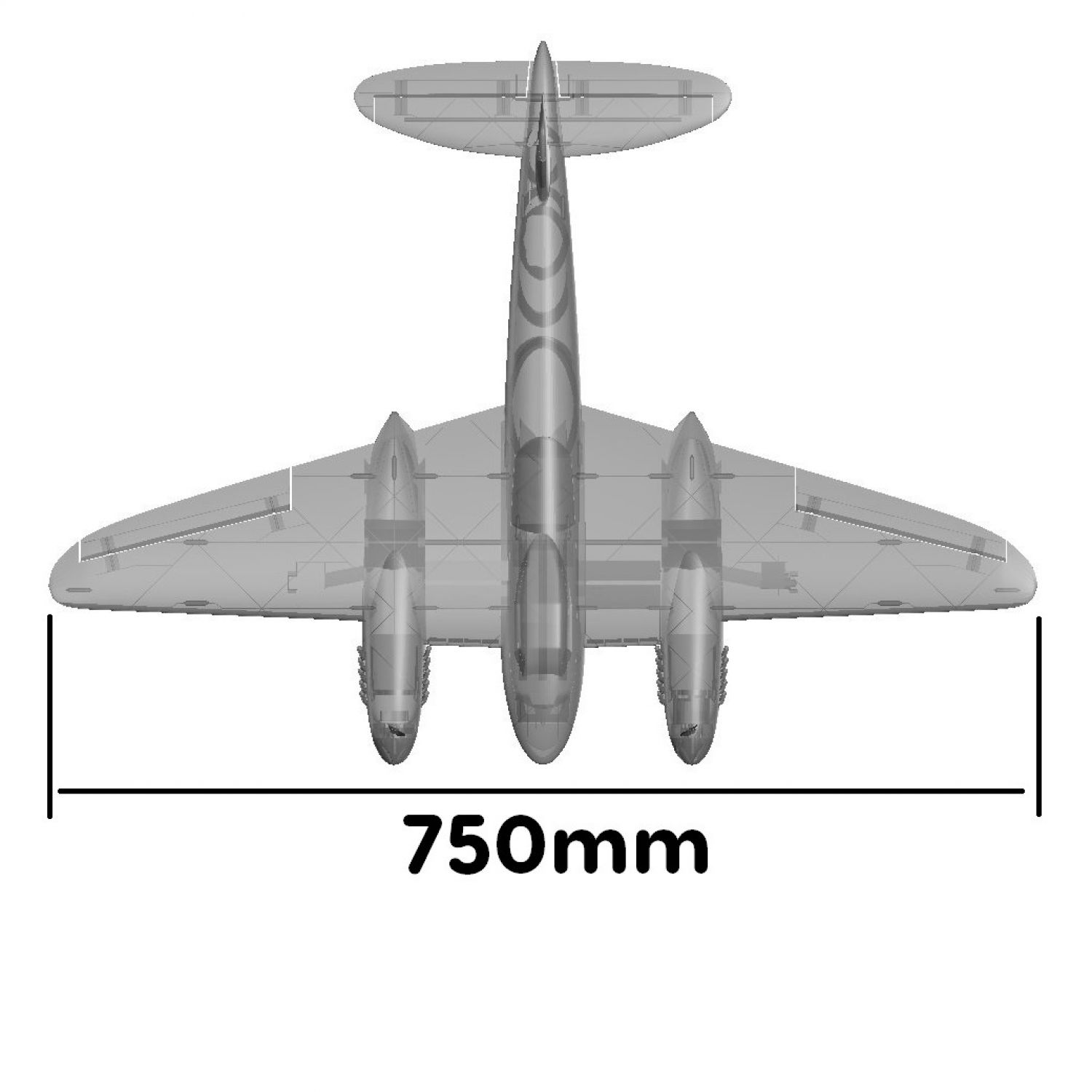

WINGSPAN: 750mm
PRINT WEIGHT: 220g
FLYING WEIGHT: 500g
ELECTRICS:
MOTOR: 2205 2300kv (x1 cw, x1 ccw)
ESC: 15amp ESC
SERVOS: 3.7g MICRO
BATTERY: 1500mah 2s 20c (74g)
Included with this file:
- Factory files for Simplify 3d
- STL files for all components
- G-code files for all parts
- Cura profiles for LW-PLA and regular PLA
- Detailed assembly manual and user guide
- Print settings guide for all parts
- part orientation images
REQUIRED COMPONENTS:
X2 2205 2300kv motors (x1 cw, x1 ccw)X2 15AMP ESC
X1 1500mah 2S LIPO OR SIMILAR (74g)
X4 3.7g Micro servo
X2 10x10x2mm MAGNET (ROUND)
X2 Y-lead servo wire leads
3mm heat shrink tube (100mm)
1mm piano wire
VELCRO
M2 screws
3mm BAMBOO FOOD SKEWERS
MINIMUM BUILD VOLUME: 200mm x 200mm x 200m
