Description

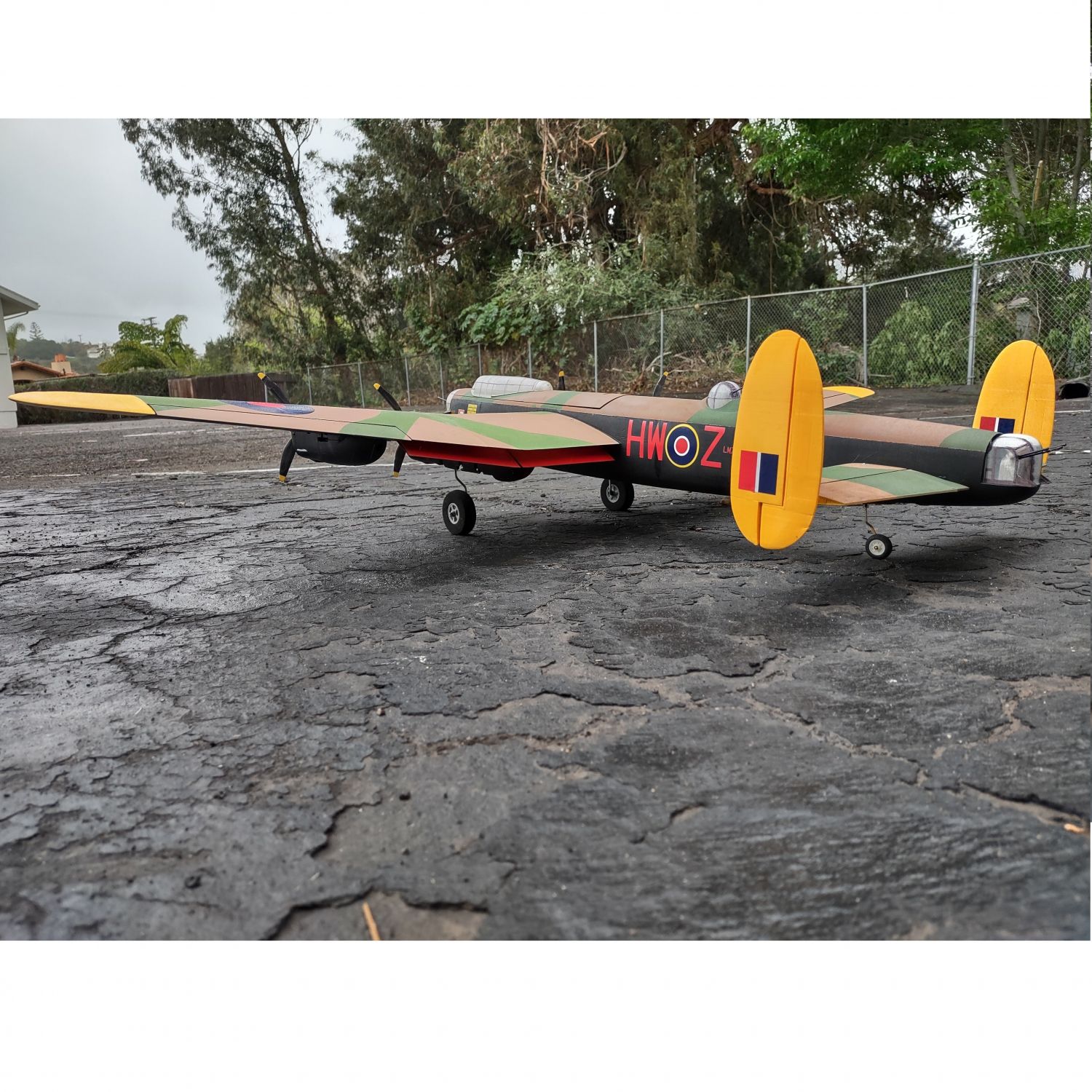

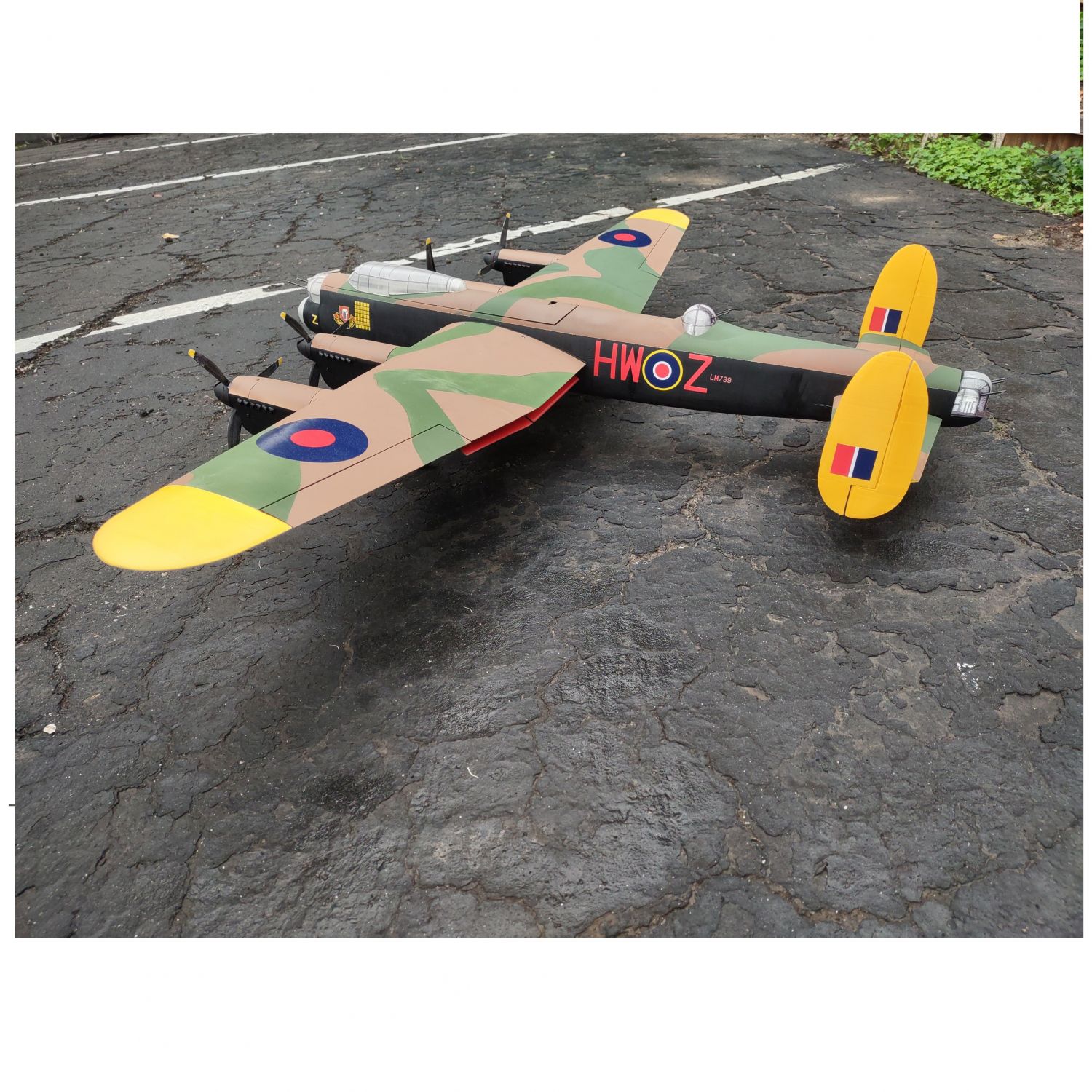

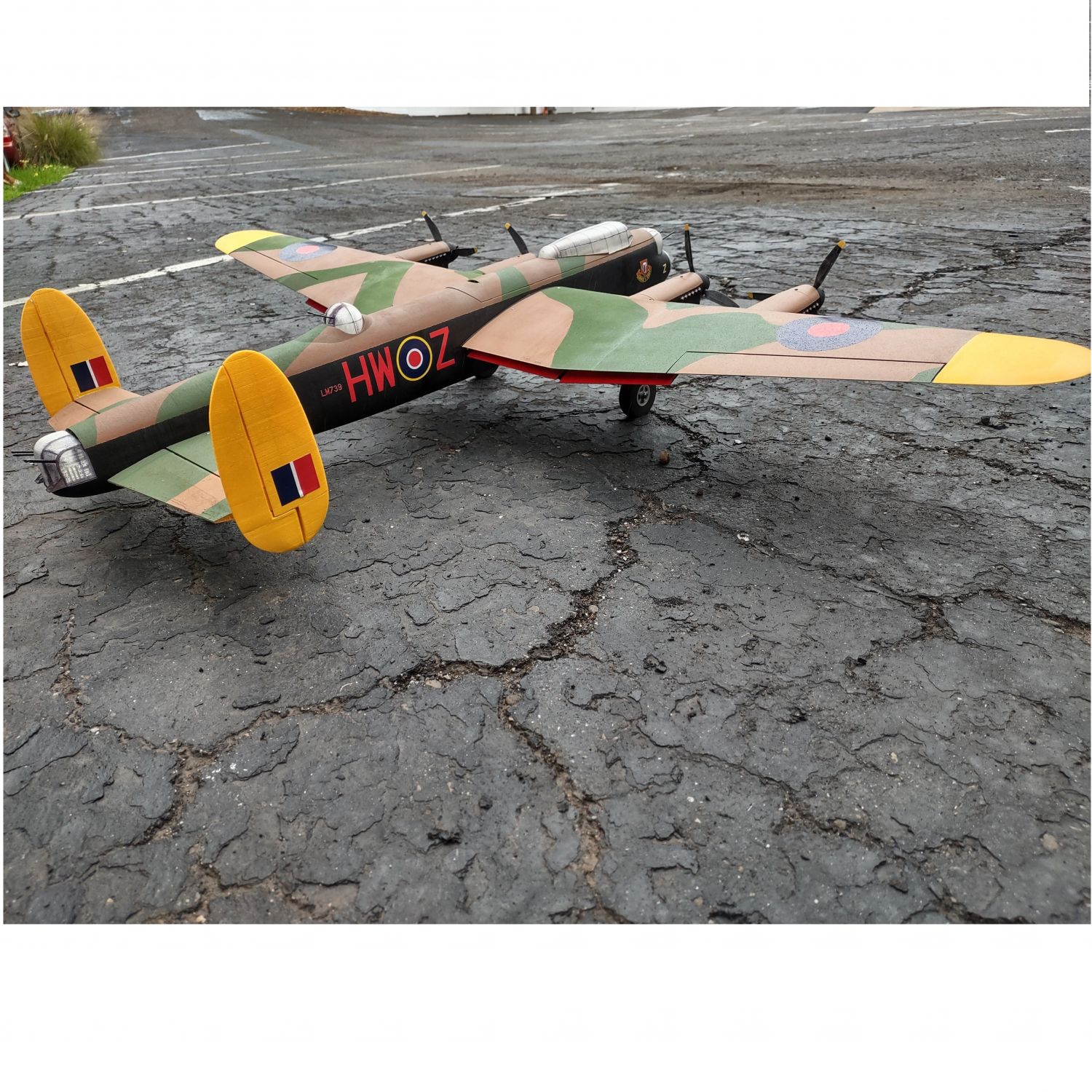

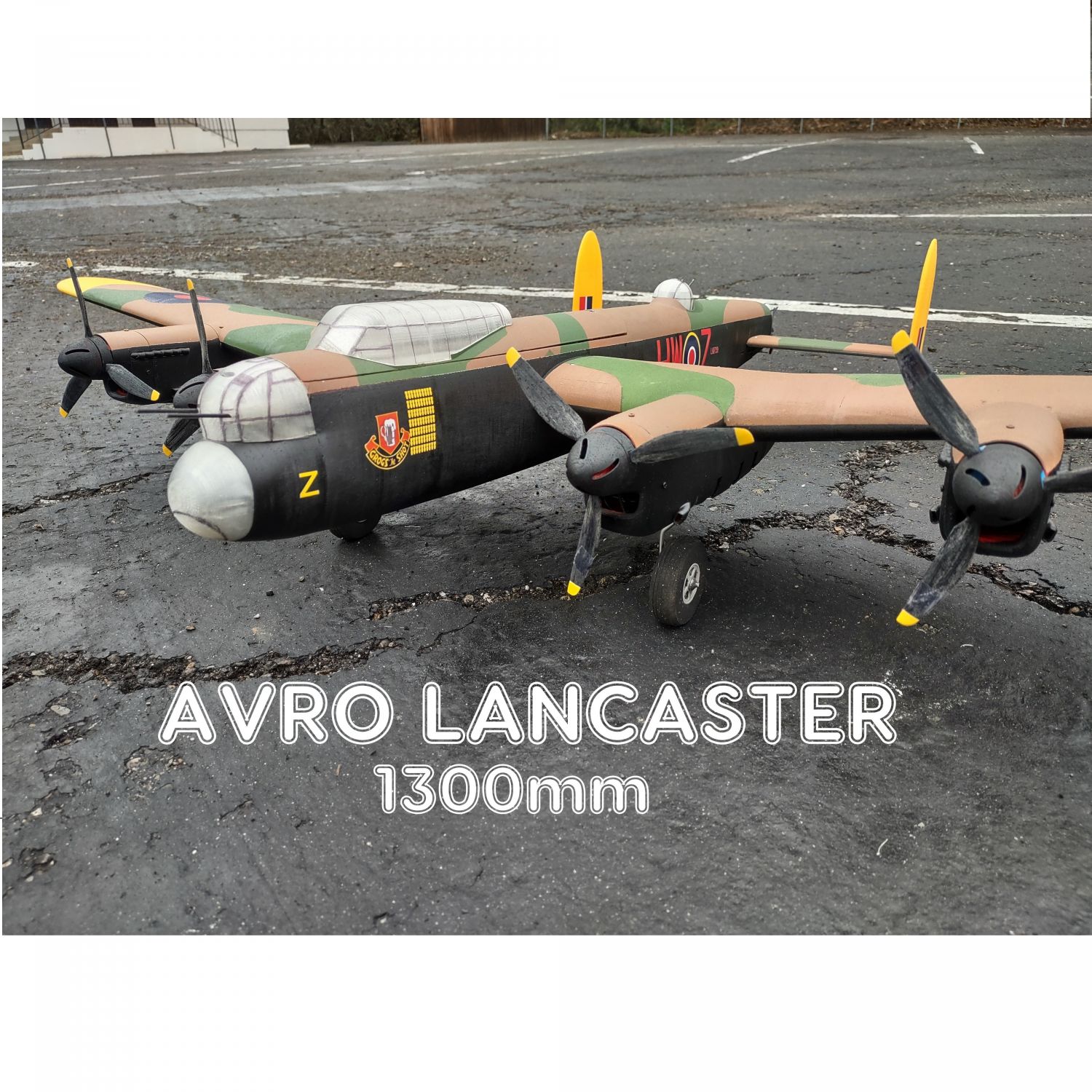

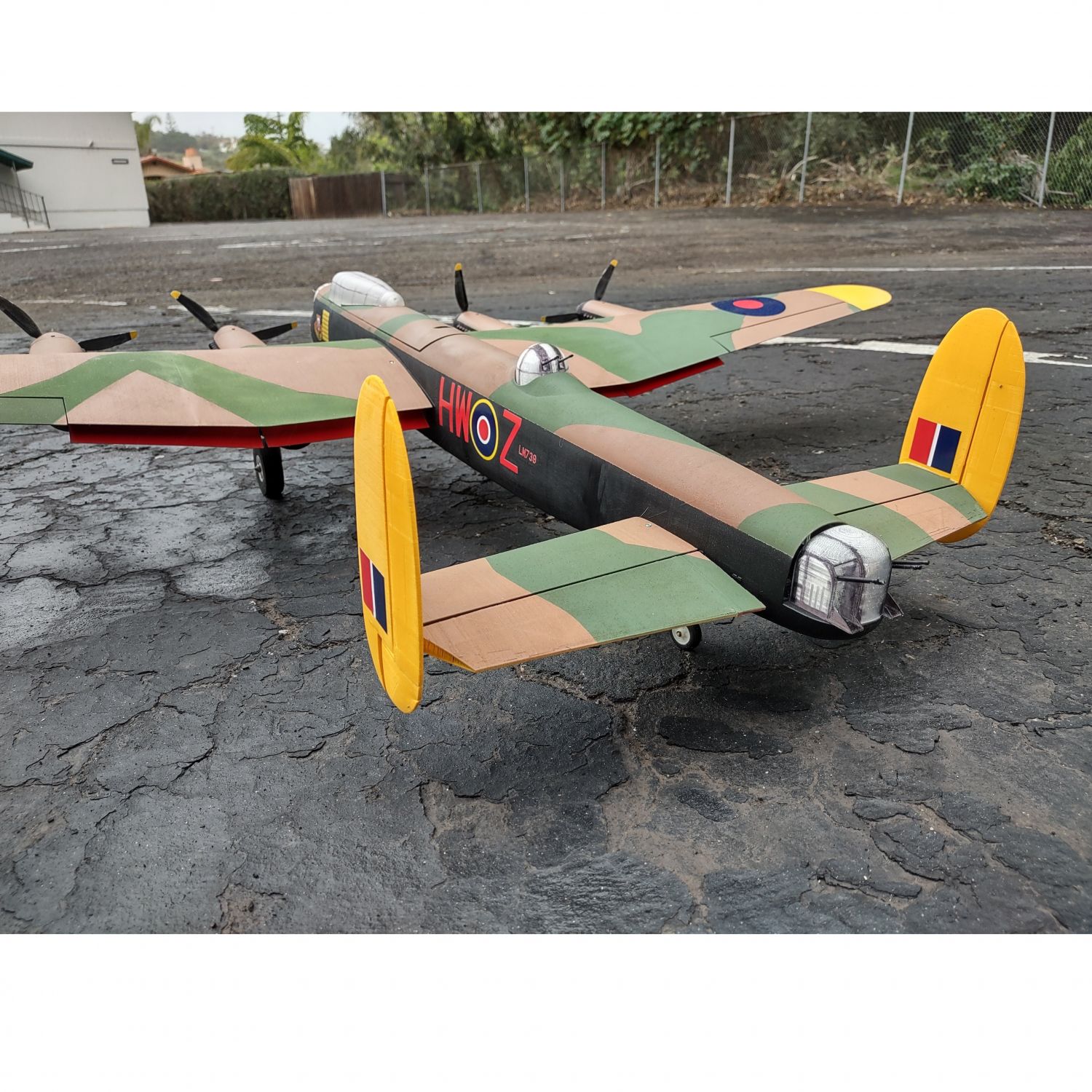

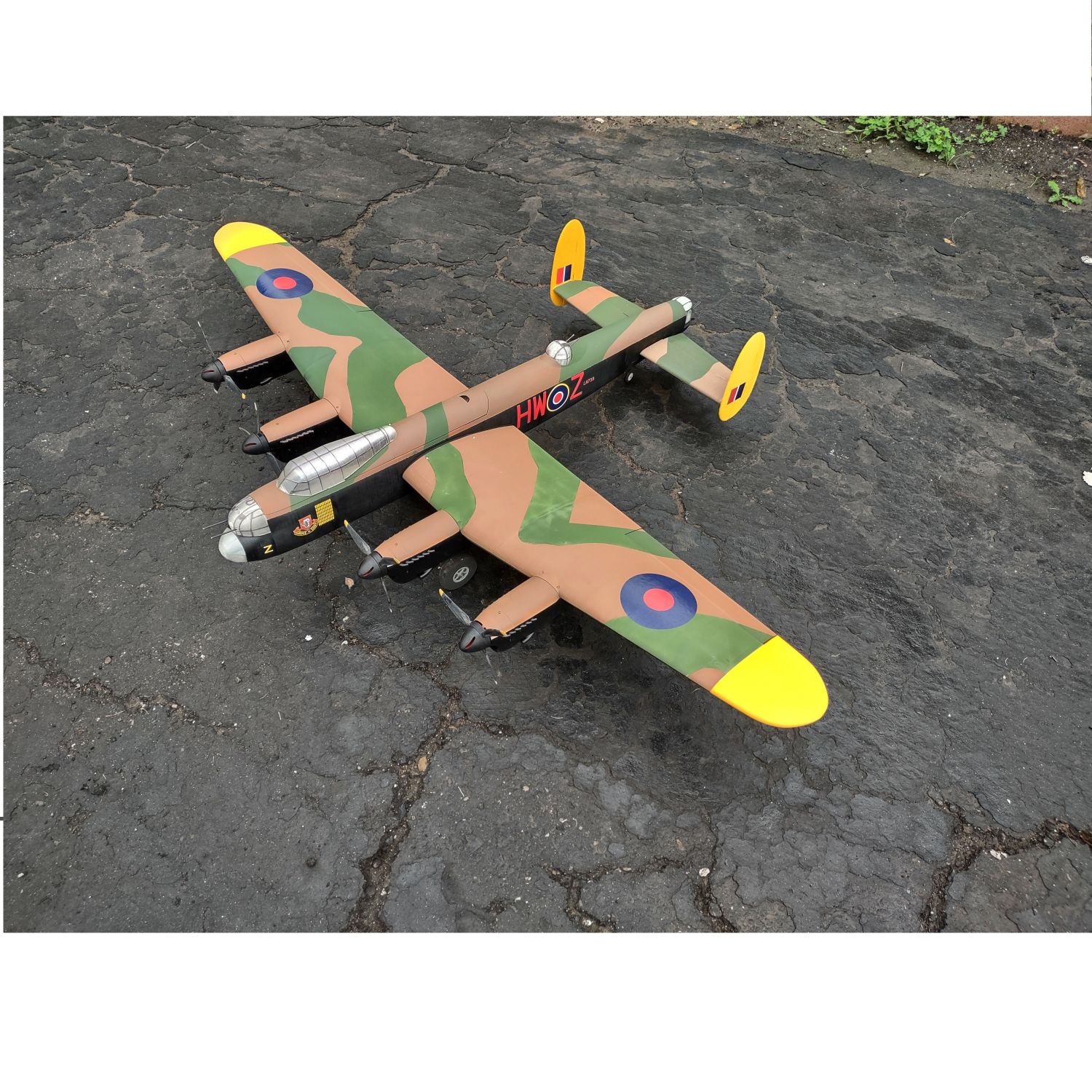

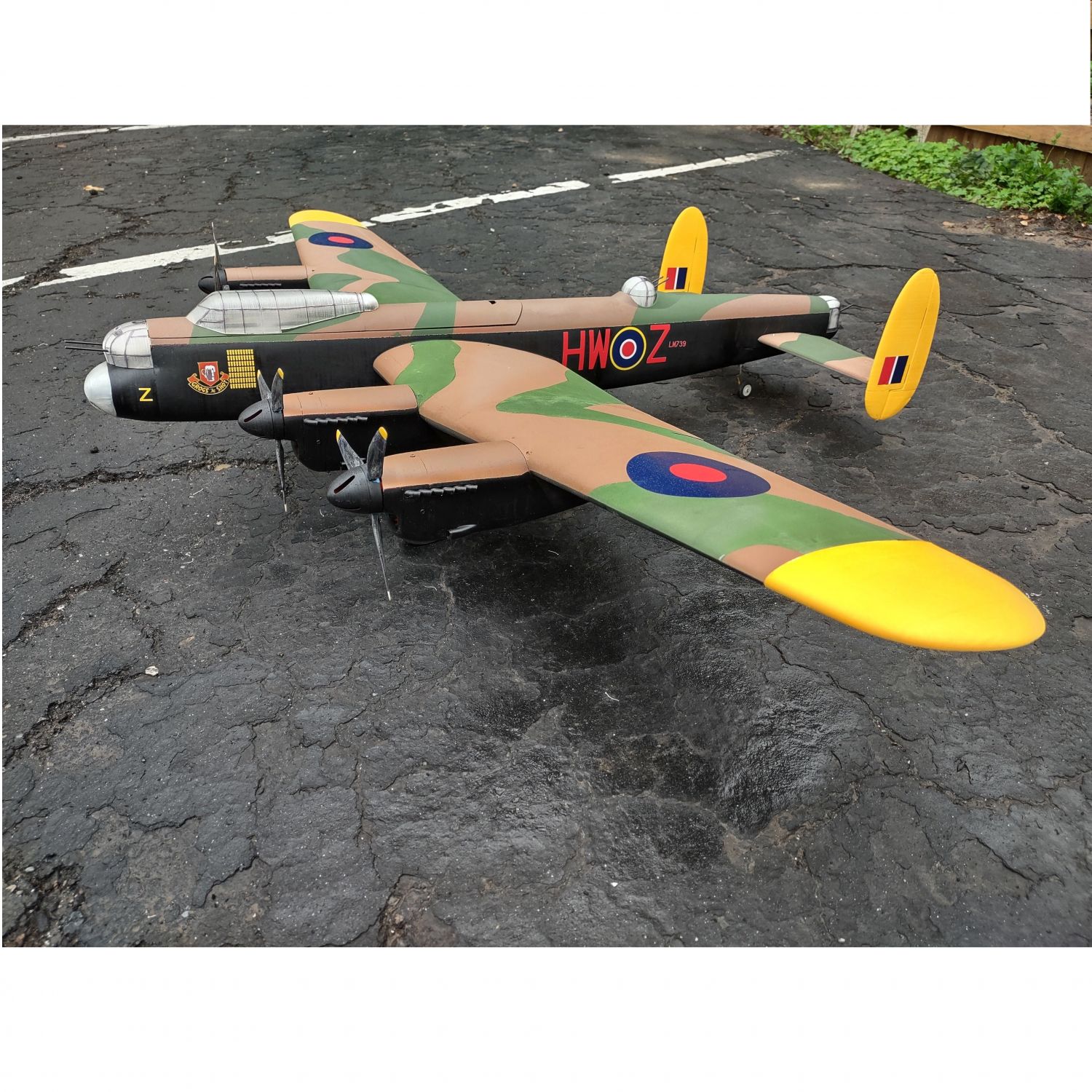

This replica of the Avro Lancaster is designed to be printed using
regular PLA and lightweight PLA (LW-PLA). Designed to suit the 2305
2300kv brushless outrunner motors. Utilizing 6 channel controls;
Aileron, Elevator, Throttle, Rudder, Flaps and Retractable landing gear
this model sets the stage for a very scale experience. Links to
components used can be found on the last page of the user guide.
GENERAL SPECIFICATIONS:
WINGSPAN: 1300mm
PRINT WEIGHT: 950g
FLYING WEIGHT: 1750g
ELECTRICS:
MOTOR: x4 2205 2300kv brushless outrunner
ESC: x4 15 - 20 amp esc
SERVOS: x6 9g servos
BATTERY: 3000mah 2s
RETRACTS: 2kg servoless retracts
Included with this file:
- Factory files for Simplify 3d
- STL files for all components
- G-code files for all parts
- Cura profiles for LW-PLA and regular PLA
- Detailed assembly manual and user guide
- Print settings guide for all parts
- part orientation images
REQUIRED COMPONENTS:
X4 2205 2300kv motor
X4 15 - 20AMP ESCX1 3000mah 2s
X6 9g servo
X2 2kg servoless retracts
X6 16x29mm nylon hinges
X1 2mm steel rod (150mm)
X1 1.2mm steel rod (500mm)
X5 1mm steel rod (300mm)
X4 10x10x2mm MAGNET (ROUND)
X1 10x8x500mm round carbon tube
X2 6x4x500mm round carbon tube
X1 5mm wooden dowel (420mm)
X4 3x500mm round carbon rod
X1 3x3x500mm square carbon tube
X1 6mm wooden dowel (500mm)
X4 Spring (0.4x3x10mm) - main gear door
tensioner and tail wheel steering
X2 Foam wheel (50mm diameter)
X1 Foam wheel (20-25mm diameter)
Braided nylon fishing line (20lbs)
VELCRO
M2 screws (20mm, 14mm, 12mm, 10mm,
8mm, 6mm)
3mm BAMBOO FOOD SKEWERS
MINIMUM BUILD VOLUME: 200mm x 200mm x 200m
